IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
Description
LIB ipx4 test equipment simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. Ipx4 test chamberis widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
Advantage
The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted
Main Technical Parameter
| Name | IPX4 Test Equipment |
| Model | R-800 |
| Internal dimensions (mm) | 800*800*800 |
| Overall dimensions (mm) | 1020*1360*1560 |
| Oscillating tube radius | 400mm(IPX1 IPX2) |
| Spraying hole diameter | φ0.4mm(IPX1 IPX2) |
| Hole spacing | 50 mm |
| Oscillating tube range | ±45°, ±60°, ±90°, ±180°(theoretical value) (IPX3 IPX4) |
| Turntable rotation speed | 1r/min, or steeples speed regulating (optional) |
| Controller | Programmable color display touch screen controller, PC Link with software, R-232 interface |
| Water pressure control | Flow meter |
| Observation window | Large viewing window with wiper |
| Water supply system | Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving |
| Safety protection device | Electric leakage, short circuit, motor overheating, over-current protection |
| Exterior material | Steel Plate with protective coating |
| Interior material | SUS304 stainless steel |
| Power | AC380V 50HZ |
| Standard | IEC 60529 |
IP Laboratory
LIB can set up a professional IP IEC60529 laboratory, Provide high quality water and dust test equipment,and provide transport, installation, training, after-sales services
 |
|

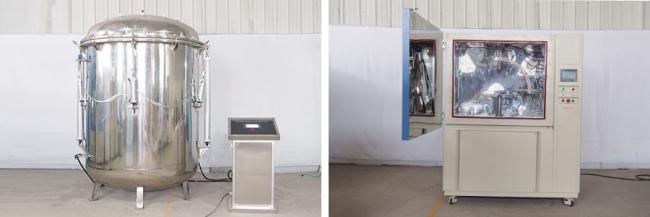

| IPX1 IPX2 IPX3 IPX4 Water Ingress Test Equipment | IPX5 IPX6 Water Jetting Test Device |
 |
|
| IPX7 IPX8 Water Immersion Tank | IPX9K High Pressure Water Test Device |
Service
1. Best after sales service: 3 year free parts maintenance
2. Customization is available & welcomed
