IEC 60529 IPX9k Test Equipment SS304 Stainless Steel Material
IEC 60529 IPX9k Equipment
Description
IEC 60529 IPX9k equipment is used to verify the protective performance of the Passenger vechiles, buses, lamps, motorcycles and other parts and components under high pressure and temperature water jetting at degree IPX9 (IPX9K)..
●High pressure test
●high temperature test
Technical Specification
|
Model |
R9K-1200 |
| Name | IEC 60529 IPX9k Equipment |
|
Internal dimensions (mm) |
1000*1200*1000 D*W*H |
|
Overall dimensions (mm) |
1250* 1700* 2050 D*W*H |
|
Water Spray Temperature |
ambient ~ 88℃ (Adjustable) |
|
Water Spray Angle |
0°,30°,60°,90° |
|
Spray Nozzle |
Four, 30 seconds each position |
|
Spray Range |
30° ± 5°(Single hole); Space 100-150mm |
|
Distance from water spraying to specimens |
10~15cm |
|
Water Pressure |
8000-10000 Kpa (adjustabl) |
|
Water Flow Rate |
14L-16L/min |
|
Testing Platform Speed |
5 ±1 r.p.m |
|
Test Platform height |
200-450mm, adjustable |
|
Test Platform diameters |
600mm |
|
Load |
≤100kg |
|
Controller |
Programmable color LCD touch screen controller |
|
|
PC Link with software, RS-232 interface |
|
Pressure meter Alarm function |
Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function |
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class |
|
Heater |
Nichrome heater |
|
Interior material |
SUS304 stainless steel |
|
Exterior material |
Steel Plate with protective coating |
|
Power Supply |
380V 50HZ, Three-phase five-wire |
|
Operating environment |
Grading, no corrosive gas, avoid direct sunlight ; Temperature: +5~+35 C; Humidity: 45～85％RH |
Characteristic
 |
|

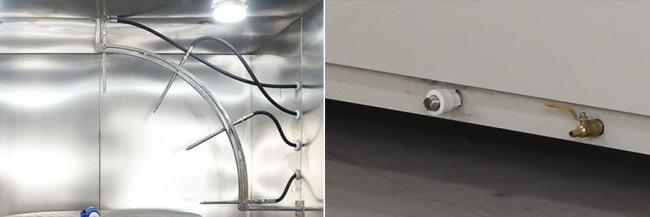

| Workroom 90 ° Angle with 4 pieces circular sprayer, Corresponding with standards. |
Automatic water intake We are equipped with automatic water intake and water filtration system |
 |
|
|

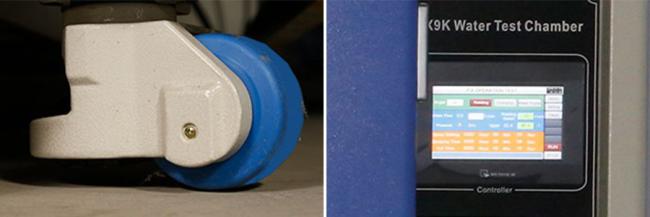

Castor |
Controller Spaying flow,pressure ano temperature are programmable in Controller. |
Feature
1. The outer chamber of the ipx9k test chamber is made of high quality stainless steel, and the inner chamber and the turntable are all made of SUS304 stainless steel, which has high corrosion resistance.
2. There are 4 nozzles for the equipment, the nozzle angle is 0°, 30°, 60°, 90°, and the distance is 100-200mm.
3. Color touch screen + Panasonic PLC system, the sample can also be controlled by the system, and the remote control function is added.
4. ipx9k waterproof certified chamber test temperature is up to 80°C, High pressure test
5. ipx9k waterproof chamber equip inside water tank, cycling use of water.
