800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
Description
The IPX5 and IPX6 tests are made by spraying the enclosure from all practicable directions with a stream of water from standard test nozzles, the test nozzles (hose nozzles) with Φ6.3mm and Φ12.5mm diameter.

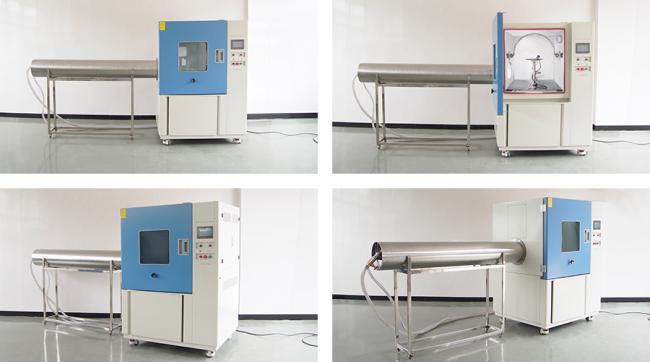

IPX5 and IPX6 water ingress protection testing equipment is consisted by test tunnel and test chamber.

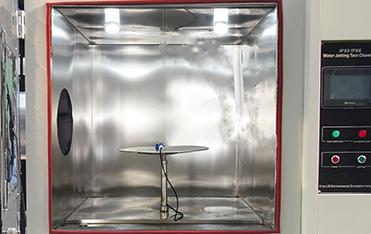

Test nozzles are placed at the test tunnel with a distance of 2.5m from the center of the turntable, the turntable is inside the test chamber, the test nozzles can swing up and down to spray the enclosure from all practicable directions automatically.
Technical Specification
| Model |
IPX5 Test Equipment |
| Standard | IEC60529(IPX5 Test,IPX6 Test) |
| Workroom dimension (mm) | 800*800*800 D*W*H |
| External dimension (mm) |
950*3150*1800D*W*H
|
| Diameter of Turntable (mm) |
600
|
| Internal Diameter of IPX5 Nozzle | 6.3mm |
| Internal Diameter of IPX6 Nozzle | 12.5mm |
| Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
| Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
| Standard | IEC 60529, ISO20653 |
Details
 |
 |
| IPX5 water test equipment is controlled by PLC and touch screen | IPX5 Water Test Equipment is made of stainless steel and can be customized |
Test Requirement
IPx5 ipx6 test equipmen rate is 12.5L/min±5% for IPX5 test and 100L/min±5% for IPX6 test,
