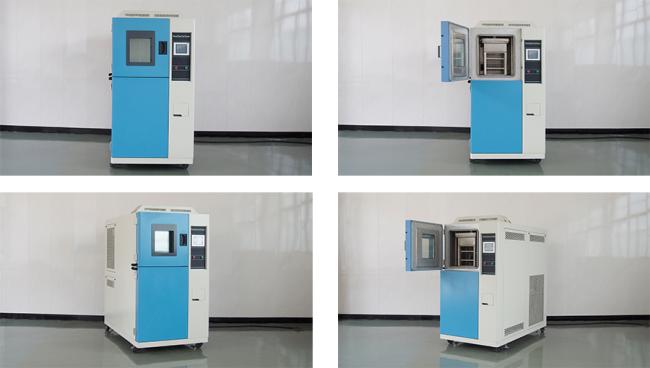

2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
Description
2-Zone Thermal Shock Chambers from ATMARS consist of two separately controlled hot and cold zones (one atop the other) with product being transferred vertically by a pneumatic basket for rapid product temperature changes. The conditioned air is pre-cooled or pre-heated beyond the setpoint, allowing quicker recovery of the desired condition after transfer.
LIB INDUSTRY standard 2-zone thermal shock chamber models workspace volumes include: 22L, 72L, 211L, 505L, And interior dimensions can be customized
Temperature Range
Hot zone to +220℃
Cold zone to -75℃
Parameter
| Name | Air To Air Thermal Shock Chamber | ||||
| Model | TS-340 | ||||
| Inner dimensions of test room (mm) | 450*450*360 | ||||
| Volume of test room (mm) | 72L | ||||
| Load of test room | 30kg | ||||
| Overall dimensions(mm) | 1710*1020*1845 | ||||
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
|
Pre-cool room |
Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | ||||
| Recovery time | Within 15 minutes | ||||
| Temperature fluctuation | ≤±0.5℃ | ||||
| Temperature deviation | ≤±3 ℃ | ||||
| Controller | Programmable color LCD touch screen controller | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | French TECUMSEH compressor | ||||
| Refrigerant | R404A, R23 | ||||
| Air circulation | Centrifugal wind fan | ||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainless steel | ||||
| Power Supply | 380V 50HZ | ||||
| Environmental conditional | 5℃～+40 ℃ ≤85% R | ||||
Advantage
 |
 |
|
Internal and External Material
Material of the inner box is SUS304 stainless steel,of the outer chamber is stainless steel or see A3 stainless with paint coated.
|
Cooling System Cold hot shock test chamber equip double-stage compressor,Environmentally friendly refrigerants |
Optional Accessories
Thermal Shock Machine Optional Accessories
Custom colors
Water cooled condenser
Remote refrigeration system
Test hole size
Open the door direction
