Climatic Glass Fiber Salt Spray Corrosion Test Chamber Continuous Salt Spray Booth
Description
Salt Spray Booth Salt Climatic Test Chamber is a test equipment used to artificially simulate the salt spray corrosion environment, which can be used to simulate the marine climate.
Salt spray test booth is used to evaluate the anti-salt spray corrosion performance of materials, products and their protective layers, and to evaluate the process quality of the protective layers.
Products Parameters
| Name |
Salt Spray Booth Salt Climatic Test Chamber |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
Salt Test Equipment Details
 |
 |
|

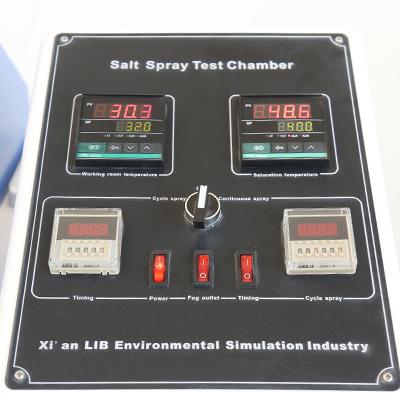

Simple Controller for Operation
|

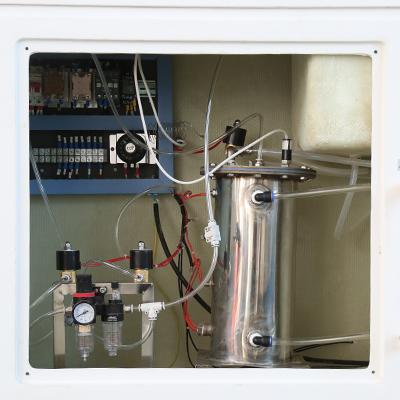

Saturated Barrels |
 |
 |
Characteristics
1. There are 24+ types of the salt spray device, which can meet different test requirements.
2. Made of reinforced glass fiber, there is no steel structure inside, so it will not corrode.
3. Precisely control the amount of salt spray deposition.
4. Humidity control and spray function are optional.
5. The user interface is very simple, which is convenient for users to set and operate the program.
6. External salt spray sedimentation collector
7. salt spray equipment opening (cables can pass through a 100mm diameter hole on the box wall)
