Wet Bulb Gauze For Humidity Test Chamber 43x4000mm/Reel
Description
wet ball gauze, special gauze for humidity test machine, test gauze, humidity measurement gauze Wet ball test gauze is an important part of the humidity test chamber, which is used to test the humidity, which is related to the accuracy of the humidity test parameters of the whole equipment and stability.
Parameters
| Name | Wet Bulb Gauze for Humidity Sensor |
| size | 43x4000mm/reel/box |
| standard | QX/T35-2005 |
| materials | Special "wet ball gauze" made of linen |
| Delivery time | 7-10 working days |
| Packing | Inner-Plastic Bag; Outer -Standard Carton Box. |

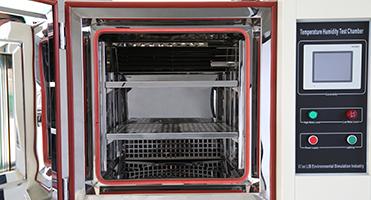

| Range of application | Temperature Humidity Test Chamber,constant temperature and humidity machine |
 |
 |
Precautions
●Pay Attention

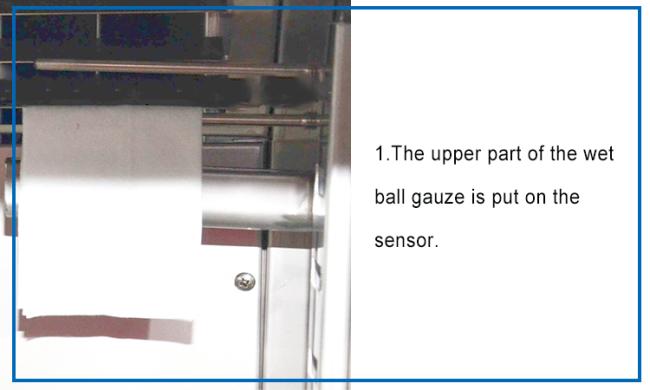

When inserting the gauze, make sure that the gauze and the sensor tail are aligned. If the gauze is not installed properly, the humidity will be difficult to control and stabilize.
●There are also clear regulations for the placement of the wet-bulb gauze and the tail of the wet-bulb temperature sensor in the temperature humidity test machine:

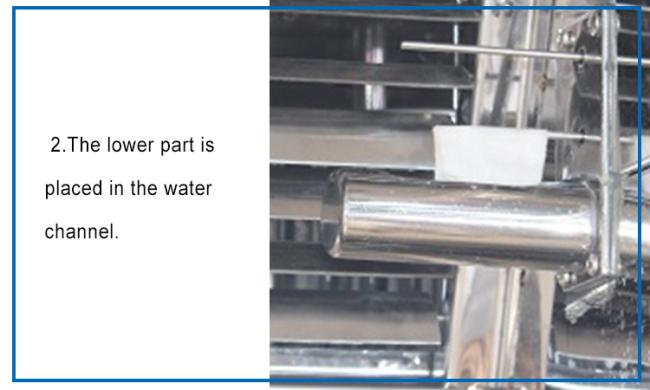

The length of gauze is 100mm, the sensor probe is tightly wound, the probe is 25-30mm away from the humidity water cup, and the gauze is immersed in the water cup. This will ensure the correct humidity.
 |
 |
