40m/Min Angle Feeding Speed Cnc Steel Metal Drilling Machine Line 3pcs Drill On Each Side

Product Introduction:

The CNC angle drilling and marking machine line is expertly designed for the drilling and marking of large, high-strength angle steel used in transmission line towers. This system ensures precise drilling of all holes in the angle steel, delivering outstanding hole quality and positional accuracy. Furthermore, it enhances production efficiency while providing a high level of automation.

Main Parameters:

Product Features:

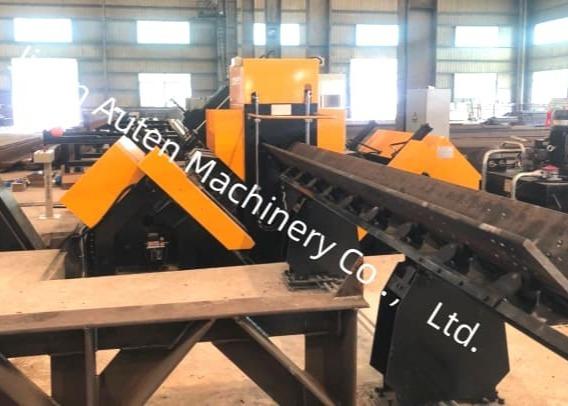

1. The production line is equipped with an automated loading system, consisting of a horizontal feeding channel, a rotating loading rack, and an automatic unloading system, all supported by an advanced feeding mechanism. This integration ensures a continuous and efficient workflow for all drilling and steel stamping operations on the angle steel. The entire process is fully automated, removing the need for manual intervention and significantly reducing labor demands on operators.

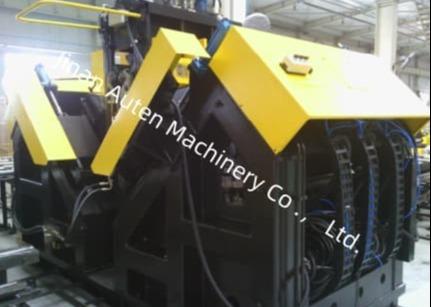

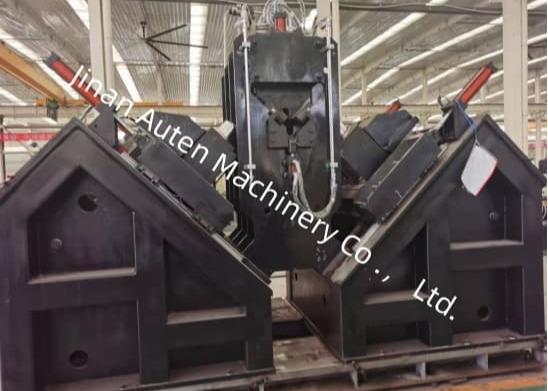

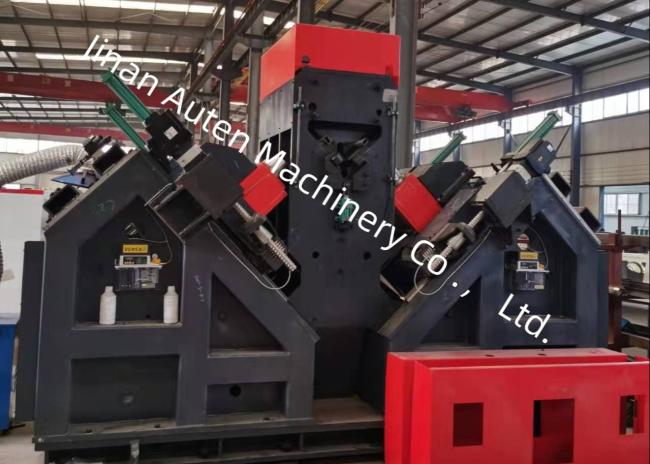

2. The drilling spindle is fitted with a Taiwan BT40 precision spindle, incorporating internal coolant for enhanced drilling efficiency and accuracy. The drilling unit features six CNC drilling heads, with three positioned on each side of the angle steel. The heads on both sides are capable of simultaneously drilling holes of identical diameters and consistent intervals from the upper ends of the angle steel flanges.

3. The software provides a bilingual Chinese/English interface, ensuring intuitive navigation and a clear presentation of workpiece drawings.

4. The programming process is streamlined and efficient; users only need to input the workpiece dimensions, hole diameter, spacing, and quantity to automatically generate the program. Additionally, CAD/CAM lofting software can be employed for seamless file conversion. The system is fully compatible with NC1 files generated by TEKLA software.

5. Essential hydraulic, pneumatic, and electrical components are sourced from reputable, high-performance brands to ensure superior reliability and an extended operational lifespan.

6. The system is equipped with an integrated self-diagnostic feature, enabling efficient fault detection and troubleshooting.

7. An optional shearing unit is available, featuring a dual-blade cutting mechanism designed to optimize performance.

These specimens represent a range of standard specifications and hole configurations of angle steel commonly utilized in the construction of transmission line towers. They act as a visual reference for potential users or inspectors to evaluate the functional performance of the equipment, providing clear and quantifiable benchmarks to assess whether the equipment meets the necessary manufacturing standards for transmission line tower fabrication.

In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers are subjected to harsh weather conditions and substantial loads, this equipment plays a vital role in processing the angle steel components that form the primary load-bearing structures of the towers. It efficiently carries out drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other key structural elements, ensuring precise dimensional accuracy and reliable connection performance. Consequently, it plays a significant role in maintaining the long-term structural integrity and stability of the transmission towers throughout their entire service life.
