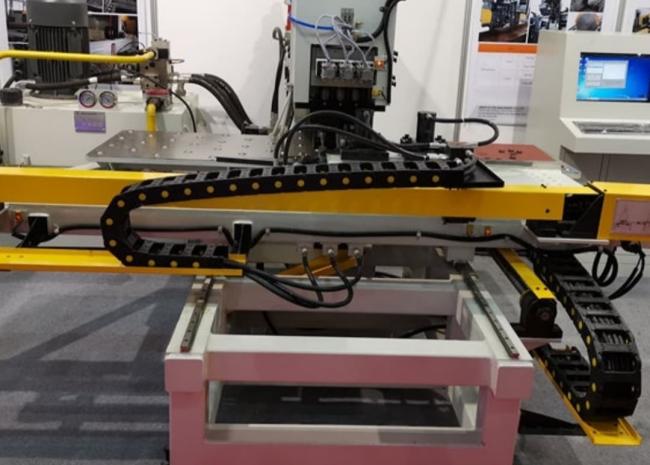

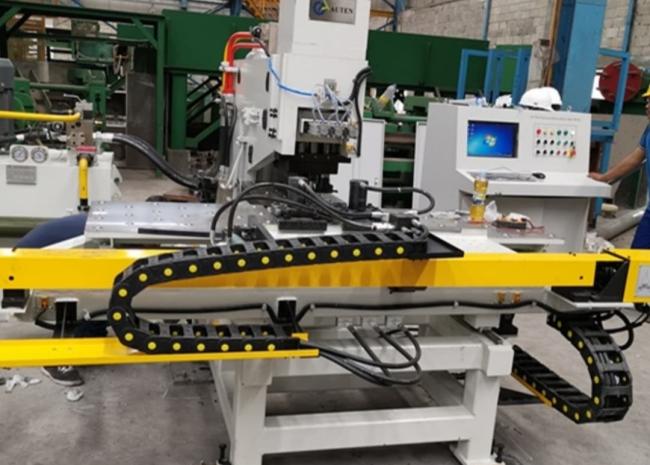

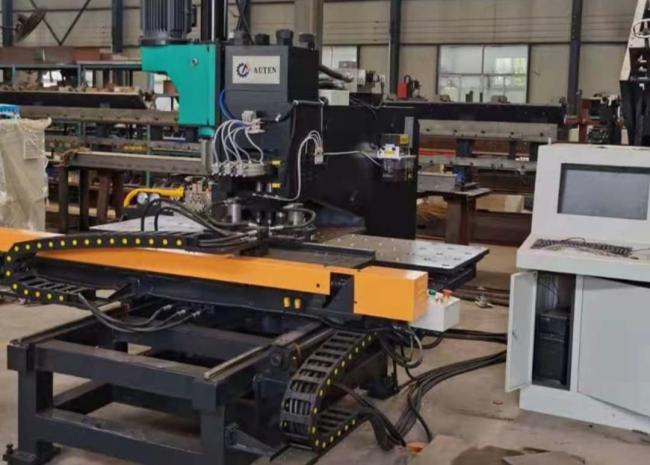

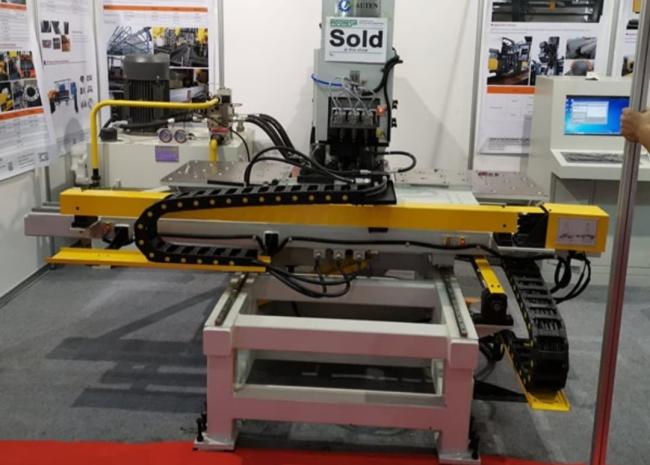

The machine frame is constructed using C-type plate welding, ensuring excellent rigidity and providing a large operational workspace. The machine is equipped with three die stations, one of which is dedicated to marking, and features automatic die station switching. The clamping system is adaptable to various workpieces, utilizing a zero baffle as the reference mark, with the workpiece supported by a rolling-ball worktable. The X and Y axes are driven by servo motors and ball screws, while the dual-axis CNC system controls the punching position, facilitating fully automated machining. Operators can input workpiece dimensions into the computer, enabling the system to recall programs for future use.

2. The machine utilizes CNC technology with servo motor feeding, ensuring high efficiency and stable workpiece precision.
3. Key functional components are designed with modular assembly, simplifying maintenance and repairs.
4. The machine performs punching, marking, and drilling operations on a single plate.

5. The drilling unit is equipped with functions such as rapid descent, slow feed during operation, and quick return feeding, all of which enhance operational efficiency.

6. The machine offers user-friendly programming, allowing the input of hole diameter and position directly into the computer. It also supports programs generated by CAD/CAM software or those produced by lofting software.

7. The hydraulic station features a dual-pump, single-motor design with a water cooling system and sleeve-type couplings for all pipelines. The hose and coupling seals are sourced from international suppliers.

8. The X and Y axes are driven by servo motors, ball screws, and linear guides, ensuring exceptional precision.
9. The system is equipped with a self-diagnosis function to identify and report faults.
10. The design reduces the physical workload on operators.
