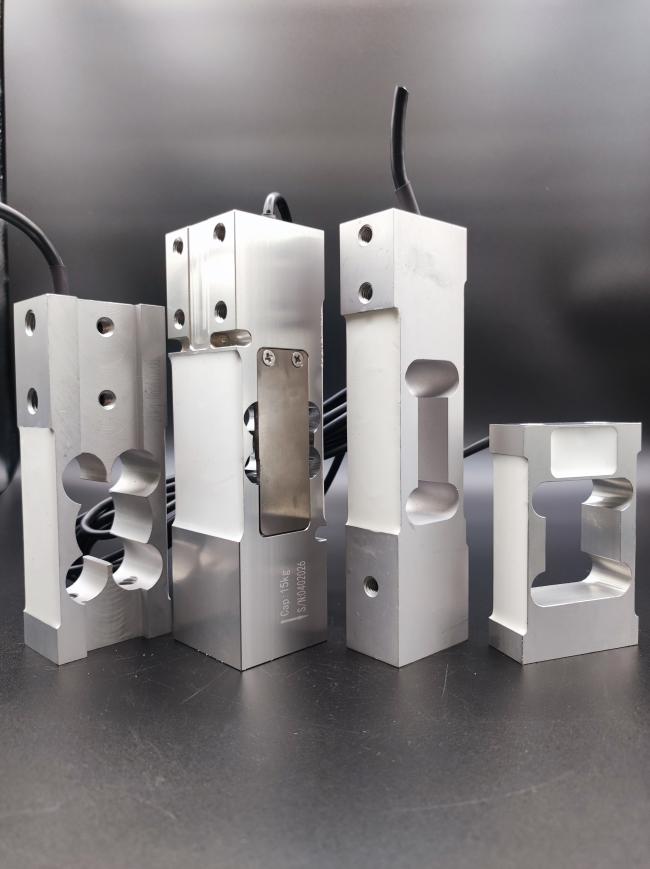

5kg 8kg 20kg 30kg 50kg Aluminum Alloy Weighing Sensor Is Used In Packing Scale
5kg 8kg 20kg 30kg 50kg aluminum alloy weighing sensor is used in packing scale
Principle and Structure:
The weighing sensor utilises the principle of resistance strain, wherein the measured force is directly applied to the strain gauge affixed to the hollow cylinder's surface. This application induces axial compression and radial expansion in the strain gauge, resulting in a decrease in the axial resistance strain value and a corresponding increase in the radial value. Consequently, this causes the Wheatstone bridge to which the strain gauge is connected to become unbalanced. The bridge then outputs an imbalance voltage at its angle output when external power is supplied. This voltage is directly proportional to the measured force exerted on the load cell, thereby enabling accurate measurement and analysis. The design ensures high precision and reliability, making it suitable for various weighing applications.
Features:
The weighing sensor features a streamlined structure, ensuring ease of installation, utilization, and portability.
It boasts excellent sealing properties, providing superior moisture resistance.
The sensor exhibits high stability against vibration and shock.
Its structural design minimizes transmission error, guaranteeing reliable measurement and optimal static and dynamic characteristics.
It is suitable for both long-distance static and dynamic measurement applications.
Dimension:
Specification:
| Capacity | Kg | 5/8/20/30/50 |
| Sensitivity | mV/V | 1.9±0.2 |
| Accuracy | ±0.02 | |
| Creep(15min) | %FS | ±0.02 |
| Input Resistance | Ω | 406±20 |
| Output Resistance | Ω | 350±5 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ±1 |
| Temperature Effects on Span | %FS/10℃ | ±0.017 |
| Temperature Effect on Zero | %FS/10℃ | ±0.017 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 5～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 3 |
| Material | Aluminum Alloy |
Application
FAQ
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2.Do you accept customized?
Yes, we have different customers make their own OEM products. So we can make products as per your requirement.
3. When will you arrange the production?
We will arrange the production immediately after receiving your payment.
4. Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freoght. The laed time for samples is about 7 days up on got payment.
5. Do you have any discount?
To clients who bring repeat orders and large orders. Please contact us for better quote.
