Full Bridge Mini Load Cell For Weighing Scale Aluminum Alloy Construction Super Low Profile Adult Medical Scales
Full bridge mini load cell for weighing scale Aluminum alloy construction Super low profile adult medical scales
Features
1. Aluminum alloy construction
2. Super low profile
3. Shall be used by set, one set contains four pcs
4. Widely used for low profile infant and adult medical scales, low profile platform scales, personal scales, airport baggage scales, postal scales etc.
Specification
|
Specifications: |
|
|
Rated Capacity : 75,150,300(Kg) |
Creep in 2 Min.:±0.05%R.O. |
|
Accuracy Class: B |
Temp. effect on Output: ±0.03%R.O./10℃ |
|
Rated Output(mV/V) : 0.8±10%mV/V |
Temp. effect on zero: ±0.05%R.O./10℃ |
|
Zero balance: ±0.1%mV/V |
Safe Overload: 150%R.C. |
|
Input resistance(Ω): 1130±20Ω |
Insulation Resistance:≥2000MΩ(50VDC) |
|
Output resistance(Ω): 1000±10Ω |
Cable,Length: φ0.8mm×0.6m |
|
Linearity Error:±0.03%R.O. |
Operating Temp.Range:-10~+40℃ |
|
Repeatability Error:±0.03%R.O. |
Excitation,Recommended:≤10VDC |
|
Hysteresis Error:±0.03%R.O. |
|

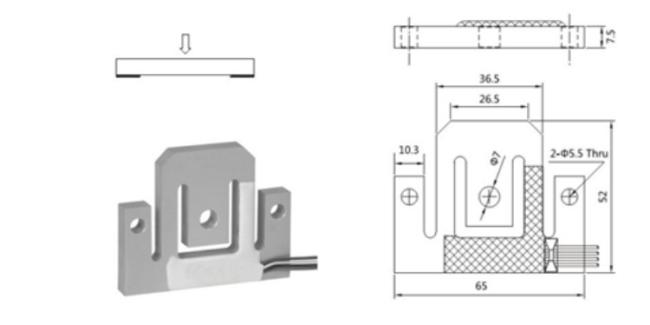

Dimension
|
1. What essential information is needed for product selection? |
|
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
|
2. How will you ensure quality of your products? |
|
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
|
3. What terms of payment is acceptable? |
|
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
|
4. When production could be arranged? |
|
As soon as the payment was received |
