Industrial Pressure Sensor Suppliers

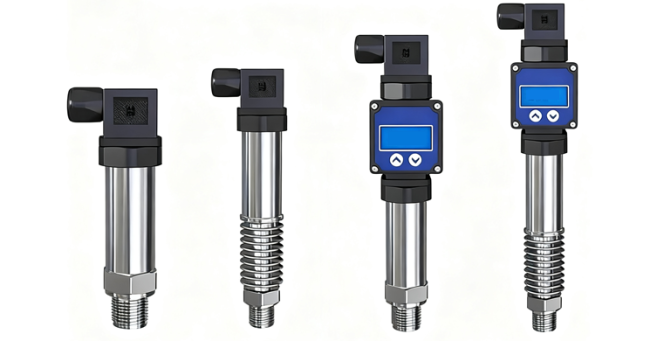

The pressure sensor is small in size, easy to install, and is insulated by a stainless steel case. It is suitable for measuring gas and liquid media compatible with the material of the contact part. It can be used to measure gauge pressure, negative pressure, and absolute pressure.
Our pressure sensors use the standard ModBus-RTU communication protocol with RS485 output, which allows integration with PLCs, configuration software, configuration screens, and industrial controllers. We recommend selecting our company’s matching monitoring host, which can upload data to our free cloud monitoring platform. This platform supports users in viewing real-time data, historical data, alarm records, and more via mobile phones or computers. If you choose a model with buttons and a display, you can modify values such as the address and baud rate directly through the buttons.
Pressure sensor datasheets
| Parameter Category | Specific Specifications |
| Power Supply | 10~30V DC |
| Max. Power Consumption | 0.3W |

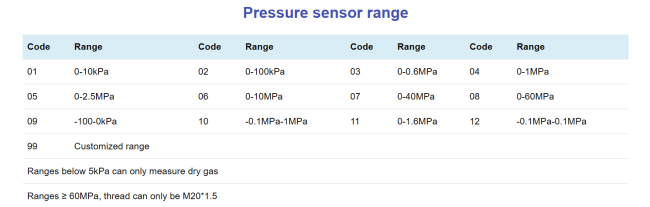

| Measure Range | -0.1~100MPa (optional) |
| Accuracy | 0.5%FS (default), 0.2%FS |
| Overload Capacity | ≤1.5 times (continuous); ≤2.5 times (instantaneous) |
| Temperature Drift | 0.03%FS/℃ |
| Medium Temperature | -40~75℃; -40~150℃ (high-temperature type) |
| Working Environment | -40~60℃ |
| Monitoring Target | Non-corrosive gas or liquid |
| Output Method | RS485 |
