Low Profile Single Point Load Cell (50-150kg)
Low Profile Single Point Load Cell (50-150kg)
The RJ is parallel beam load cell,aluminum alloy single point load cell for pet scale.The low profile weight sensor is easy to calibrate, high-precision, and easy to operate.
Key Features:
Aluminum alloy material
Capacity: 50-150kg
Precision: 0.1%R.O.
Protection class: IP66/PI67
Rated Output: 1.5mV/V±10%
Usage & Applications:
Pet scale

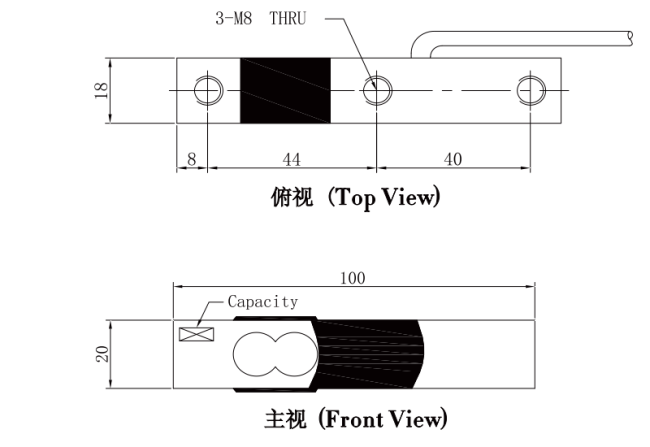

Dimension:
Specifical
| Rated Capacities | 50,100,150(kg) |
| Rated Output | 1.5mV/V±10% |
| Zero Balance | ±0.0500 mV/V |
| Non-linearity | 0.1%R.O. |
| Hysteresis | 0.1%R.O. |
| Repeatability | 0.1%R.O. |
| 30mins Creep | 0.03 %R.O. |
| 30mins Return | 0.03 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.01 %R.O./℃ |
| Temperature Effect On Zero | 0.05 %R.O./℃ |
| Input Impedance | 1115±10%Ω |
| Output Impedance | 1000±10%Ω |
| Insulation Impedance | ≥2000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Aluminum Alloy |
| Protection Class | IP66/IP67 |
| Cable | φ4×1.6m (4PCS/Set) |
| Recommended Platform Size | |
| Mode of Connection | Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
OTHER
| Output resistance | 350±3 ohm |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 10-15V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -35-+80 ℃ |
| safe overload | 150 %RO |
| Ultimate overload | 200%RO |
| loadcell material | Auuminum |
| platform size | 250x350 mm |
| Connecting cable | Φ4.2x350 mm |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
