Beam Load Cell, 10kg/20kg/30kg/50kg/100kg/200kg/500kg to 1000kg
Beam Load Cell, 10kg/20kg/30kg/50kg/100kg/200kg/500kg to 1000kg
After purchasing one RJ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
Beam load cells have capacity range from 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg to 1000kg. Load cell capacity can be customized according to customer requirements.
Specification
| Model | RJ |
| Weight | 0.5~1.5kg |
| Capacity Range * | 10kg~1000kg |
| Matched Display Controller | (Click it to the controller page) |
| Matched Transmitter | (Click it to the transmitter page) |
| Accuracy | 0.03%F.S (linearity + hysteresis + repeatability) |
| Sensitivity | 2.0±0.05mV/V (Low range variations may differ) |
| Creep | ±0.03%F.S/30min |
| Zero Output | ±1%F.S |
| Temperature Effect on Zero | ±0.02%F.S/10℃ |
| Temperature Effect on Output | ±0.02%F.S/10℃ |
| Operating Temperature | -40℃~+80℃ |
| Input Impedance | 352±10Ω |
| Output Impedance | 350±5Ω |
| Insulation Resistance | ≥5000MΩ |
| Safety Overload | 150%F.S |
| Overload Limit | 200%F.S |
| Bridge Voltage (excitation voltage) | DC 5-10V |
| Material | Alloy steel (filled with inert gas) |
| Protection Class | IP68 |
| Cable Length | 2m |
| Wiring | EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White |
Feature
- High Precision & Stability: Ensures accurate detection with excellent stability and strong anti-interference capability.
- Laser Welded Waterproof Sealing: Features professional laser welding and an integrated sealing structure, achieving IP67 waterproof performance.
- Durable Steel Construction: Made from high-quality stainless steel or alloy steel for superior mechanical fatigue resistance and longer lifespan.
- Wide Application: Designed for various environments with waterproof and corrosion-resistant properties, suitable for platform scales, bench scales, conveyor scales, small scales, and silo weighing systems.
- Modular Compatibility: Supports integration with additional modules for enhanced functionality.

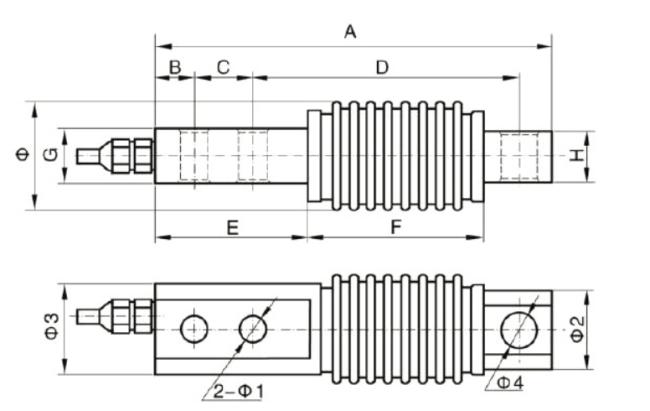

Dimension
| Capacity | Dimension (mm) | ||||||||||||
| A | B | C | D | E | F | G | H | Φ | Φ1 | Φ2 | Φ3 | Φ4 | |
| 10~200kg | 123 | 13 | 18 | 82 | 45 | 59 | 22 | 20 | 45 | 8.5 | 27 | 32 | 11 |
| 300~1000kg | 210 | 15 | 40 | 133 | 93 | 64 | 34 | 25 | 60 | 13 | 35 | 50 | 14 |

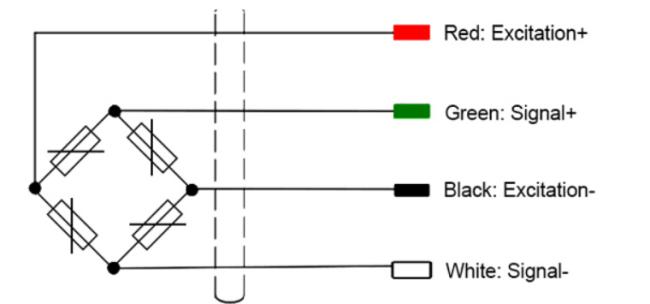

Wiring Method
Application
Tips: Beam load cell with bellows vs single point load cell
- Structure: Both of them are beam load cells. The difference is that the beam load cell with bellows is a cantilever beam structure and the single point load cell is a parallel beam structure.
- Application: Using for the platform scale or hopper scale, beam load cells with bellows are used to combine into a group of four or three units. Single point load cell generally uses only one in the middle of a pricing scale or a human scale. The single point load cell is calibrated for angular differences before leaving the factory.
- Operating environment: The beam load cell with bellows can be used for both static and dynamic weighing, and the unique bellows seal allows it to be used in very harsh weighing environments. The single point load cell can only be used for static weighing and should be away from harsh environment. But its impact resistance and stability are good.
