Cantilever Beam Load Cell, 500kg/1000kg/2 ton/3 ton/5 ton
Cantilever Beam Load Cell, 500kg/1000kg/2 ton/3 ton/5 ton
After purchasing one RJ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
Cheap cantilever beam load cells have capacity range from 500kg/1000kg/2 ton/3 ton to 5 ton. Capacity of Load cell can be customized according to customer's requirements.
Specification
| Model | RJ |
| Shipping Weight | 1.1~5kg |
| Capacity Range * | 500kg/1000kg/2 ton/3 ton/5 ton |
| Matched Display Controller | (Click it to the controller page) |
| Matched Transmitter | (Click it to the transmitter page) |
| Accuracy | 0.03%F.S (linearity + hysteresis + repeatability) |
| Sensitivity | 2.0±0.1mV/V |
| Creep | ±0.02%F.S/30Min |
| Zero Output | ±1%F.S |
| Temperature Effect on Zero | ±0.002%F.S/10℃ |
| Temperature Effect on Output | ±0.002%F.S/10℃ |
| Operating Temperature | -20℃~+60℃ |
| Input Resistance | 380±4Ω |
| Output Resistance | 350±1Ω |
| Insulation Resistance | ≥5000MΩ |
| Safety Overload | 150%FS |
| Bridge voltage (excitation voltage) | DC 5-15V |
| Material | Alloy steel |
| Protection Class | IP67 |
| Cable Length | 2m (＜5ton), 5m (≥5ton) |
| Wiring | EXC+: Green, EXN+: Yellow, SIG+: White, EXC-: Black, EXN-: Blue, SIG-: Red. Shielded wire: Yellow. |

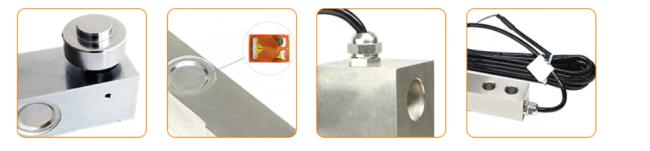

Feature
- High Precision & Sensitivity: Offers high detection precision and excellent sensitivity, ensuring reliable force measurements.
- Durable Construction: Made from 42CrMo alloy steel, known for its high strength and wear resistance, ensuring long-term durability.
- Stable Performance: Designed for long-term stability with strong resistance to bias load, suitable for accurate weighing and measurement.
- Waterproof & Reliable Signal: Features a 6-point waterproof connector, preventing wire pull-out and ensuring stable signal transmission.
- Wide Application: Ideal for platform scales, hopper scales, tank scales, and various other industrial weighing systems with high stability and precision.

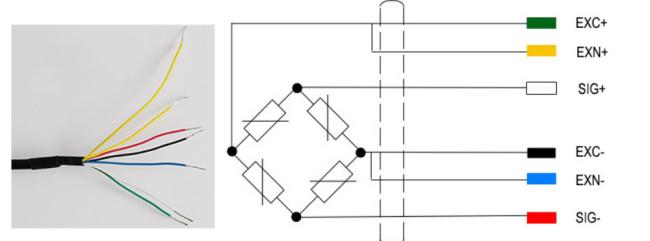

Wiring Diagram

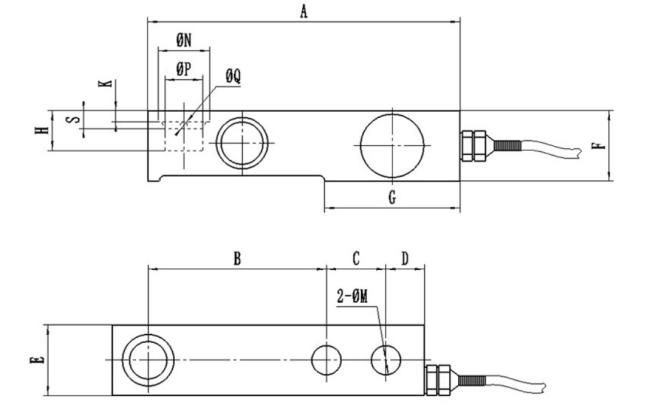

Dimensional Drawing
| Capacity | Dimension (mm) | |||||||
| A | B | C | D | E | F | G | H | |
| 500kg/1 ton | 133.4 | 76.2 | 25.4 | 16.4 | 30.7 | 30 | 57.9 | 17 |
| 2 ton | 136.7 | 76.2 | 25.4 | 16.7 | 36.8 | 36.6 | 57.9 | 23 |
| 3 ton | 139.7 | 79.2 | 25.4 | 16.7 | 39 | 36.6 | 57.9 | 23 |
| 5 ton | 171.5 | 95.2 | 38.1 | 16.7 | 42.9 | 43 | 73.8 | 29.4 |
| Capacity | Dimension (mm) | |||||
| K | M | N | P | Q | S | |
| 500kg/1 ton | 4.8 | 12.7 | 22 | 15.9 | 3.1 | 7.7 |
| 2 ton | 9.5 | 12.7 | 22 | 15.9 | 3.1 | 11.7 |
| 3 ton | 9.5 | 15 | 22 | 15.9 | 3.1 | 11.7 |
| 5 ton | 11 | 19 | 34.9 | 22.2 | 3.1 | 11.7 |
Application
<img alt="" data-cke-saved-src=" <p style=" src=" <p style=" --un-rotate:="" 0;="" --un-rotate-x:="" --un-rotate-y:="" --un-rotate-z:="" --un-scale-x:="" 1;="" --un-scale-y:="" --un-scale-z:="" --un-skew-x:="" --un-skew-y:="" --un-translate-x:="" --un-translate-y:="" --un-translate-z:="" --un-pan-x:="" ;="" --un-pan-y:="" --un-pinch-zoom:="" --un-scroll-snap-strictness:="" proximity;="" --un-ordinal:="" --un-slashed-zero:="" --un-numeric-figure:="" --un-numeric-spacing:="" --un-numeric-fraction:="" --un-border-spacing-x:="" --un-border-spacing-y:="" --un-ring-offset-shadow:="" 0="" rgb(0="" 0);="" --un-ring-shadow:="" --un-shadow-inset:="" --un-shadow:="" --un-ring-inset:="" --un-ring-offset-width:="" 0px;="" --un-ring-offset-color:="" #fff;="" --un-ring-width:="" --un-ring-color:="" rgb(147="" 197="" 253="" .5);="" --un-blur:="" --un-brightness:="" --un-contrast:="" --un-drop-shadow:="" --un-grayscale:="" --un-hue-rotate:="" --un-invert:="" --un-saturate:="" --un-sepia:="" --un-backdrop-blur:="" --un-backdrop-brightness:="" --un-backdrop-contrast:="" --un-backdrop-grayscale:="" --un-backdrop-hue-rotate:="" --un-backdrop-invert:="" --un-backdrop-opacity:="" --un-backdrop-saturate:="" --un-backdrop-sepia:="" margin-top:="" 10px;="" margin-bottom:="" outline:="" none;="" padding:="" box-sizing:="" border-box;="" line-height:="" 30px;="" color:="" rgb(85,="" 85,="" 85);="" font-family:="" "open="" sans",="" sans-serif;"="">Tips: How do I know if my Cantilever Beam Load Cell is working properly?
To check if your load cell is functioning correctly:
- Verify output signal: Ensure the output signal is within the expected range for the applied load.
- Perform calibration: Test the accuracy using known reference weights or forces.
- Check for physical damage: Inspect for cracks, corrosion, or other signs of wear.
- Monitor performance over time: Track consistency and make adjustments if readings become erratic.
