400 Kg Alloy Steel Load Cell Silicone Rubber Sealing Electronic Weighing Sensor
400 kg Alloy Steel Silicon Rubber Sealing Electronic Weighing Sensor
Weighing Sensor
The weighing sensor is a device that converts a mass signal into a measurable electrical output. When the measured force acts directly on the strain gauge of the hollow cylinder pasted with the resistance strain gauge through the pull-indenter, the strain gauge is axially compressed and radially expanded, the corresponding axial resistance strain value decreases, and the radial value increases. When the bridge is out of balance, when the bridge power is supplied from the outside, there is an unbalanced voltage output at the angle output, which is proportional to the measured force acting on the load cell.
Product Features:
1. Elastomer for alloy Steel material
2. Suitable for elevator overload weighing system.
3. The sensor can be used independently.
Technical parameters:
| Capacity | Kg | 400 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy |
≤±0.05 0.02 |
|
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 375±10 |
| Output Resistance | Ω | 350±10 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | IP65 | |
| Cable specification | mm | Ф5 |
| Cable length | m | 1.4 |
| Material | Alloy Steel |

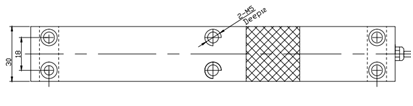

Dimension
Application
Process flowchart
FAQ
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Western Union, Paypal, etc.
4. When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
6. What about packing?
Standard export package: each unit has individual box and all boxes are packed in standard packages.
