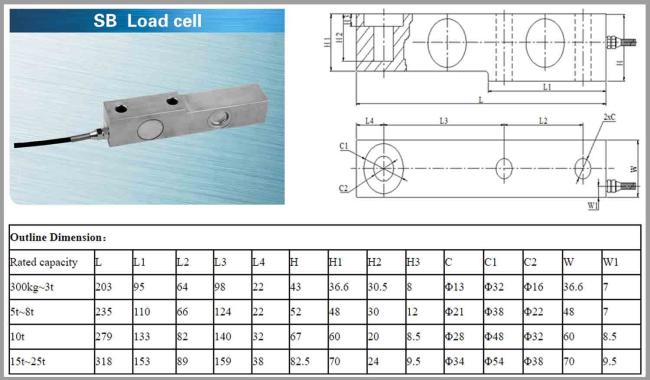

Beam Load Cells-SB Series

Features:

* Capacity: 300kg to 25t

* OIML C3 approval

* Material Option: Stainless steel,alloy steel

Applications:

* Truck scale

* Platform scale

* Blending scale

Technical Specifications:

* Rated load: 0.3, 0.5, 1, 2, 3, 5, 7.5, 8, 10, 15, 20, 25t

* Accuracy class: C2~C3

* Sensitivity: 2.0±0.002mV/V

* Non-linearity: ±0.03%F.S

* Hysteresis error: ±0.03%F.S

* Creep(30min): ±0.02%F.S

* TC ZERO: ±0.015%F.S/10°C

* TC SPAN: ±0.015%F.S/10°C

* Input resistance: 400±20Ω

* Output resistance: 352±3Ω

* Insulation resistance≥5000MΩ

* Rated temperature range: -10°C~+40°C

* Working temperature range: -30°C~+70°C

* Safe load limit: 150%F.S

* Breaking load: 150%F.S

* Rated excitation voltage: 10~12V DC

* Protection class: IP66(0.3~0.5t), IP67(1t~25t)

* Material: alloy steel or stainless steel are optional

* Cable Length: 2.6m(0.3~2t), 3.5m(3t), 5.2m(5~8t), 7m(10t), 12m(15~25t)
