DIN Rail Housing Filling or Batching Process Control Indicator for PLC or DCS System

Price Negotiable

Price: negotiation

MOQ: 5 PCS

Delivery Time: 5~25 days

Product Description

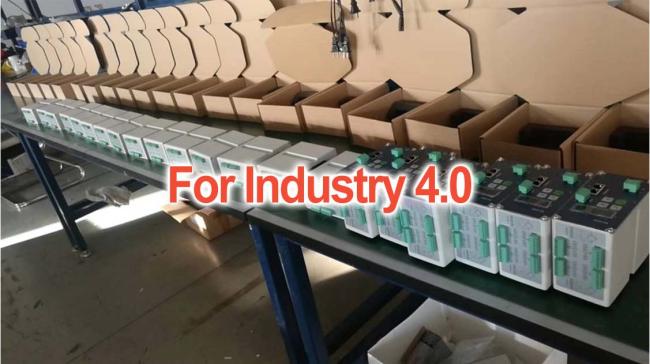

ID551PN Process Control Indicator for DCS or PLC System

General Descriptions:

* ID551PN is a high precision industry weighing controller.

* It can support 1 to 4 scales input , PROFINET, and MODBUS-TCP communication.

* This weighing controller is mostly applied in PLC control system,DCS control system,Computer manage and control system. It can output weight to PLC,DCS or Computer control system via serial port,Ethernet or PROFINET and so on.

Features:

* High accuracy,high anti-vibration

* No-testing weight calibration is available

* Support 1 to 4 Scales Input

* 200Hz ADC speed

* 100,000 display division

* 6000e CMC approval

* One serial port :RS232/485

* 2LAN port

* MODBUS-RTU & MODBUS-TCP

* PROFINET for Siemens

* TCP Report weight

* Mobile APP Configure and Calibration

* PC Tool Configure and Calibration

* DIN Rail Housing

Option:

* Blue Tooth with Mobile App

* Touch Screen Configure Tool

Specifications:

Accuracy
Accuracy Class	III
Approval	100,000 display divisions ,CMC 6000e
Display & Keypad
Display	6bit -7segment LED display
Update Speed	50ms
Status Display	PLC online/offline, scale , Motion, Net, Center of Zero
Key	Tare, Clear, Zero, Scale switch
ADC & Scales
Scale	Support 1 to 4 scales
Type	24-bit
Speed	200 Hz
Resolution	0.06uV/d
Resolution Approved	1uV/e(legal for trade)
Input	0.1mV to 19Mv
In-linearity & TC	≤0.0015% FS；≤5ppm/℃
Exciting Voltage	5V DC, max 150mA
Load Cell Number	Not more than 4 x 350Ω for each scale
Connect Type	4- wired or 6-wired , Cable:274mR/m2
Calibration
Calibration	Remote Calibration: PLC ,PC,Mobile APP
Filter	10-step
Scale Process	Tare/Clear,Zero,Auto Zero,Motion
Communication I/F
Serial Port	COM1-RS232/485, support MODBUS-RTU
LAN	2 LAN port,switch integrated inside TCP continuous output weight,MODBUS-TCP, PROFFINET for Siemens PLC
Blue Tooth	Support Mobile APP to configure, calibrate
Housing	DIN Rail
Power Supply	86~264VAC or 24VDC
Working Condition
Temperature	-10℃~45℃ ,95％ RH

Industrial Applications:

ID551PN Industry Process Weighing Controller is typical for weighing system,batching system,filling system work together with PLC or DCS control system.
