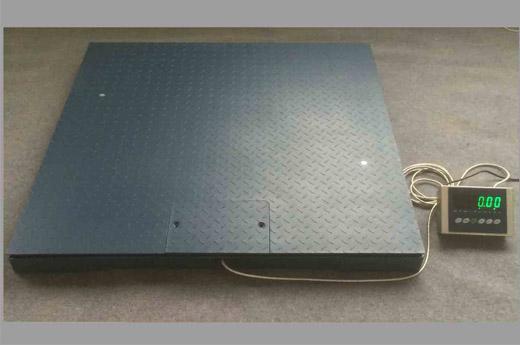

Heavy Duty IP65 Protection Industrial Floor Scale with 90mm~200mm Height
Price:
negotiation
MOQ:
1 PCS
Delivery Time:
5~25 days
Product Description
PH Series Capacity 1000kg~10000kg Mild Steel Floor Scale Platform
Features:
* Carbon-steel construction with frame.
* Powder-coated surface, anti-skidding design.
* Hermetically sealed steel weighing cells.
* Force transfer mechanism can be reset automatically.
* Accuracy weighing, easy installation.
* Low profile, well-formed shaped.
* Wide ranges of weights and platform sizes are available.
Specifications:
| Model | Dimensions(mm) | Weight Range | ||||
| 1000kg | 2000kg | 3000kg | 5000kg | 10000kg | ||
| PH1010 | 1000*1000 | * | * | * | ||
| PH1212 | 1200*1200 | * | * | * | ||
| PH1215 | 1200*1500 | * | * | * | ||
| PH1515 | 1500*1500 | * | * | * | * | |
| PH1520 | 1500*2000 | * | * | * | * | |
| PH2020 | 2000*2000 | * | * | * | * | * |
| PH2030 | 2000*3000 | * | * | |||
| PH2040 | 2000*4000 | * | * | |||
| Verification division value | 0.5kg | 1kg | 1kg | 2kg | 5kg | |
| Accuracy level | C3 | |||||
| Working temperature | Platform and load cell: -35℃~+65℃ | |||||
| Relative humidity | ≤95%(need no condensation) | |||||
| IP | Load Cell IP65 | |||||
| Load cells | ZEMIC H8C | |||||
| Model | L | W | H |
| PH1010 | 1000 | 1000 | 90 |
| PH1212 | 1200 | 1200 | 90 |
| PH1215 | 1200 | 1500 | 90 |
| PH1515 | 1500 | 1500 | 90 |
| PH1520 | 1500 | 2000 | 90 |
| PH2020 | 2000 | 2000 | 90 |
| PH2030 | 2000 | 3000 | 90 |
| PH2040 | 2000 | 4000 | 90 |
Optional accessories:
| * Ramp
Stainless steel: for wet environments Hot galvanized: for dry environments |
|
| * Scale stand
Stainless steel: for fastening the terminal on the weighing platform |
|
| * Roller table
Stainless steel: for wet environments Hot galvanized: for dry environments |
