1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell

Price Negotiable

Price: negotiation

MOQ: 5pcs

Delivery Time: 5~15 days

Brand: ZEMIC

Product Description

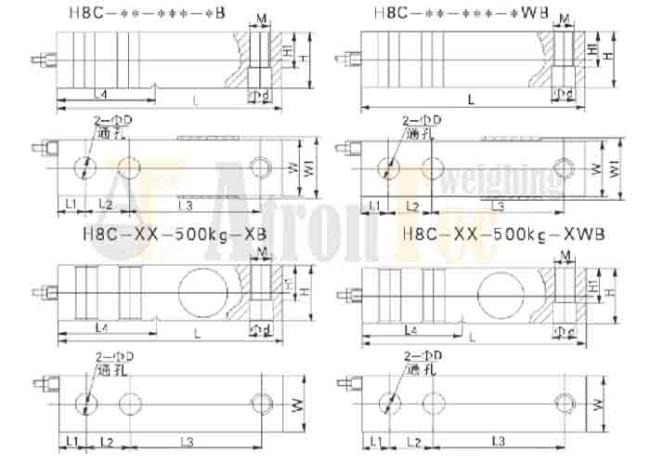

Shear Beam Alloy Steel Load Cell ZEMIC H8C

Features:

* Nickel plated alloy steel IP67 shear beam load cell (100 kg, 250kg are bending beam load cells)
* Adhesive sealed
* Suitable platform weighing, bed weighing, etc.
* High accuracy
* High reliability
* Current calibrated (sc-option)

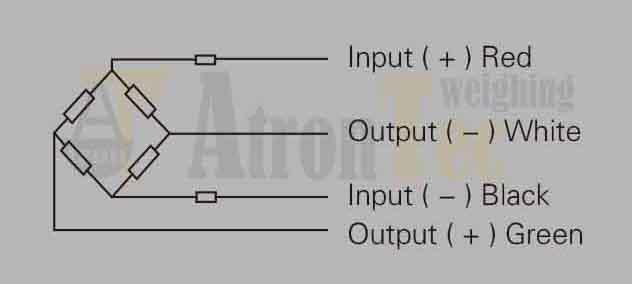

Wiring:

- Shielded, 4 conductor cable
- Cable diameter: Φ5mm.
- Standard cable length for 100kg - 2t: 4m and 6m for the higher capacities.
- Shield in not connected to the element.

Specifications:

Maximum capacity ( Emax )	t	0.5/1/2/2.5/3/4/5/6/7.5
Maximum capacity ( Emax )	klb	1/1.5/2/2.5/3/4/5/7.5/10/20
Accuracy class		C3	C4	C5	A5M	B10M
Approvals		OIML R60 C3	OIML R60 C4	OIML R60 C5	Ⅲ 5000 Multiple	Ⅲ L 10000 Multiple
Maximum number of load cell intervals ( nLC )		3000	4000	5000	5000	10000
Ratio of minimum LC verification interval Y=Emax/vmin		10000	14000	18000	15000	10000
Combined error	%FS	±0.020	±0.018	±0.010	±0.0267	±0.050
Creep	%FS/30min	±0.016	±0.012	±0.010	±0.017	±0.040
Temperature effect on sensitivity	%FS/10℃	±0.011	±0.009	±0.008	±0.013	±0.040
Temperature effect on zero	%FS/10℃	±0.015	±0.010	±0.007	±0.014	±0.020
Output sensitivity ( = FS )	mV/V	3.0±0.003 2.0±0.002
Input resistance	Ω	350±3.5
Output resistance	Ω	350±3.5
Insulation resistance	MΩ	≥ 5000(50VDC)
Zero balance	%FS	±1.0
Compensated temperature	℃	-10～+40
Operating temperature	℃	-35 ～ +70
Excitation, recommended voltage	V	5 ～ 12(DC)
Excitation maximum	V	18(DC)
Safe overload	%FS	150
Ultimate overload	%FS	300
Recommended torque on fixation	N.m	M12: 100, M18: 200, M24: 700
Ingress protection (according to EN 60529)		IP67
ATEX classification (optional)	Operating temperature			℃		-20 ～ +40
ATEX classification (optional)	II1G Ex ia II1C T4			II1D Ex iaD20 T73℃		II3G Ex nL II C T4
"S1" Output Sensitivity is 2.0±0.002MV/V
