Laser Welding Hermetically Sealed Stainless Steel Load Cell For Floor Scales
Price:
negotiation
MOQ:
4 PCS
Delivery Time:
5~25 days
Product Description
Stainless Steel Load Cell For Floor Scales, Laser Welding Hermetically Sealed Load Cell
Features:
* Stainless steel construction;
* Laser welding hermetically sealed;
* Protection class IP68;
* High accuracy;
* High stability;
* Tight construction;
* Suitable for floor scale,weighing control in chemcal/food/medical industry,etc.
Wiring:
* Red: +input
* Black: -input
* Green: +output
* White: -output
Specifications:
| Capacity | 5t | |
| Sensitivity | mV/V | 2±0.002 |
| Non-repeatability | %R.C. | ≤0.01 |
| Hysteresis | %R.C. | ≤0.02 |
| Non-linearity | %R.C. | ≤0.02 |
| Creep | %R.C. | ≤0.02 |
| Zero Balance | %R.C. | ≤0.1 |
| Temp. Compensated Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+60 |
| Temp. Coefficient on Sensitivity | %Load/℃ | ≤0.002 |
| Temp. Effect on Zero Balance | %R.C./℃ | ≤0.02 |
| Input Impedance | Ω | 381±4 |
| Output Impedance | Ω | 350±1 |
| Insulation Resistance | MΩ | ≥5000(50V DC) |
| Recommended Excitation Voltage | V(DC/AC) | 5~15 |
| Max. Excit. Voltage | V(DC/AC) | 20 |
| Safe Overload | %R.C. | 150 |
| Ultimated Overload | %R.C. | 300 |
| IP Rating | IP68 | |
| Cable Length | 5m |

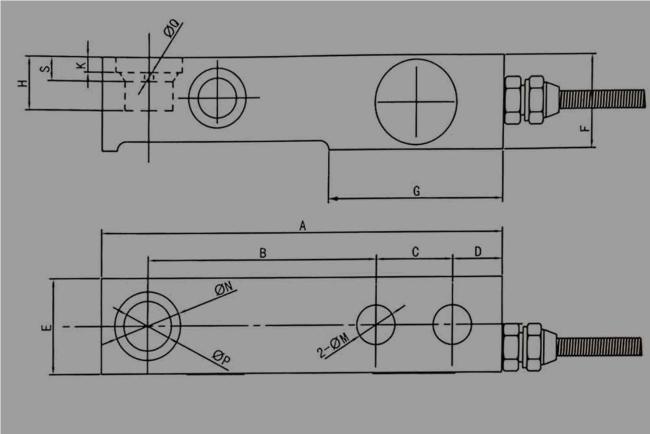

Dimensions:
| Capacity | A | B | C | D | E | F | G | H | K | M | N | P | Q | S |
| 0.5t,1t | 133.4 | 76.2 | 25.4 | 16.4 | 30.7 | 30 | 57.9 | 17 | 4.8 | 12.7 | 22 | 15.9 | 3.1 | 7.7 |
| 2t | 136.7 | 76.2 | 25.4 | 16.7 | 36.8 | 36.6 | 57.9 | 23 | 9.5 | 12.7 | 22 | 15.9 | 3.1 | 11.7 |
| 3t | 139.7 | 79.2 | 25.4 | 16.7 | 39 | 36.6 | 57.9 | 23 | 9.5 | 15 | 22 | 15.9 | ||
| 5t | 171.5 | 95.2 | 38.1 | 16.7 | 42.9 | 43 | 73.8 | 29.4 | 11 | 19 | 34.9 | 22.2 | 3.1 | 11.7 |
