ZEMIC Nickel Plated Alloy Steel H8C Shear Beam Load Cell with 5t Capacity
Price:
negotiation
MOQ:
8 pcs
Delivery Time:
5~25 days
Brand:
ZEMIC
Product Description
ZEMIC Nickel Plated Alloy Steel Load Cell,H8C Shear Beam Load Cell with 5t Capacity
Features:
* Nickel plated alloy steel IP67 shear beam load cell;
* Adhesive sealed;
* Suitable platform weighing,bed weighing,etc.
* High accuracy
* High reliability
* Current calibrated(sc-option)
Specifications:
| Maximum capacity(Emax) | 5T | |||
| Accuracy class | C3 | |||
| Approvals | OIML R60 C3 | |||
| Maximum number of load cell intervals(nLC) | 3000 | |||
| Ratio of minimum LC Verification interval Y=Emax/Vmin | 10000 | |||
| Combined error | %FS | ±0.020 | ||
| Creep | %FS/30min | ±0.016 | ||
| Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ||
| Temperature effect on zero | %FS/10℃ | ±0.015 | ||
| Output sensitivity(=FS) | mV/V | 3.0±0.003 2.0±0.002 | ||
| Input resistance | Ω | 350±3.5 | ||
| Output resistance | Ω | 350±3.5 | ||
| Insulation resistance | MΩ | ≥5000(50VDC) | ||
| Zero balance | %FS | ±1.0 | ||
| Compensated temperature | ℃ | -10~+40 | ||
| Operating temperature | ℃ | -35~+70 | ||
| Excitation,recommended voltage | V | 5~12(DC) | ||
| Excitation maximum | V | 18(DC) | ||
| Safe overload | %FS | 150 | ||
| Ultimate overload | %FS | 300 | ||
| Recommended torque on fixation | N.m | M12:100, M18:200, M24:700 | ||
| Ingress protection(according to EN 60529) | IP67 | |||

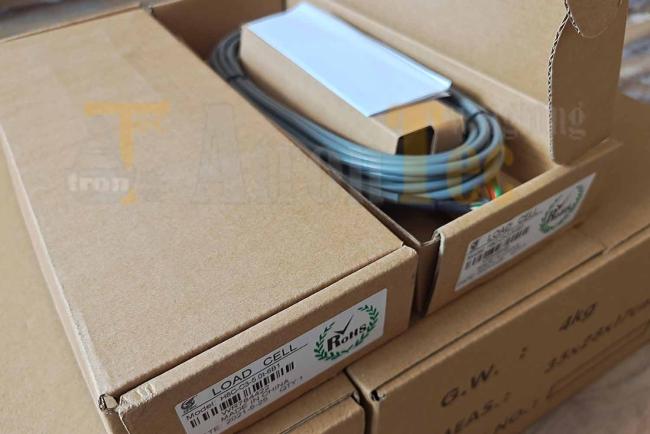

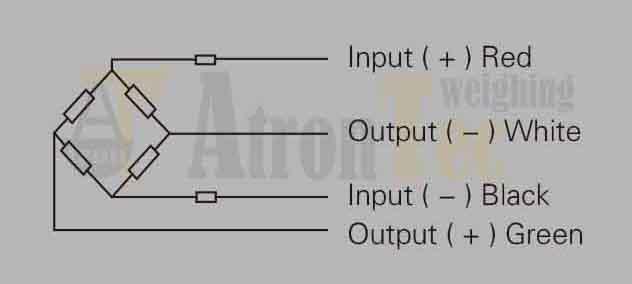

Pictures:
