Brief Introduction

YHL-3 series auxiliary display can view weighing results from long distance by connecting with weighing indicators via RS232 or other communication interface,and weighing system connecting with computer as well.

Features:

◆ Dynamic scan flip-latching technology
◆ High-lighted digital segment and broad eyesight
◆ Gross or net weight display from indictor or other output system
◆ Display character: 6-bit LED with character height 75mm(YHL-3 steel housing)

Specifications:

◆ Power: AC187-242V:49-51HZ
◆ Communication interface: 20mA current loop way/RS232
◆ Operating temperature: 0-40℃
◆ Operating humidity: ≤85％RH

Nonstandard Function( Optional):
◆ Connection to PC function
   (Output format of PC should be offered by customer)
◆ Connection to other indicator function
   (Corresponding manual for indicator or sample should be offered)

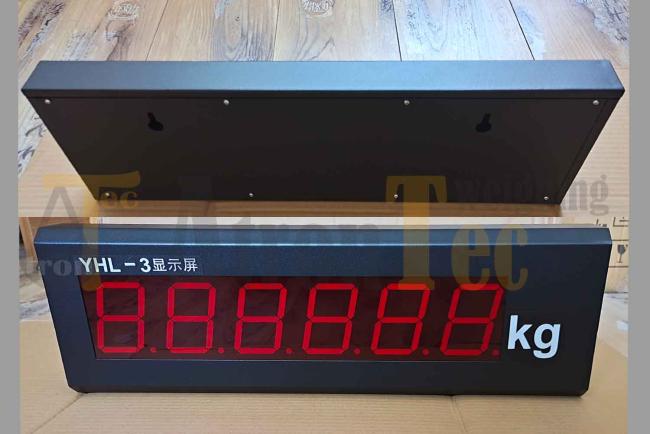

Pictures:
