5.8GHz C Band Microwave Motion Activated Wall Switch IP20 400W 220~240V AC 50Hz
8 pin DIP switch setting microwave motion sensor for on/off China manufacture
Features--
5.8GHz C-band microwave
Operating voltage: 220〜240V AC, 50Hz.
Rated load: 400W (capacitive)
Real Lux-Off function for built-in application.
Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.
RoHS compliant.
IP rating: IP20
Stand-by power: <0.5W
Warranty: 5 years
Setting by DIP switch, customized service and setting is available for you on request.
Settings--
| Detection range: | 100%, 75%, 50%, 25% |
| Hold-time: | T3s, 30s, 90s, 5min, 10min, 30min |
| Daylight sensor: | Disable, 50lux, 25lux, 10lux, 2lux |
Detection pattern--
Lux-Off function--
Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, then switch off automatically whenever the artificial light is not required(ambient light is bright enough).
This is the REAL& INTELLIGENT lux-off sensor for built-in installation.
Note: Lux-Off sampling time--30s

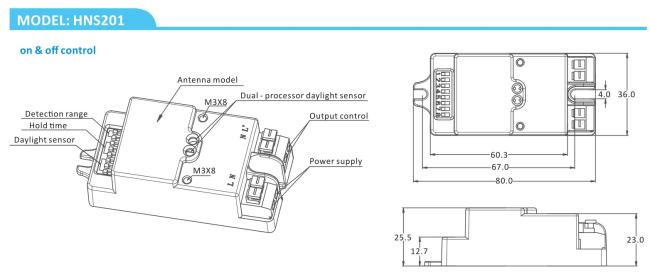

Size: 80*36*25.5mm super small size, easy for installation
Size:
