Highbay UFO Zhaga Book 18 50mm Dia HNS151DHB 10VDC PWM For Lighting System
Price:
Negotiable
MOQ:
50
Delivery Time:
3~4 weeks
Brand:
hyanll
Product Description
Zhaga book 18 HNS151DHB tri-level dimming and daylight harvest function integrated

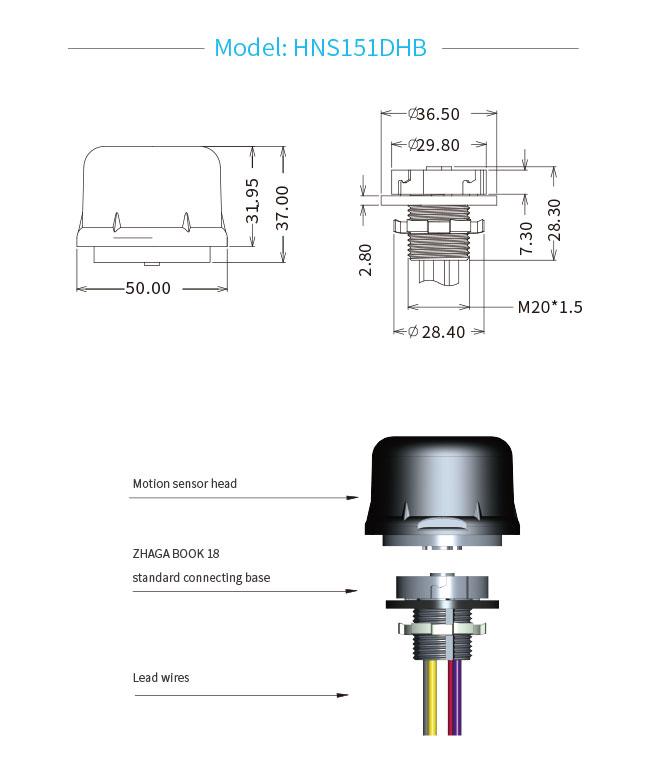

IP65 level and connecting with zhaga book 18 standard socket
Features:
- Super compact size(50mm in diamtere only), easy and small enough to be used built-in.
- Frequency: 5.8GHz
- Input voltage: 12V DC for standard version, can be customized on requirement.
- Input current: ≥30mA; Ouput signal: *0~10V or PWM
- When used built-in, intelligent photocell to measure and differentiate natural light from LED light.
- Memory function, only three steps, easy operation and user friendly.

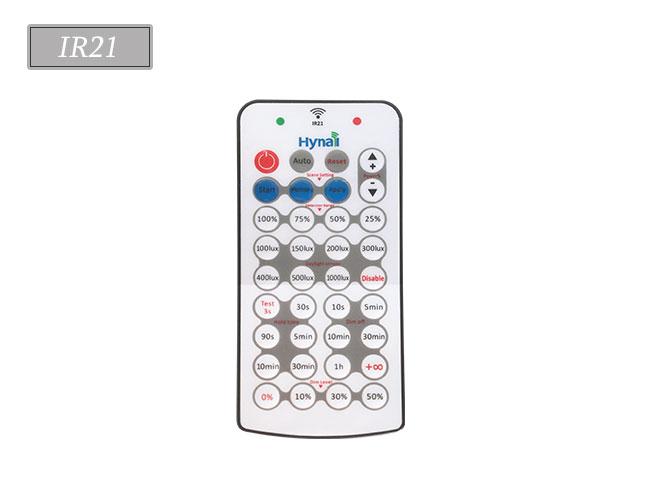

- IR remote control setting, easy installation and user friendly.
- Detection range: up to 16~18m in diameter.
Parameters:
| Input | DC Input Voltage | 12V DC |
| Output | Signal | 0-10V DC or PWM |

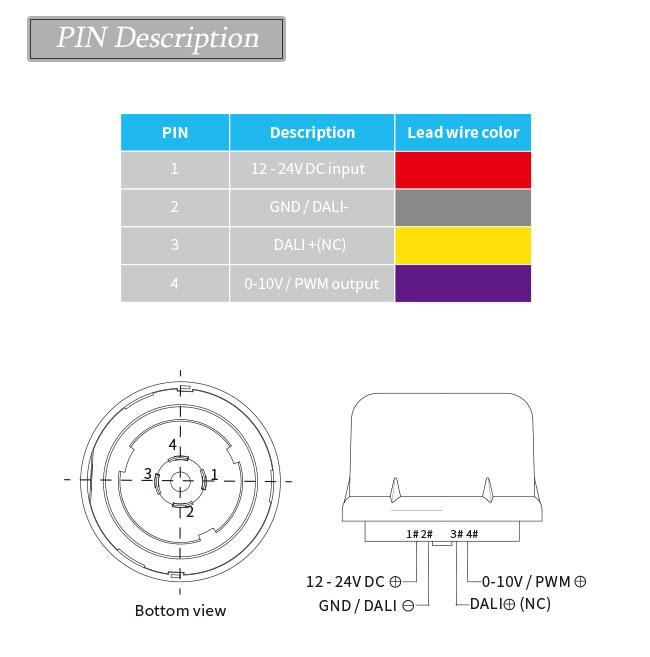

| Wiring | Zhaga Book 18 socket | |
| Sensor Parameters | Operating Frequency | 5.8 GHz |
| Hold time | T3s /30S/90S/5min/10min/30min | |
| DIM Level | 0%/ 10%, 30%, 50% | |
| DIM off | 10S/5min/10min/30min/1h/+∞ | |
| Sensitivity | 25%/50%/75%/100% | |
| Daylight Sensor |
100lux/150Lux/200Lux/300Lux/400lux/500lux/1000lux/ Disable |
|

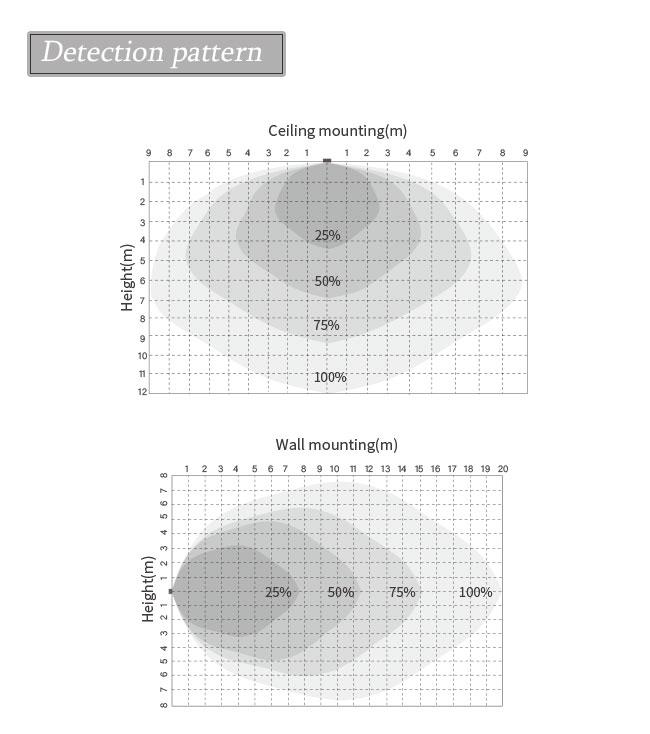

| Detecting Radius | See detection pattern | |
| Mounting Height | 12m Max. | |
| Detecting Angle | 150°(wall mounting) and 360°(ceiling mounting) | |
|
Operating Environment |
Operating Temperature | -20℃-+70℃ |
