12m Mounting Height Zhaga Book 18 0-10v Dimming HNS151HB 30mA IP65
Price:
Negotiable
MOQ:
50
Delivery Time:
3~4 weeks
Brand:
hyanll
Product Description

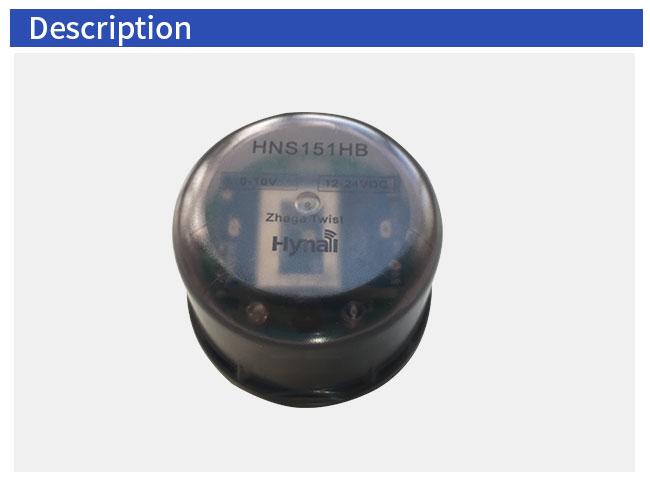

Model: HNS151HB Connecting with Zhaga book 18 socket
Tri-level dimming motion sensor high bay version max. 12m mounting height

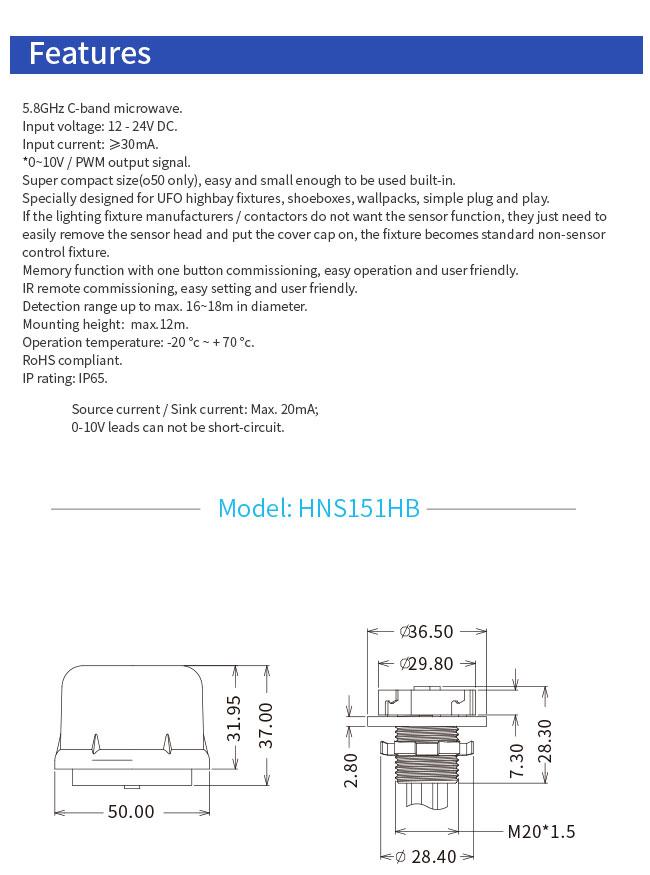

Features:
- 12V DC input voltage
- ≥30mA input current
- *0~10V output signal
- 50mm in diameter only

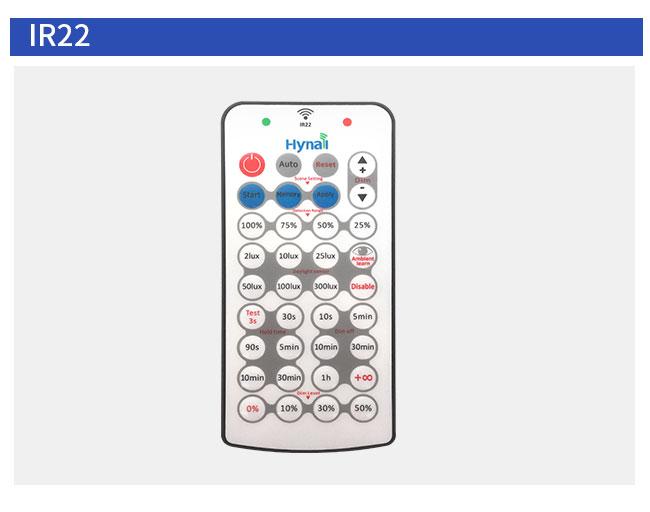

- IR remote control setting
- max. 16~18m in diameter detection range
- max. 12m mounting height
- -20 °c ~ + 70 °c operation temperature
- IP65 rating
- Memory function with simple three steps, easy operation and user friendly.
Specially designed for UFO highbay fixtures, shoeboxes,wallpacks, simple plug and play.
If the lighting fixture manufacturers / contactors do not want the sensor function, they just need to easily
remove the sensor head and put the cover cap on, the fixture becomes standard non-sensor control fixture.
Parameters:
| Input | DC Input Voltage | 12V DC |
| Output | Signal | 0-10V DC dimming |

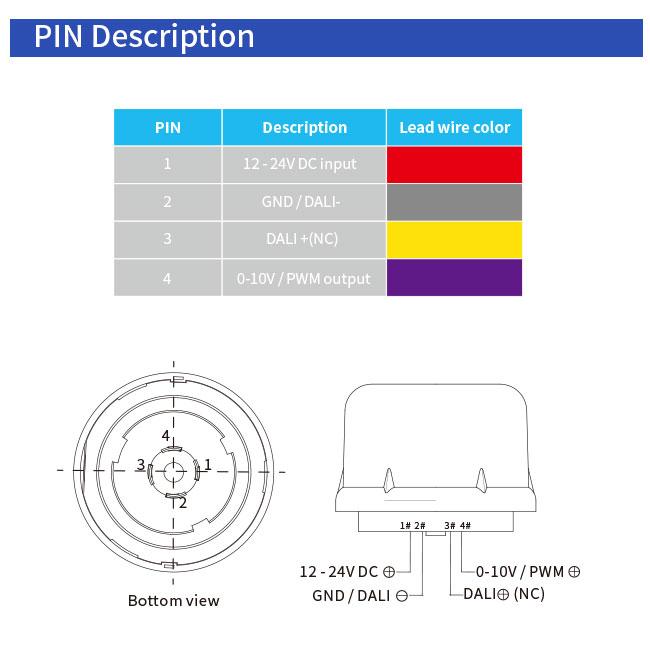

| Wiring | Zhaga Book 18 connecting base | |
| Sensor Parameters | Operating Frequency | 5.8 GHz C-band |
| Hold time | T3s /30S/90S/5min/10min/30min | |
| DIM Level | 0%/ 10%, 30%, 50% | |
| DIM off | 10S/5min/10min/30min/1h/+∞ | |
| Sensitivity | 25%/50%/75%/100% | |
| Daylight Sensor | 2lux/10Lux/25Lux/50Lux/100lux/300lux/ Disable | |
| Detecting Radius | See detection pattern | |
| Mounting Height | Up to 12m | |
| Detecting Angle | 150°(wall mounting) and 360°(ceiling mounting) | |
|
Operating Environment |
Operating Temperature | -20℃-+70℃ |
