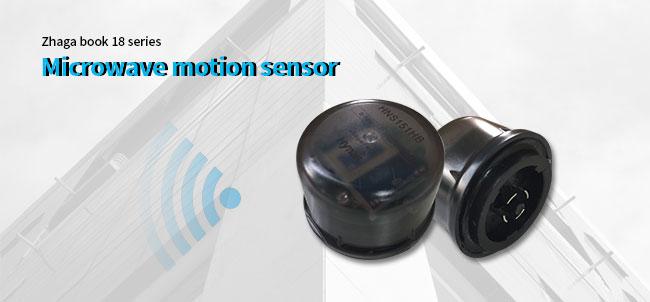

PWM High Bay Motion Sensor 30mA HNS151HB Dia 50mm Zhaga Book 18
Model name: HNS151HB 12m mounting height high bay version
This sensor is 12V-24V DC input standard zhaga book18 high bay motion sensor, used in remote control setting.
Advantage:
1. Exchange freely for function and no-function zhaga book18 motion sensor head if you have standard zhaga socket
2. If you choose function motion sensor head, daylight, microwave and DALI three kinds of sensors for your options.
3. Specially designed for outdoor lighting included UFO highbay, flood lights, shoeboxes, wallpacks, simple plug and play.
4. Super small size, easy installation and operation for the lighting designing.
5. Customized service: Yes
Parameters:
| Detection range: up to 18m in diameter. |
| Mounting height: up to 12m |

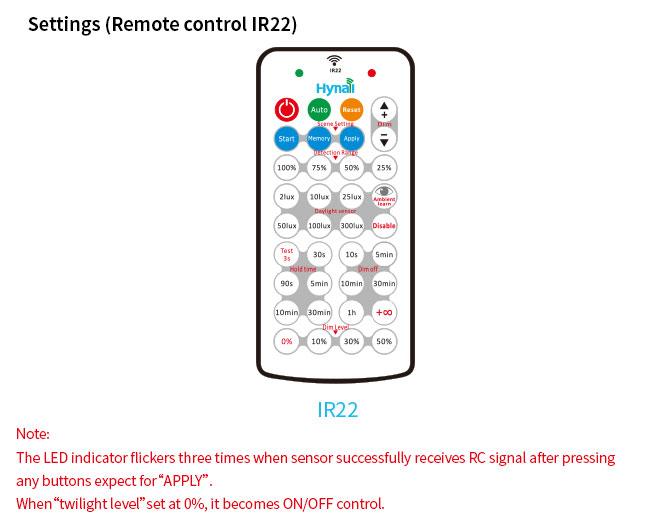

| IR remote commissioning, easy setting and user friendly. |
| Input voltage: 12-24V DC, input current: 30mA |
| Power Dim +/- Press“ Power Dim +” button to dim up the power step by step 20%-40%-60%-80%-100%. Press“ Power Dim -” button to dim down the power step by step 100%-80%-60%-40%-20%. |
Disable Press“ Disable” button, the daylight sensor will be |
