6m Mounting Microwave Sensor Detector Daylight Monitoring HNS101D 0-10v Dimming

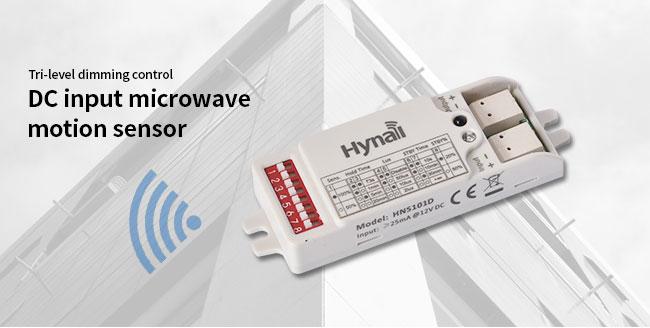

Model name: HNS101D 12V DC 1-10v dimming microwave sensor
This model is a small size low voltage microwave motion sensor with 1-10v( 0-10v can be customized) dimming function by DIP switch setting.
Advantage:
1. Super compact size, only 75.1*26.6*13.8mm, flexible to be integrated into any suitable fixtures.
2. Dual-processor technology, real lux off function for built-in application.
3. Multiple options of 8 pin DIP switch setting to meet different customer demands.
4. Customized service: Yes
Product Information:
|
Input voltage 5V, 12V, 24V DC available
Input current:≥25mA. 1~10V dimming output.
|

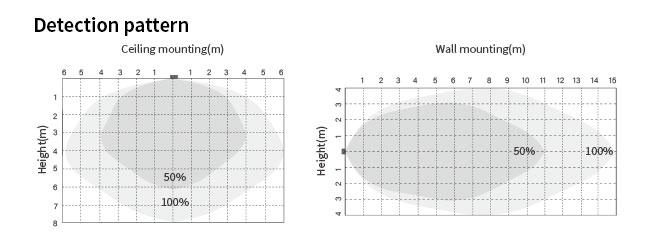

Mounting height: max. 6m Detection range: max. 12m
Operation temperature: -20 °c ~ + 70 °c.
|
|

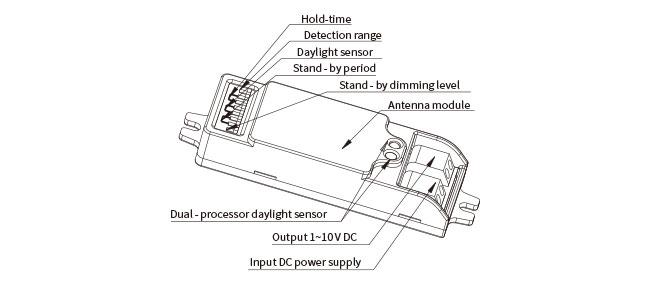

Structure
|

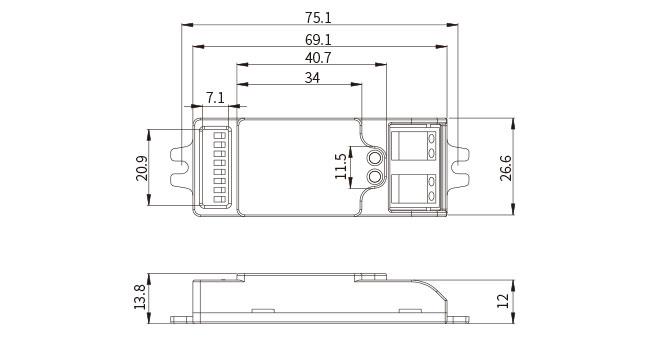

Size
|
 |
 |
| Sensitivity: 50% and 100% |  |
| Hold time: T3s (test mode), 1min, 5min, 20min |  |
|
"2lux, 10lux": The sensor works only in the dark.
"50lux": The sensor works only in twilight. "Disable": The sensor works always, even during daylight.
|
 |
|
Stand-by period: 10s, 10min, 30min, +∞
“+∞”: means bi-level dimming control, the fixture never switch off. |
 |
| Stand-by dimming: 20% and 50% |  |
