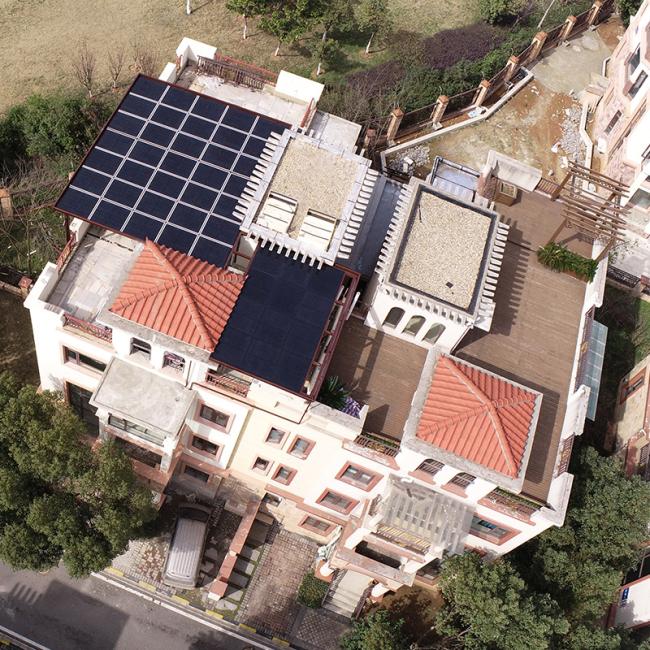

Rixin PERC Mono Bifacial Solar Panels Double Glass waterproof Solar Module For Home roof
Rixin PERC Mono Bifacial Solar Panels Double Glass waterproof Solar Module For Home roof
1). High Conversion Efficiency Solar Panels’ Cells are laminated with TPT and EVA and encapsulated with Low-iron tempered glass ensuring longer life and maximum performance
2). Anti-aging EVA, high resistant TPT to laminate and stronger anodized aluminum alloy frame
3). Strong aluminum frame withstand heavier snow load and higher wind-pressure by passing mechanical load test 2400Pa ~5400Pa ,
4). Aesthetic appearance and rugged design to withstand high wind pressure, hail and snow load ;

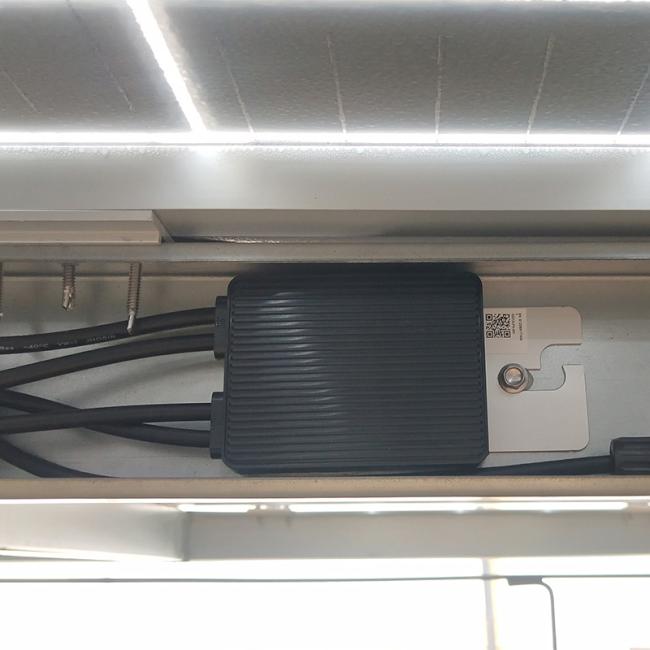

5). Ip65 Junction box with Built-in diodes prevents reverse charging and keep excellent protection ;
6). Rigorous quality control meet the highest international standards and classification of modules
7). Advanced photovoltaic technologies is resistant to atmospheric exposure and effects of delaminating;
8). The exterior design and electrical performance of each every module are fully tested to guarantee superior quality of 25years lifespan .
· Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
Features
· High Performance Solar Panel
· Monocrystalline Cells
· Low Reflection of Sunlight
· High Light Absorption
· Functions perfectly under low light or panel being partly shaded
Datasheet of High Precision Low Cost Light Steel Solar Panel Mounting Brackets
| SPECIFICATION | |||||
| Description | Ground mounting | Roof bracket | Carport | Agricultural bracket | Single column stand |
| Field status | open area | ||||
| Max wind load | ≤60m/s | / | <46m/s | <46m/s | ≤46m/s |
| Height | Depending | ||||
| Snow load | Depending | ||||
| Tilt Angle | 0~45° | As per requirement | 0~45° | 0~30° | 0~45° |
| Mount Directions | Vertical,horizontal | ||||
| Standard | GB/T2518-2008 & GB/T10125-2012 | ||||
| Body material | S550GD+Z350 | ||||
| Bolt material | SUS304 | ||||
| Base material | Q235/Cement | ||||
| Surface treatment | Galvanized mg-al | ||||
| Warranty | 10 Years | ||||
Features
Strong Corrosion Resistance.
Ground screw foundation and concrete foundation can be acceptable
Parts have been high pre-assembly on factory to save your installation time
Simple and fast installation
High quality galvanized steel material
Quick delivery
Our quality control:
1. SGS720H salt test report
2. TUV and ISO certified
3. Mass production capbility
4. Rich experience in mega project management
5. Good relation with famous industry suppliers
Our advantages:
-Light steel structure profile production lines
-Finished steel profile
Test method
-Test method: GB/T10125-2012-Sample placement: 15°~25° with vertical direction
-Settlement salt solution concentration: (50+/-5) g/l NaCl
-Temperature inside the test chamber: (35+/-2) ºC
-Settlement rate of salt spray: 1~2ml (80cm2.h)
-Settlement salt solution pH value (25ºC+/-2ºC): 6.5~7.2-Exposure time: 720 hours (check once every 96 hours)
-Cleaning method: natural dry for 0.5~1.0 hours, then rinse with water of temperature not higher than 40ºC, then dry immediately.
Why choose us for your solar system PV mounting brackets?
-Super anti-rusting performance
-High precision of structure material
-Save raw material, and cost 20%
-20GW Yearly production capacipty, ensures short lead production time
-Perfect finish of structure material, hence the nice solar mounting effect
