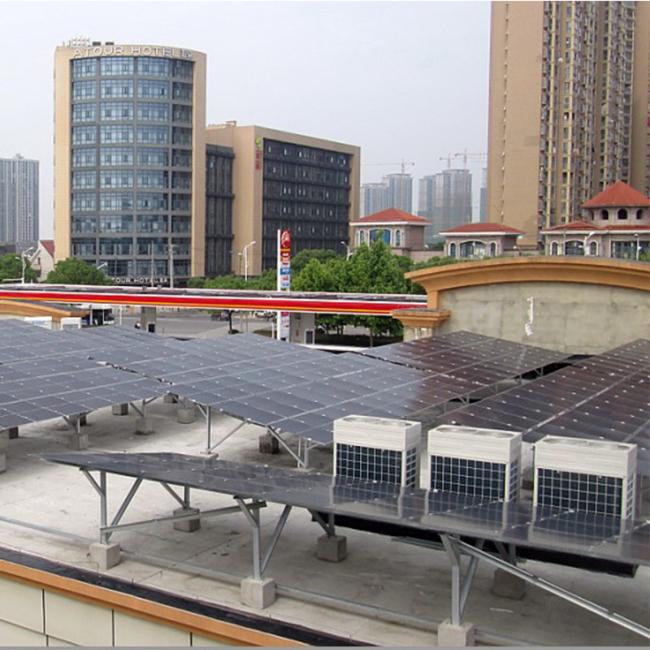

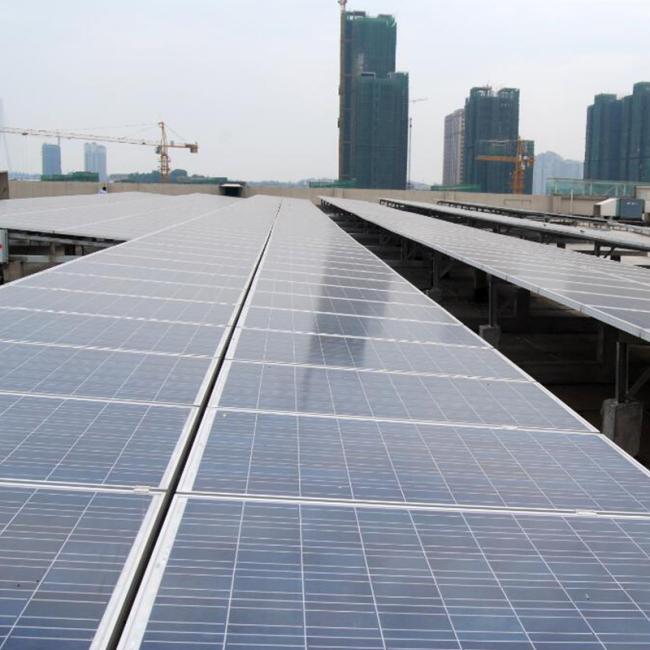

30 Years Lifetime Bifacial Solar Panels Gas station industrial and commercial roof PV Module System
30 Years Lifetime Bifacial Solar Panels Gas station industrial and commercial roof PV Module System
Mono Bifacial Double Glass Module DDG(P)530-550(k)
| Model | DDG(P)530(k) | DDG(P)535(k) | DDG(P)540(k) | DDG(P)545(k) | DDG(P)550(k) |
| Maximum power(Pm/Wp) | 530 | 535 | 540 | 545 | 550 |
| Maximum power voltage(Vmp/V) | 41.64 | 41.87 | 42.09 | 42.32 | 42.54 |
| Maximum power current(lmp/V) | 12.73 | 12.78 | 12.83 | 12.88 | 12.93 |
| Open circuit voltage(Voc/V) | 49.65 | 49.78 | 49.91 | 50.12 | 50.34 |
| Short circuit current(Isc/A) | 13.48 | 13.53 | 13.58 | 13.63 | 13.68 |
| Module efficient(%) | 20.45 | 20.64 | 20.83 | 21.03 | 21.22 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 144 pcs |
| Cell size (mm) | 182*91 |
| Glass thickness (mm) | 2.0 |
| Frame | Anodized alaminum alloy |
| Cable | 4m㎡ negetive300mm, positive300mm |
| Module weight (kg) | 32.1 |
| Module dimension (L*W*H)(mm) | 2285*1134*35mm |
| Packing | 31pcs/pallet |
Quality parameters
| Module working temperature range (℃) | -40~ +85 |
| Power tolerance(W) | 0~+5 |
| Maximum system voltage(V) | DC1500 |
| System maximum protection current(A) | 25 |
| NOCT(℃) | 45±2 |
| Front/rear static loads(Pa) | 2400 / 5400 |
| Junction box/Connector | Ip68,split / MC4 compatible |
Temperaturecoefficient(STC)
| Temperature coefficient of Voc | -0.3%/℃ |
| Temperature coefficient of Isc | +0.06%/℃ |
| Temperature coefficient of Pm | -0.39%/℃ |
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5 | |
Quality warranty
12-year material & workmanship warranty
30-year linear power warranty
| SPECIFICATION | |||||
| Description | Ground mounting | Roof bracket | Carport | Agricultural bracket | Single column stand |
| Field status | open area | ||||
| Max wind load | ≤60m/s | / | <46m/s | <46m/s | ≤46m/s |
| Height | Depending | ||||
| Snow load | Depending | ||||
| Tilt Angle | 0~45° | As per requirement | 0~45° | 0~30° | 0~45° |
| Mount Directions | Vertical,horizontal | ||||
| Standard | GB/T2518-2008 & GB/T10125-2012 | ||||
| Body material | S550GD+Z350 | ||||
| Bolt material | SUS304 | ||||
| Base material | Q235/Cement | ||||
| Surface treatment | Galvanized mg-al | ||||
| Warranty | 10 Years | ||||
Rixin Solar Galvanized Steel Ground Mount System is available for your agricultural, commercial, and residential applications. This systems makes solar power accessible without the need of a roof for installation. Ground-mounted solar system is affordable, durable, efficient and quick to install.
Test method
-Test method: GB/T10125-2012-Sample placement: 15°~25° with vertical direction
-Settlement salt solution concentration: (50+/-5) g/l NaCl
-Temperature inside the test chamber: (35+/-2) ºC
-Settlement rate of salt spray: 1~2ml (80cm2.h)
-Settlement salt solution pH value (25ºC+/-2ºC): 6.5~7.2-Exposure time: 720 hours (check once every 96 hours)
-Cleaning method: natural dry for 0.5~1.0 hours, then rinse with water of temperature not higher than 40ºC, then dry immediately.
