Transparent High Power Solar Panels Efficiency 22.3% Thermal Double Glass
Rixin Transparent High Power Solar Panels Efficiency Up to 22.3% Thermal Double-glass Solar Panels Set
With core products covering N-type mono bifacial double glass solar panel, high efficiency Perc mono double glass solar panel, mono/poly double glass solar panel, Perc mono/poly framed solar panel, utility-scale solar power station etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Based on this strategic thinking, Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become one of the largest PV companies in terms of its scale and the leading expertise in China.
We use top-quality solar cells and EVA,TPT,strengthen glass,seal silicion etc. Our experienced staffs work together well to assurance quality under effective ISO system. We have IEC61215, IEC61730 certificates, CE, to assure our quality. Our products are exported to Europe, America and other Asian countries with safety certificates.
With many years development as a trustworthy manufacturer, Rixin Technology’s products enjoy high reputation in the world market.We have attended many exibitions each year.

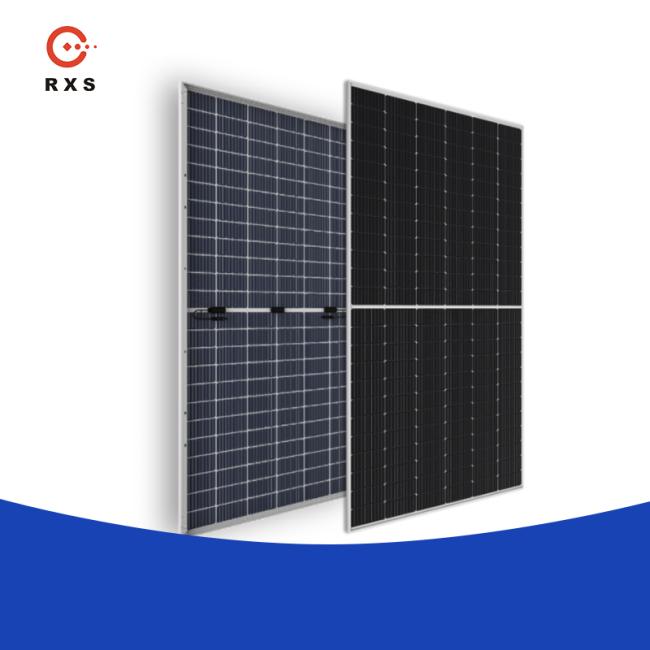

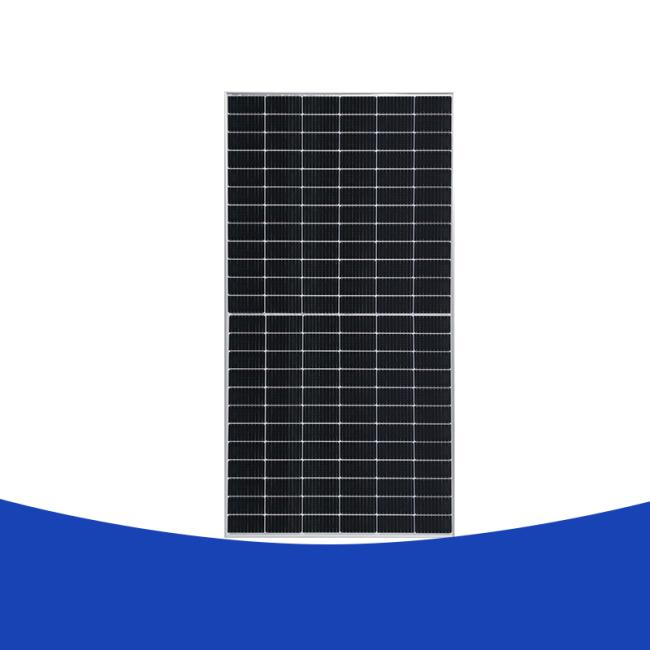

Mono Bifacial Double Glass Module DDG(P)530-550(k)
| Model | DDG(P)530(k) | DDG(P)535(k) | DDG(P)540(k) | DDG(P)545(k) | DDG(P)550(k) |
| Maximum power(Pm/Wp) | 530 | 535 | 540 | 545 | 550 |
| Maximum power voltage(Vmp/V) | 41.64 | 41.87 | 42.09 | 42.32 | 42.54 |
| Maximum power current(lmp/V) | 12.73 | 12.78 | 12.83 | 12.88 | 12.93 |
| Open circuit voltage(Voc/V) | 49.65 | 49.78 | 49.91 | 50.12 | 50.34 |
| Short circuit current(Isc/A) | 13.48 | 13.53 | 13.58 | 13.63 | 13.68 |
| Module efficient(%) | 20.51 | 20.71 | 20.90 | 21.1 | 21.3 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 144 pcs |
| Cell size (mm) | 182*91 |
| Glass thickness (mm) | 2.0 |
| Frame | Anodized alaminum alloy |
| Cable | 4m㎡ negetive300mm, positive300mm |
| Module weight (kg) | 32.1 |
| Module dimension (L*W*H)(mm) | 2278*1134*35mm |
| Packing | 31pcs/pallet |
Quality parameters
| Module working temperature range (℃) | -40~ +85 |
| Power tolerance(W) | 0~+5 |
| Maximum system voltage(V) | DC1500 |
| System maximum protection current(A) | 25 |
| NOCT(℃) | 45±2 |
| Front/rear static loads(Pa) | 2400 / 5400 |
| Junction box/Connector | Ip68,split / MC4 compatible |
Temperaturecoefficient(STC)
| Temperature coefficient of Voc | -0.3%/℃ |
| Temperature coefficient of Isc | +0.06%/℃ |
| Temperature coefficient of Pm | -0.39%/℃ |
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5 | |
Quality warranty
12-year material & workmanship warranty
30-year linear power warranty
RFQ
Q1 : What about delivery time?
A : Goods : 7-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
- year linear power warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 21 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
