Stainless Steel Pneumatic Double Diaphragm Fuel Pump 70m Lift 335L/Min

Stainless Steel Pneumatic Duoble Diaphragm Pump / Fuel Pump Diaphragm


Compressed Air Diaphragm Pump Introduction

Compressed Air Diaphragm Pump were designed to resolve numerous problems that pumpers’ face on a job site. Whether you have limited space, are moving fluids with mixed solids or compositions, or require a safe priming pump system for your job, our AOD pumps provide a portable solution to get the job done.

Operating through a dual-diaphragm fluid chamber, positive displacement creates an air vacuum, initiating quick priming with minimal effort. Once primed, air operated diaphragm pumps are capable of passing up to 1-¼ inch solids (up to 90% solid composition) and highly viscous fluids with ratings exceeding 25,000 cPs. AOD Pumps’ fluid handling, portability and durability make them a versatile pump for any job application.

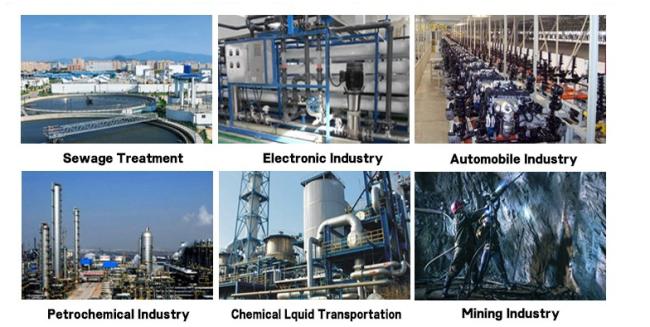

Compressed Air Diaphragm Pump Application

Large solid particle transmission

Abrasive medium

dangerous and flammable liquid

Clean room liquid

Product Advantages
1.Providing stall-free, ice-free operation
2.Idling ,self-priming ,submerse capability.
3.Offering the ability to vary the flow outlet and discharge pressure .

Compressed Air Diaphragm Pump Parameters



A 40 X X - X X X - X   (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel   T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy   CI- Carbon Steel P/K –Polypropylene/Kynoar


Maximum Applied Temperature Limits (diaphragm / ball / seal material)


Acetal ···············································40°-         150°F        (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C)   ················································40°- 220°F (4.4°- 104°C)   Nitrile················································10°- 180°F (-12°- 82°C)   Viton·················································-40°- 350°F (-40°-176.6°C)   Hytrel·················································-20°-150°F (-12°- 93°C)   Kynar·················································10°-200°F (-28.9°- 65.5°C)   Polypropylene·······································32°- 175°F (0-79.4°C)


1.5" Flow diagram
