12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier
12v 200 amp plating rectifier for Zinc Nickel Copper Gold plating
Specification
| SPECIFICATIONS FOR GKD12-200CVC | |||
| Input AC | 380V±10% | 1 phase | 50/60Hz |
| Output DC | Volt | 0~12V Adjustable | |
| Current | 0~200A Adjustable | ||
| Power | 2.4KW | ||
| Efficiency | >85% | ||
| output Frequency | 40KHz fixed | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection |
||
| Working Condition (Temperature) |
-10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 25kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 520*395*165mm | Cooling way |
air cooling |
Features
1. Small size, light weight, electricity-saving, high accuracy
2. The communication interface can be provided
3. Duration control can be provided
4. Douch screen can be provided
5. Control mode: Local control or Remote control(the length of cable is determined by customers)
6. Japan IGBT(the default choice) or Germany IGBT are adopted
7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
8. Easy to operate and repaire
Product picture:
Application:

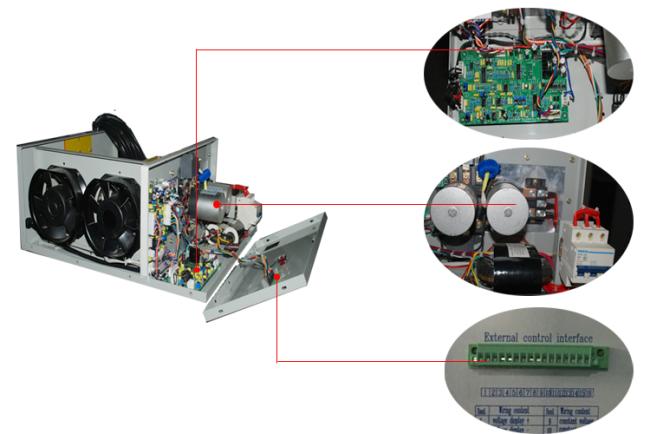

Installation
|
Cabinet: Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |
Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
|
Radiator: radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
|
Main transformer: adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |
Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
|
Board : all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: IGBT capacity expanded 3 times,make the power supply more reliable |
produce process :
From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.
