Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution
| Feature | Specification |
|---|---|
| Sampling method | Pump suction |
| Gas type | CH4O |
| Measure range | 0-100%LEL |
| Resolution | 1%LEL |
| Response time | ≤10 seconds |
| Precision | ≤±1%F.S |
| Language | English (Other languages can be customized) |
| Automatic functions | Test and calibrate after power-on including reset, MAX, MIN, STEL, TWA values |
| Unit options | PPM and mg/m³ switchable |
| Display | Monochrome graphics (160 x96), auto-flipping screen |
| Backlight | Manually settable, auto-on during alarms |
| Data record | 100,000 data sets storage, adjustable interval (5-3600 seconds), exportable |
| Alarm system | 95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarms, battery undervoltage, pump block, man down with early warning, optional Bluetooth notification |
| Battery | 3.7V 2200mAh rechargeable lithium |
| Working time | 15+ hours continuous pumping |
| Charger | Travel charger with DC interface (≥4 hours charging) |
| Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 Ga), CNEX:Ex ia IIC T4 Ga |
| Certifications | 2004/108/EC(EMC), 1995/5/EC(Radio), 94/9/EC(ATEX) |
| Protection grade | IP67/IP68 |
| Operating conditions | -20ºC to +50ºC, 0-90%RH (no condensation), 86-106Kpa |
| Dimensions | 157×84.5×59.5mm (including accessories) |
| Weight | 365g (including battery and accessories) |
| Bluetooth (Optional) | Real-time data transmission to mobile/PC for O2, LEL, H2S, CO, CO2 |

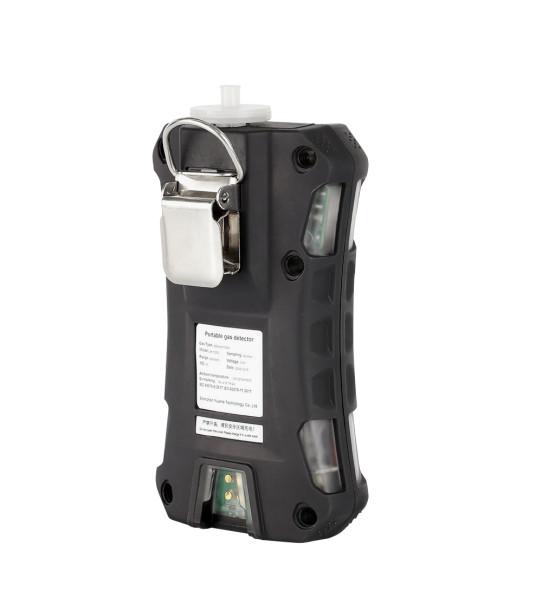

The SKY3000 series is a high-performance portable gas detector capable of simultaneous detection of multiple gases (Oxygen compounds, VOC, combustible and toxic gases) with man down alarm functionality. The device features intuitive operation including one-key security detection, automatic storage, screen flipping, and optional Bluetooth transmission for real-time data monitoring.
Certified to international IECEX and ATEX explosion-proof standards with IP67 protection rating, the SKY3000 features antistatic protection, modular design for rapid detection, and ergonomic portability. The instrument primarily operates in suction mode with automatic failover to diffusion sampling when required.
With explosion-proof grade Ex ia IIC T4 Ga, the SKY3000 is suitable for Zone 0, 1, and 2 hazardous areas with gas groups ⅡA, ⅡB, ⅡC and temperature classes T1-T4.
This industrial-grade gas detection solution is widely used in:
- Petrochemical & Chemical Industry
- Municipal Engineering & Utilities
- Agricultural & Environmental Protection
- Electronics Manufacturing
- Food & Pharmaceutical Industry
- Gas detector (1 unit)
- 12V/1A DC power adapter (1 unit)
- USB cable (1 unit)
- User manual (1 copy)
- Warranty card (1 copy)
- Filter (1 unit)
- Aluminum carrying case (1 unit)
- 25+ years R&D team experience
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx (China exclusive), ATEX, CE
- Fast delivery: 5-7 days
- Annual production capacity: 80,000 units
- Professional 24/7 customer support
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in gas detection equipment design, manufacturing, and sales with 16 years of industry experience. Our comprehensive product line serves oil, chemical, pharmaceutical, energy, environmental, electronics, municipal, agricultural, and household applications.
Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001 certified. Our products meet international safety standards.
