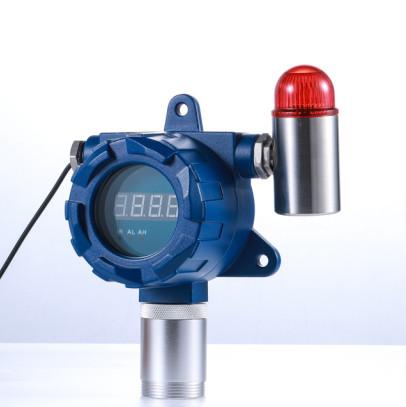

Industrial Grade Fixed PH3 Gas Detector Support Wireless Transmission High-precision Explosion-proof Grade Ex D IIC T6 Gb
High-precision Fixed PH3 Gas Detector with diffusion detection principle, designed for industrial safety applications.
YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. A 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol makes it compatible with most control systems. Third-party products such as horns, warning lights, and fans are compatible with our components and integrated by us into the system. With optional wireless function, operators can view data on laptop, mobile phone, or cloud system remotely.
- Online monitoring with sound/light alarm (Optional) - 24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm point is settable
- Non-contacted control the device - With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification
- Variety of installation methods - 4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices
- Data transmission - Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data. Wireless data transmission including Lora, 4G (Optional)
- High quality case - Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations. IP65 protection degree, water-proof, dust-proof, explosion-proof
| Parameter | Details |
|---|---|
| Gas Detected | PH3 |
| Detection Principle | Electrochemical |
| Measure range | 0-100PPM |
| Resolution | 0.1PPM |
| Accuracy | ≤±2-5%FS (depending on the specific sensor) |
| Response time(T90) | 15-30s (depending on the specific sensor) |
| Repeatability | ≤±1% |
| Zero shift | ≤±1% (F.S./year) |
| Display | 4 digits Nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe |
| Thread Size | M45*2mm |
| Temperature | -20℃ ~ 50℃ |
| Humidity | 0-95%RH (no condensation) |
| Material Case | Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-36V DC |
| Dimensions | 180×150×90mm |
| Weight | ≤1.6kg |
| Explosion-proof grade | Ex d IIC T6 Gb |
- R&D team experience: over 25 years
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx, ATEX, CE
- Delivery time: 5-7 days
- Annual capacity: 80,000 units
- Professional 7*24 hours customer service
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
