IECEx and ATEX Certified Portable O2 Gas Detector with 0-30%VOL Range and 2-Year Standby Time
The MiniMeta is a certified single gas detector (IECEx, ATEX, EMC) designed for reliable oxygen measurement in explosive atmospheres. It continuously monitors oxygen (O₂) concentration across a range of 0-30% VOL with a fine resolution of 0.1% VOL, helping users detect both oxygen deficiency (hypoxia) and oxygen enrichment (hyperoxia).
Powered by a 3.6V dry battery (non-rechargeable, replaceable), the device achieves an industry-leading 2-year standby time without requiring battery charging or calibration during normal operation. This makes MiniMeta a low-cost, long-term ownership solution for safety professionals.
The detector uses an electrochemical sensor with diffusion sampling - no pump, no moving parts - ensuring maintenance-free operation. Response time (T90) is 15-30 seconds with accuracy ≤ ±2-5% FS.
A self-test function automatically checks sensor and battery status on power-up, enhancing safety before each use. An optional docking station is available for daily bump tests and calibration.
- IECEx, ATEX, and EMC certified for hazardous explosive atmospheres worldwide
- Explosion-proof grade: Ex ia IIC T4 Ga
- Protection class: IP66/IP68 - fully dust-tight and submersible
- Gas detected: O₂ (oxygen)
- Measuring range: 0 - 30% VOL
- Resolution: 0.1% VOL
- Principle: Electrochemical, diffusion sampling
- Accuracy: ≤ ±2-5% FS (sensor dependent)
- Response time (T90): 15 - 30 seconds
- Power supply: 3.6V dry battery (non-rechargeable, replaceable)
- Standby time: 2 years - no battery charge or calibration needed
- Alarm mode: Sound (95dB @30cm) + Light (2 high-bright red LEDs) + Vibration
- Alarm types: Low alarm, high alarm, STEL, TWA, low battery
- Operating temperature: -20°C to +55°C
- Operating humidity: 0 - 95% RH (non-condensing)
- Weight: 125g (including clip and battery)
- Compact size with back clip for easy wear
- Self-test function - automatic sensor/battery check on power-up
- Optional event and data logging
- Optional docking station for daily bump test and calibration
- Real-time display of O₂ reading, TWA, STEL, MAX, MIN
IP66/IP68 water and dust resistant case - withstands harsh industrial environments.
Ex ia IIC T4 Ga explosion-proof certification for hazardous areas.
2-year standby time on a single 3.6V dry battery.
No battery charging required; battery is field-replaceable.
No calibration needed during the 2-year standby period.
Replaceable sensor extends device service life.
Optional docking station simplifies daily bump tests and calibration.
95dB buzzer + two high-bright red LEDs + vibration alarm.
Real-time display of O₂ reading, TWA, STEL, MAX, MIN.
Lightweight (125g with clip) and small form factor.
Back clip for easy attachment to clothing or belts.
Automatic self-test on power-up verifies sensor and battery status.

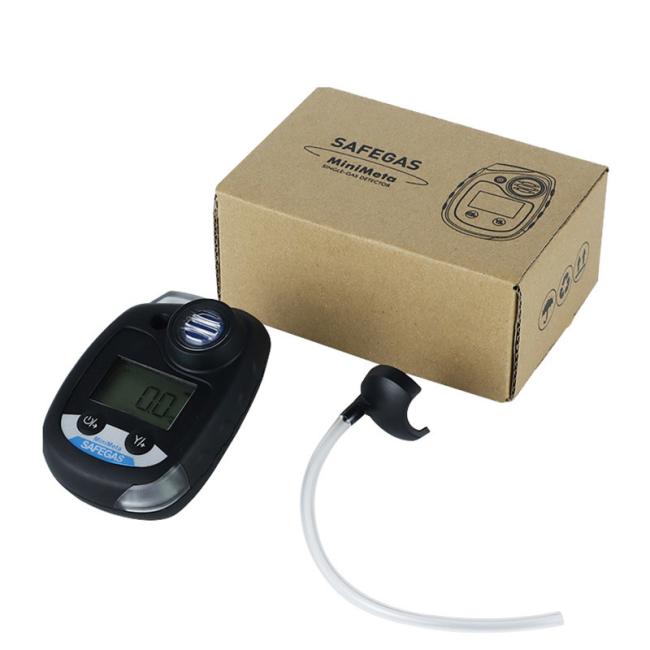

| Item | Quantity |
|---|---|
| Portable gas detector (O₂) with pre-installed sensor and battery | 1 unit |
| Calibration cap | 1 piece |
| User manual | 1 copy |
| Certificate of conformity / Warranty card | 1 piece |
Optional accessories: Docking station for bump test/calibration, event/data logging module.
- Confined space entry - Tanks, silos, sewers, pipelines, manholes
- Industrial safety - Chemical plants, refineries, steel mills
- Laboratories - Fume hoods, glove boxes, inert gas areas
- Environmental monitoring - Oxygen deficiency/enrichment detection
- Wastewater treatment - Digesters, lift stations
- Mining & tunneling - Underground ventilation monitoring
Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances.
All products are manufactured under ISO9001 and ISO45001 management systems, holding international certifications such as IECEx, ATEX, and EMC. With an annual production capacity of over 80,000 units, YuanTe Technology supplies gas detection solutions to customers worldwide.
- Established since 2010 - Over 16 years of experience in gas detection R&D and manufacturing
- Full product range - Portable detectors, fixed transmitters, analyzers, control panels, accessories
- International certifications - IECEx, ATEX, EMC certified for hazardous areas
- Wide gas & industry coverage - Hundreds of gases; serve oil & gas, chemical, mining, environmental, food, pharma, and more
- Strong R&D & quality - ISO9001 & ISO45001 certified; professional R&D team and global service network
- High production capacity - Over 80,000 units per year with fast delivery (5-7 working days typical)
- Global customer support - 24/7 after-sales service and solutions tailored to diverse industries
