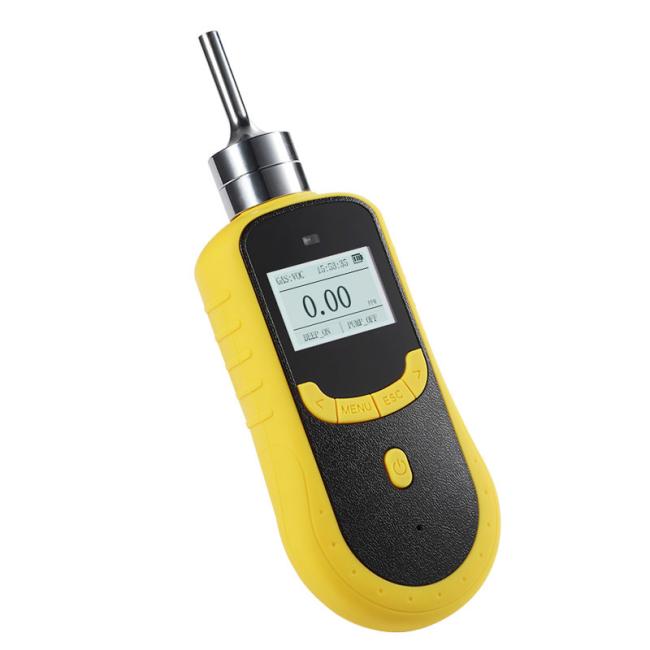

SKY2000-C2H4 Portable Ethylene Detector with 0-100ppm Range 0.1ppm Resolution and Sound/Light/Vibration Alarm
Portable Pumping Gas Analyzer for Freshness Preservation
The SKY2000-C2H4 is a portable, pump-driven gas detector specifically designed for accurate measurement of ethylene (C₂H₄) concentration. Based on the reliable SKY2000 series platform, this device combines fast response, high precision, and excellent portability. It is ideal for applications in petrochemical plants, fruit ripening rooms, agricultural greenhouses, and industrial safety monitoring.
- High Accuracy & Fast Response – Equipped with an electrochemical C₂H₄ sensor, providing a measurement range of 0–100ppm and a fine resolution of 0.1ppm. Response time ≤20 seconds ensures real-time detection.
- Built-in Sampling Pump – Integrated pump delivers fast sampling speed and high flow rate, enabling quick gas extraction even from confined spaces or remote areas.
- Robust & Safe – Explosion-proof certified (Ex ia IIC T4 Ga) with IP66 protection rating. High-strength engineering plastic housing withstands harsh industrial environments.
- User-Friendly Operation – LCD dot matrix display with backlight supports Chinese/English interface. One-key restoration to factory settings, plus zero and span calibration functions for reliable performance.
- Data Logging (Optional) – Capable of storing up to 100,000 readings; data can be exported to PC via USB for further analysis.
| Parameter | Value |
|---|---|
| Gas Detected | Ethylene (C₂H₄) |
| Detection Principle | Electrochemical |
| Measurement Range | 0 – 100 ppm |
| Resolution | 0.1 ppm |
| Precision | ≤ ±1–5% F.S. (typical for electrochemical gases) |
| Response Time | ≤ 20 seconds |
| Repeatability | ≤ ±1% |
| Zero Shift | ≤ ±1% F.S./year |
| Recovery Time | ≤ 10 seconds |
| Linearity Error | ≤ ±1% |
| Operating Temperature | -20℃ – +50℃ |
| Operating Humidity | 0–95% RH (non-condensing) |
| Alarm Mode | Sound, light, vibration |
| Display | LCD dot matrix with backlight |
| Data Logging | Optional (100,000 records, USB export) |
| Pump Operating Time | 100 hours (pump off) |
| Degree of Protection | IP66 |
| Explosion-Proof Grade | Ex ia IIC T4 Ga |
| Dimensions | 205 × 75 × 32 mm |
| Weight | 300 g |
- Directly measures ethylene with electrochemical precision – no cross-interference from common industrial gases.
- Pumped sampling allows flexible operation in ducts, tanks, or hard-to-reach areas.
- Long-term stability with minimal drift, reducing maintenance frequency.
- Lightweight and portable (300g) – easy to carry for spot checks or continuous monitoring.
- Ethylene leak detection in petrochemical storage and transportation
- Controlled atmosphere monitoring in fruit ripening and cold storage facilities
- Plant growth research and greenhouse environmental safety
- Industrial hygiene and confined space entry
