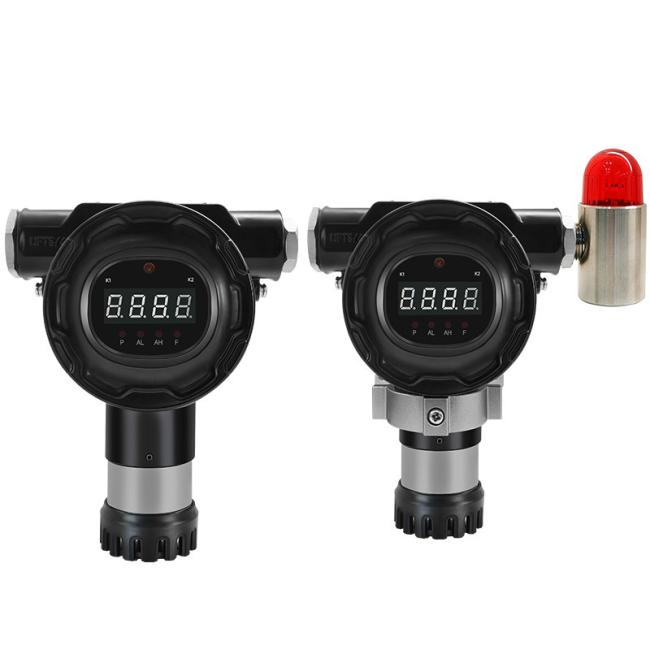

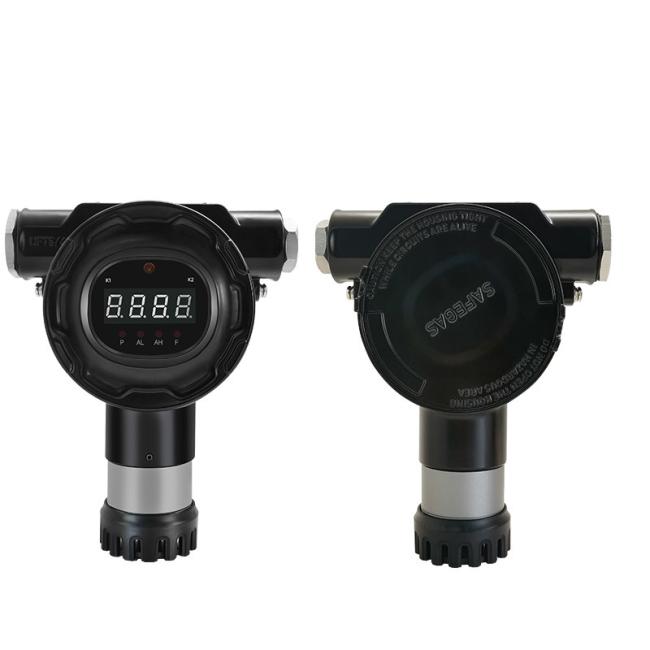

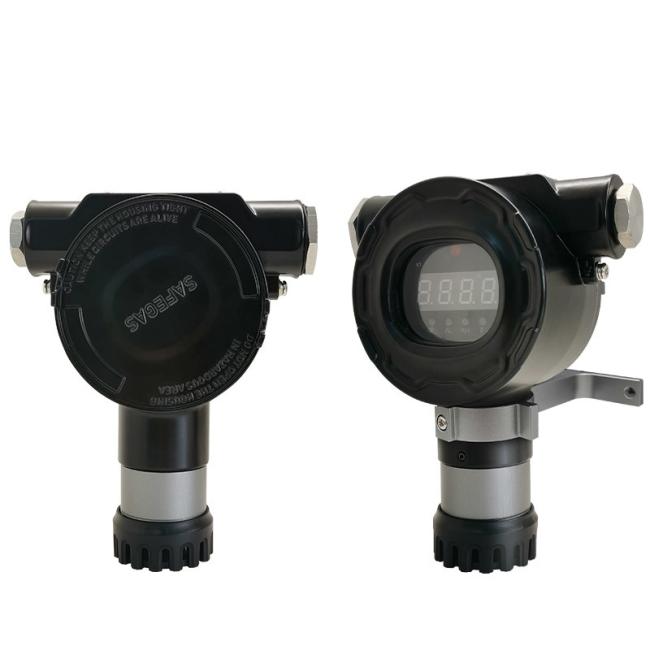

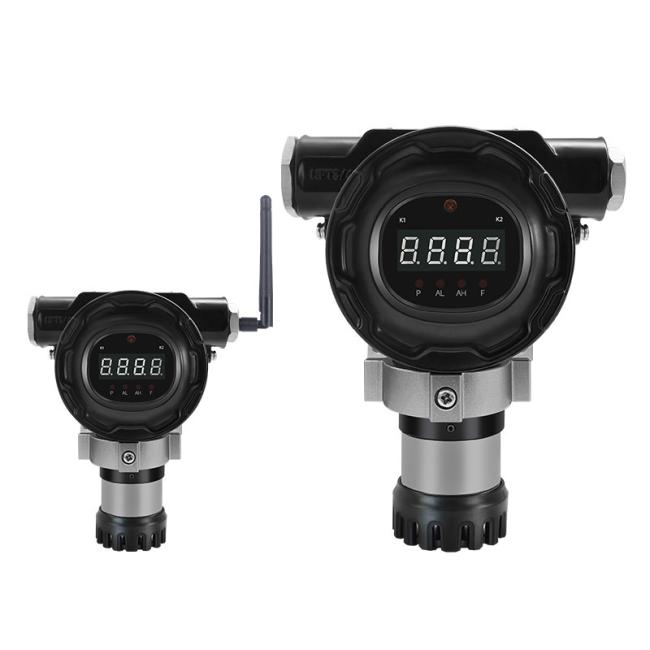

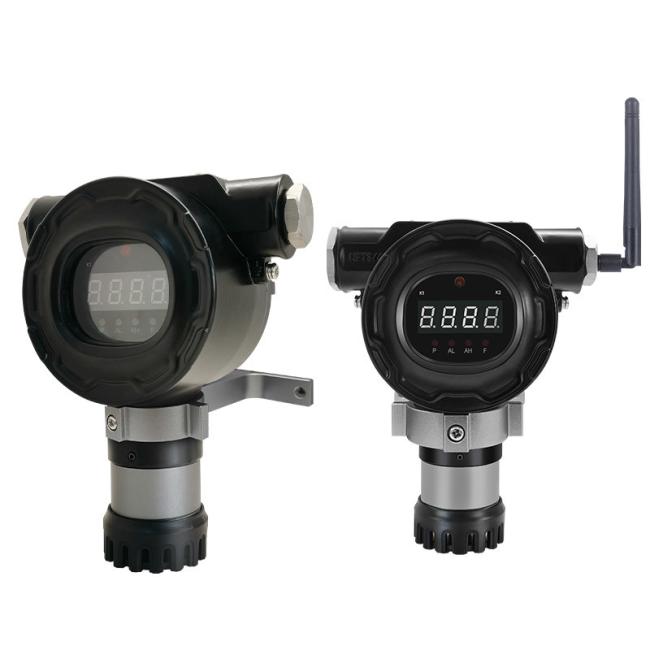

IECEx/ATEX Certified SG100 Ozone Transmitter – 0-100ppm, IP66/IP68, 3 Relay Options, Magnetic Wand Config

The SG100 series is a cost-effective, IECEx/ATEX certified fixed gas detector for continuous monitoring of toxic gases, oxygen, flammable gases and VOC. It offers both 2-wire and 3-wire 4-20mA analog output, RS485 Modbus, and optional HART output, making it compatible with most control systems (PLC, DCS, SCADA). Optional wireless data transmission (LoRa/4G) allows remote data review and download.

For ozone (O₃) monitoring – a powerful oxidant used in water treatment, air purification and industrial processes – the SG100 uses an electrochemical sensor with selectable measuring ranges of 0–10, 0–20, 0–50 or 0–100 ppm and a fine resolution of 0.01 ppm. Accuracy is ≤ ±2-5% FS (sensor dependent).

Ozone is a pale blue gas with a pungent odor. It is widely used for disinfection of drinking water and wastewater, air purification, food processing, and bleaching. However, ozone is a strong oxidizer and harmful to human health: short-term exposure can cause throat irritation, coughing, and reduced lung function; prolonged exposure may lead to chronic respiratory diseases. Reliable ozone detection is essential in treatment plants, industrial hygiene, and indoor air quality monitoring.

• Electrochemical sensor for O₃ – Ranges 0-10/20/50/100ppm, resolution 0.01ppm.
• Flexible outputs – 2-wire or 3-wire 4-20mA, RS485 Modbus, optional HART.
• Optional 3 relays – Low/high/fault alarm relay for external device control.

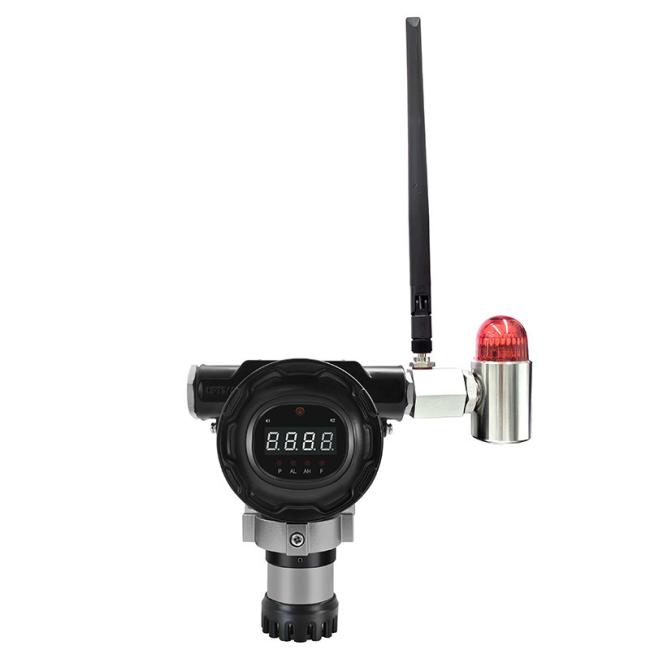

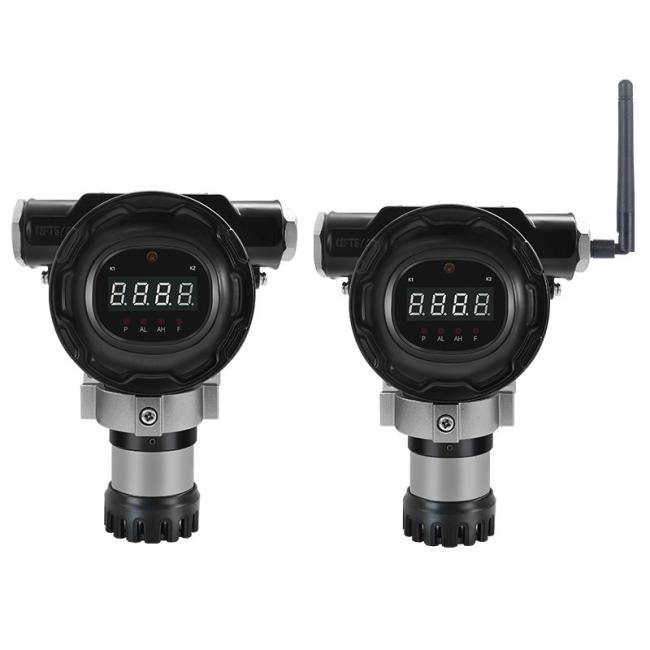

• Optional wireless – LoRa or 4G for remote data access.
• Plug-and-play sensor module – Easy replacement, calibration via PC software.
• Non-intrusive configuration – Magnetic wand + remote control (safe for hazardous areas).
• Rugged & protected – IP66/IP68, die-cast aluminum housing, splash guard included.
• Compact & lightweight – 1.0 kg, comes with mounting bracket.
• Wide temperature range – Electrochemical sensor works from -20°C to +50°C.
• Certified safe – IECEx/ATEX Ex db IIC T6 Gb, Ex db ia IIC T6 Gb.

• Water & wastewater treatment plants – Ozone disinfection byproduct monitoring.
• Food & beverage industry – Ozone sanitation in bottling and cold storage.
• Indoor air quality – Offices, public buildings with ozone-generating equipment.
• Pharmaceutical manufacturing – Cleanroom sterilization areas.
• Industrial hygiene – Worker exposure monitoring in printing, bleaching and chemical industries.
• Semiconductor fabrication – Ozone used in wafer cleaning.
