Diffusion-type NH3 Single Gas Detector Portable Gas Detector with CPA IECEx ATEX ISO9001 Certificate
Minimeta-NH3
Product Overview
Technical parameters
|
Item |
Specification |
|
Product Type |
Diffusion Ammonia Gas Detector |
|
Sampling Method |
Diffusion |
|
Gas Type |
NH₃ (Ammonia) |
|
Detection Principle |
Electrochemical Principle |
|
Measuring Range |
0~100, 200, 500, 1000 ppm |
|
Resolution |
0.1, 1 ppm |
|
Response Time |
≤30s (T90) |
|
Accuracy |
≤±3%FS or ±10% (depends on specific sensor) |
|
Alarm Mode |
95dB (@30cm) alarm sound; multi-alarm types including high alarm, low alarm, TWA and STEL; sound, light and vibration alarm. High and low alarm thresholds can be set via upper computer and calibration platform. |
|
Battery Life |
More than 2 years under normal use, no charging required, replaceable battery |
|
Communication Method |
Infrared transmission |
|
Upper Computer |
Configuration modification, function test and calibration via docking station (optional) |
|
Calibration Platform |
DKM-MiniMeta automatic calibration platform for parameter configuration, function test and calibration (optional) |
|
Storage & Settings |
Automatically store 60 alarm events |
|
Explosion-proof Certification |
IECEx, ATEX and Chinese explosion-proof certifications |
|
Metrological Certification |
CPA Certificate |
|
Explosion-proof Grade |
Ex ia IIC T4 Ga / Ex ia I Ma, suitable for Zone 0, Zone 1 and coal mine area detection |
|
Ingress Protection |
IP66/IP68 |
|
Display Interface |
Gas name, concentration unit, measured value, battery level |
|
Operating Temperature |
-20℃～50℃ |
|
Operating Humidity |
0-95%RH (non-condensing) |
|
Overall Dimension |
90*60*33mm (LWH) |
|
Host Weight |
125g |
|
Warranty |
1 year |

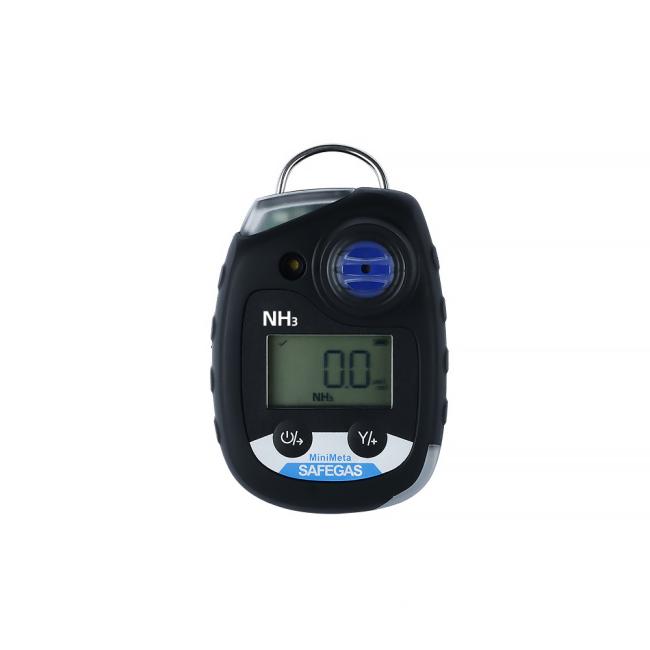

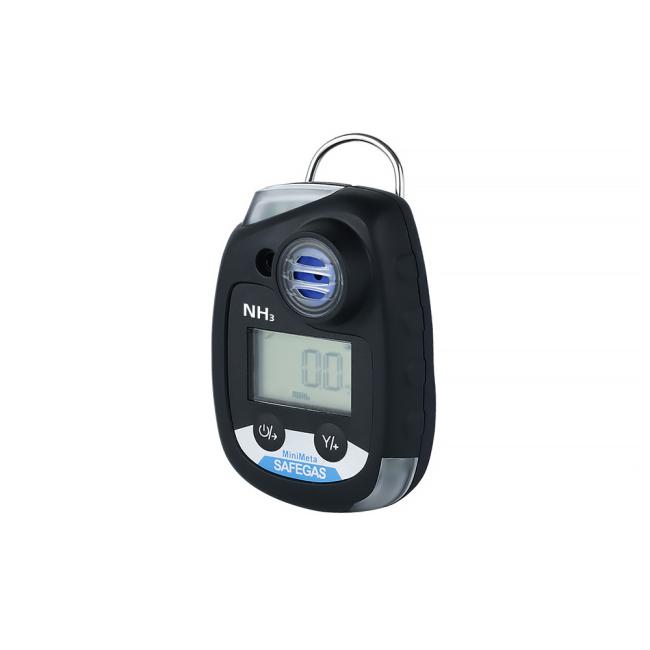

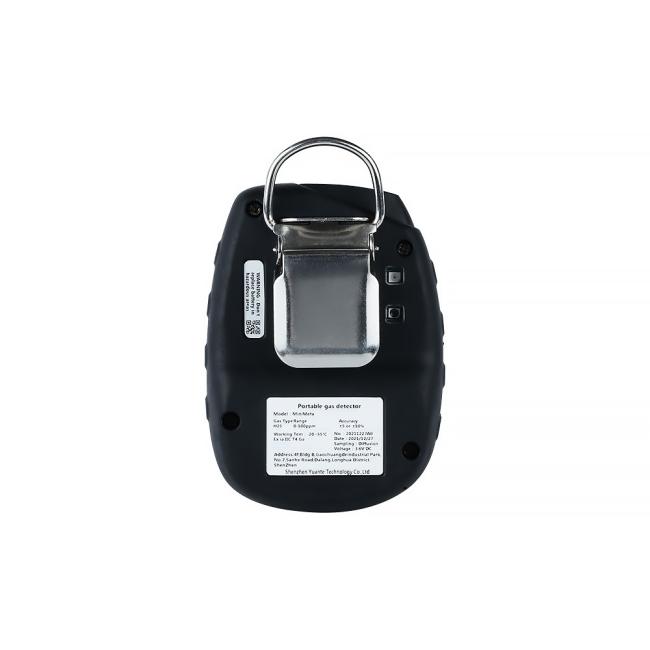

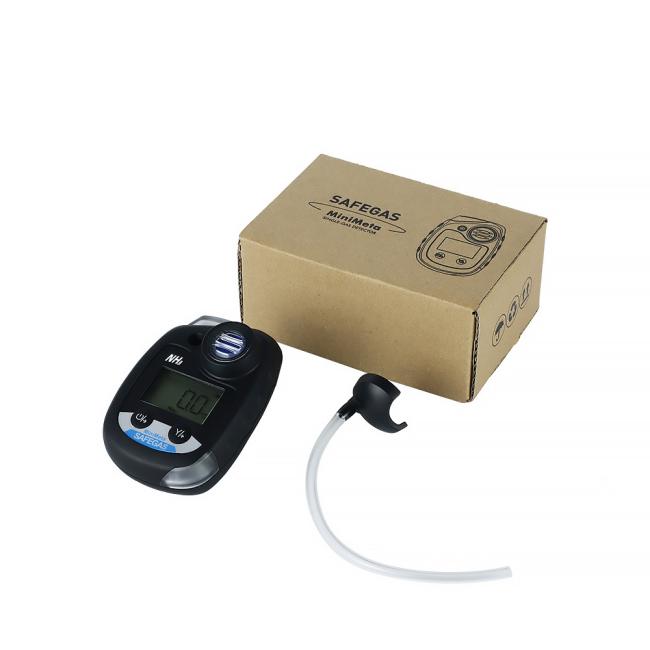

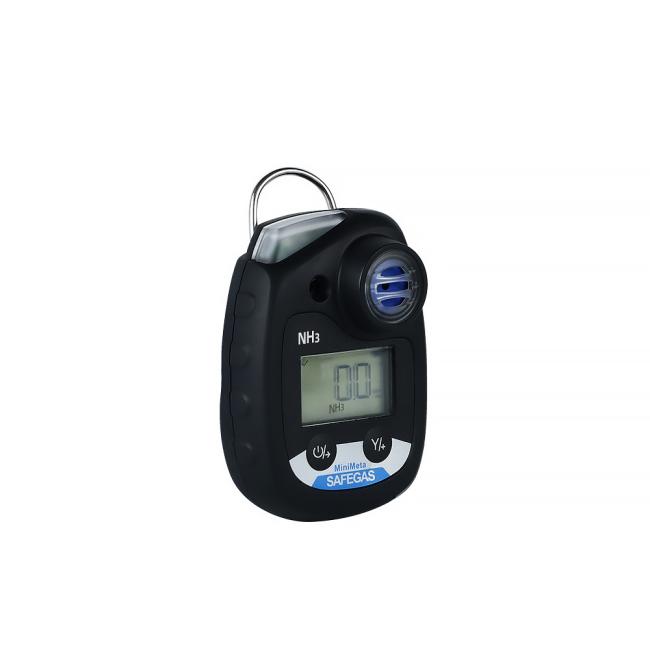

Product Images
Scenario Application
In the refrigeration industry chain, liquid ammonia is commonly used for refrigeration However, liquid ammonia has strong corrosive effects, strong irritants, and suffocation effects, so it is necessary to detect its leakage
Thermal power plant: a denitrification treatment for flue gas exhaust ( ammonia is a common denitrification agent)
Agriculture: mainly requires some breeding farms
Chemical industry, environmental protection, automotive
