939861 PVE27L-2-22-C25V-21 Eaton PVE19 Series Piston Pump
Price:
On request
MOQ:
1
Delivery Time:
7-10days
Brand:
Eaton Vickers
Product Description
Eaton PVE piston pumps
are inline, variable displacement pumps that are available in three displacement sizes. An assortment of optional controls offer maximum operating flexibility. Pump displacement is varied by means of pressure and/or flow compensator controls
Preparation for Start-up
Before starting a PVE pump, fill the case through the uppermost drain port with clean system hydraulic fluid. The case drain line must be connected to the reservoir below oil level. For multiple pump arrangements that include non-PVE sections, the requirements of the non-PVE units must also be considered.
Before starting a PVE pump, fill the case through the uppermost drain port with clean system hydraulic fluid. The case drain line must be connected to the reservoir below oil level. For multiple pump arrangements that include non-PVE sections, the requirements of the non-PVE units must also be considered.
Mounting
Eaton Hydraulics recommends these PVE series piston pumps be mounted horizontally.

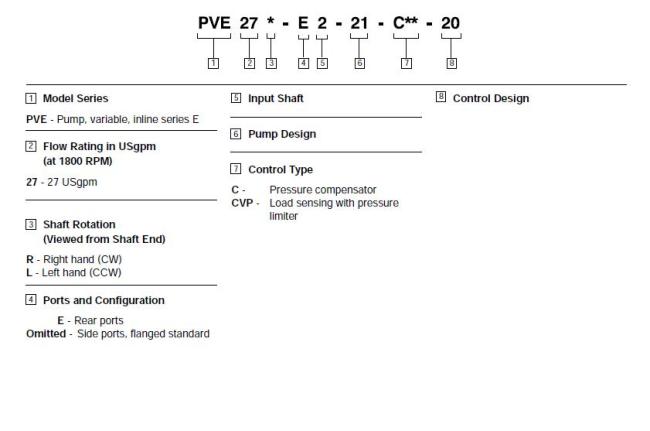

Eaton PVE27 piston pumps ordering code:
Eaton PVE27 series piston pumps model number list:
| 875819 | PVE27-G5L-875819 |
| 500777 | PVE27L-10D-22-C21V17-21-018 |
| 500777 | PVE27L-10D-22-C21V17-21-018 |
| 567596 | PVE27L-1-22-C25-21 |
| 939856 | PVE27L-1-22-C25V-21 |
| 877247 | PVE27L-2-22-C10-21 |
| 522121 | PVE27L-2-22-C20V-21 |
| 939865 | PVE27L-2-22-C25-21 |
| 939861 | PVE27L-2-22-C25V-21 |
| 857745 | PVE27L-2-22-C28V-21 |
| 877331 | PVE27L-2-22-CM10-21 |
| 631463 | PVE27L-8M-22-C19V17-21-011 |
| 568030 | PVE27L-A1-22-C25V-21 |
| 864260 | PVE27L-A2-22-C21V-21 |
| 875818 | PVE27L-A2D-22-C21-21 |
| 864228 | PVE27L-B1-22-C25-21 |
| 939855 | PVE27L-B1-22-C25V-21 |
| 876306 | PVE27L-B2-22-C25-21 |
| 939985 | PVE27L-B2-22-C25V-21 |
| 939872 | PVE27L-B2D-22-C25V-21 |
| 876305 | PVE27L-C2-22-C25-21 |
| 500999 | PVE27L-C2-22-C25V-21 |
| 864354 | PVE27L-C2D-22-C25V-21 |
| 939853 | PVE27L-H2-22-C25V-21 |
| 877063 | PVE27L-H8M-22-C19V17-21-075 |
| 689347 | PVE27L-H8M-22-C19V21-21-028 |
| 689347 | PVE27L-H8M-22-C19V21-21-028 |
| 567960 | PVE27L-H8M-22-C19V21-21-051 |
| 02-102170 | PVE27-PVB10R-02-102170 |
| 02-102171 | PVE27-PVB10R-02-102171 |
| 500597 | PVE27-PVE19R-500597 |
| 522132 | PVE27-PVE19R-522132 |
| 876063 | PVE27-PVE19R-876063 |
| 877324 | PVE27-PVE19R-877324 |
| 513852 | PVE27QIL-1-22-C25-21 |
| 567907 | PVE27QIL-1-22-C25V-21 |
| 522148 | PVE27QIL-2-22-C25-21 |
| 864348 | PVE27QIL-2-22-C25V-21 |
| 567930 | PVE27QIL-A1-22-C25V-21 |
| 522230 | PVE27QIL-A2-22-C25-21 |
| 877090 | PVE27QIL-B1-22-CM7-21 |
| 876379 | PVE27QIL-C2-22-C25T12-13 |
| 02-125238 | PVE27QI-PVB20R-02-125238 |
| 876341 | PVE27QI-PVB5R-876341 |
| 857664 | PVE27QI-PVE19R-857664 |
| 876067 | PVE27QI-PVE27QIR-876067 |
| 877350 | PVE27QI-PVE27QIR-877350 |
| 02-126004 | PVE27QIR122C25VT1214 |
| 02-106004 | PVE27QIR122C25VT1214 |
| 876351 | PVE27QIR-1-22-C14-21 |
| 857696 | PVE27QIR-1-22-C16V-21 |
| 857697 | PVE27QIR-1-22-C19V-21 |
| 883017 | PVE27QIR-1-22-C20V-21 |
| 513850 | PVE27QIR-1-22-C25-21 |
| 568011 | PVE27QIR-1-22-C25T18-13 |
| 567786 | PVE27QIR-1-22-C25V-21 |
| 864386 | PVE27QIR-1-22-C25VT18-14 |
| 877219 | PVE27QIR-1-22-C25VT8-14 |
| 876349 | PVE27QIR-1-22-CM10-21 |
| 876350 | PVE27QIR-1-22-CM12-21 |
| 875908 | PVE27QIR-1-22-CM5-21 |
| 864208 | PVE27QIR-1-22-CM7-21 |
| 02-102008 | PVE27QIR-1-22-CM8-21 |
| 857718 | PVE27QIR-1N-22-C25V-21 |
| 567805 | PVE27QIR-2-22-C25-21 |
| 567845 | PVE27QIR-2-22-C25V-21 |
| 567717 | PVE27QIR-2-22-CM7-21 |
| 876078 | PVE27QIR-2D-22-C25-21 |
| 876382 | PVE27QIR-A1-22-C25-21 |
| 567929 | PVE27QIR-A1-22-C25V-21 |
| 864269 | PVE27QIR-A1-22-CM7-21 |
| 864345 | PVE27QIR-A2-22-C25V-21 |
| 02-102254 | PVE27QIR-A2-22-CM7-21 |
| 02-102900 | PVE27QIR-A2D-22-C25-21 |
| 864099 | PVE27QIR-B1-22-C14-21 |
| 857587 | PVE27QIR-B1-22-C14V-21 |
| 864091 | PVE27QIR-B1-22-C25V-21 |
| 502998 | PVE27QIR-B1-22-CM7-21 |
| 883052 | PVE27QIR-B2-22-C25-21 |
| 864456 | PVE27QIR-C1-22-C25-21 |
| 567904 | PVE27QIR-C1-22-C25V-21 |
| 567721 | PVE27QIR-C1-22-CM7-21 |
| 857638 | PVE27QIR-C1D-22-C25-21 |
| 876066 | PVE27QIR-C2-22-C25-21 |
| 876370 | PVE27QIR-C2-22-C25V-21 |
| 875885 | PVE27QIR-C2-22-CM7-21 |
| 522067 | PVE27R-1-22-C14-21 |
| 864147 | PVE27R-1-22-C24VT8-14 |
| 939981 | PVE27R-1-22-C25-21 |
| 876069 | PVE27R-1-22-C25T18-13 |
| 875858 | PVE27R-1-22-C25V18-21 |
| 939854 | PVE27R-1-22-C25V-21 |
| 857652 | PVE27R-2-22-C14-21 |
| 883001 | PVE27R-2-22-C19VT15-14 |
| 522122 | PVE27R-2-22-C20V-21 |
| 939866 | PVE27R-2-22-C25-21 |
| 939862 | PVE27R-2-22-C25V-21 |
| 877325 | PVE27R-2-22-C25VT10-14 |
| 857610 | PVE27R-2-22-C25VT18-14 |
| 876033 | PVE27R-2-22-CM7-21 |
| 857604 | PVE27R-2D-22-C14-21 |
| 857728 | PVE27R-2D-22-C24V-21 |
| 522058 | PVE27R-2D-22-C25-21 |
| 567569 | PVE27R-A1-22-C15V-21 |
| 939857 | PVE27R-A1-22-C25-21 |
| 522263 | PVE27R-A1-22-C25V18-21 |
| 939984 | PVE27R-A1-22-C25V-21 |
| 02-102185 | PVE27R-A1-22-CM7-21 |
| 02-102004 | PVE27R-A2-22-C10-21 |
| 883077 | PVE27R-A2-22-C10-21-079 |
| 02-102015 | PVE27R-A2-22-C18V-21-080 |
| 864428 | PVE27R-A2-22-C23V-21-067 |
| 939986 | PVE27R-A2-22-C25-21 |
| 939983 | PVE27R-A2-22-C25V-21 |
| 500767 | PVE27R-B1-22-C25-21 |
| 567662 | PVE27R-B1-22-C25V-21 |
| 567871 | PVE27R-B1-22-CM7-21 |
| 864198 | PVE27R-B2-22-C25-21 |
| 939880 | PVE27R-B2-22-C25V-21 |
| 522184 | PVE27R-B2-22-C25V-21-046 |
| 500768 | PVE27R-C1-22-C25-21 |
| 864273 | PVE27R-C1-22-C25V-21 |
| 877091 | PVE27R-C1-22-CM7-21 |
| 568079 | PVE27R-C2-22-C25-21 |
| 939982 | PVE27R-C2-22-C25V-21 |
| 567584 | PVE27R-C2D-22-C25V-21 |
