Q345 Steel Structure Frame Warehouse Construction Building For Food Waste Station
Q345 Steel Structure Frame Construction Building For Food Waste Station
1)Product description
Product type: Steel buildings
With a variety of framing systems, we will Value-Engineer a design to meet your specific requirements with the overall cost in mind. At Western, we understand design flexibility is crucial to the success of a project. We can produce a standard box design or provide a completely custom prefab structure with parapet walls, attachment buildings, concrete or insulated panel.
2)Steel buildings material component list
| Main steel frame | Embedded parts | M24/M27/M30 |
| High strength bolt/Common bolt/Turnbuckle/Galvanized bolt | M20 | |
| Steel column(Q235B) | HN(200~500)*200*9*14 | |
| Wind column(Q235B) | HN(198~400)*200*7*11 | |
| Roof truss beam(Q235B) | HN(900-450)*200*8*12 | |
| Tie rod | Ø89/114*3.0 steel bar | |
| Horizontal bracing | Ø20/22/25 steel bar | |
| Column bracing | Ø20/22/25 steel bar | |
| Roof purlin(Galvanized) | C160/180/220*2.0 | |
| Wall purlin(Galvanized) | C160/180/220*2.0 | |
| Connecting plate | 3mm～12mm steel sheet | |
| Structure steel fabrication | ||
| Ancillary material | Acetylene, oxygen, electrode | |
| Resist rust | Sa2.5 | |
| Painting | Alkyd paint | |
| Maintenance | Roof tile | 0.426/0.476mm steel sheet/50~150mm sandwich panel |
| Wall panel | 0.426/0.476mm steel sheet/50~150mm sandwich panel | |
| Gutter | W1000*H2100/W850*H2100 | |
| Sandwich panel door | W5000*H3500 | |
| Aluminum window (thk:1.2mm) | W250*H2000/W1130*H1000/W2000*H1000 | |
| Aluminum window with security mesh(thk:1.2mm) | W500*H500 | |
| Gutter | PVC/Galvanized steel materials | |
| Downpipe | PVC110 | |
| Electric galvanized rolling gate | W5000*H5000(customized size) | |
| Door | Rolling/Sliding/Sandwich panel door W800*H2100(customized size) | |
| Window | PVC/Aluminum sliding window W1100*H1200(customized size) | |
| Trimming | 1.0mm galvanized /steel sheet |

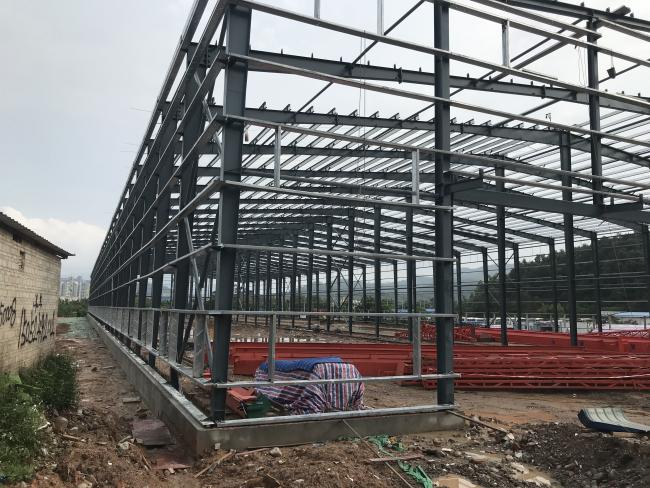

3)Steel Structure Building materials display
4)Steel structure building plans for reference
5)Steel structure building features
Simplify construction with a prefabricated structure. Did you know that Western Steel Buildings are engineered and manufactured essentially as a bolt-together building system? Each hole is carefully punched, each component carefully welded, to complete every system in accordance with the engineered specifications.
6)Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed exhibition hall, agricultural storage, logistic centers etc.
7) Our services
Foreign Trade Order Operation Process
Business personnel of foreign trade experience, according to the different needs of customers, for different customer management, in the process of contact with the customer, must understand the customer's real idea clearly, communicate effectively, avoid unnecessary trouble caused by improper communication!
8)About us
Foshan TianPuAn Building Materials Technology Co., Ltd.(TPA housing), was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel, and profiled steel with ISO9001&SGS certification. We have two production workshops (Lishui town/Gaoming town)with a total area covered 20,000square meter plant and equipped with an automatic spraying line and automatic welding machine.
8)Why choose us
1-Customized design service
2-Quality Assurance Service
*Safety packing
*Insurance services
*Inspection before shipment
3-After-sales service
*Engineer guide on site
*Installation team service
*Email/phone call communication
We would love to achieve longer cooperation with you!
