ISUZU Naked Eye 3D Billboard Mobile Outdoor LED Advertising Truck With Air Conditioner
ISUZU Naked Eye 3D Billboard Mobile Outdoor LED Advertising Truck
Brand New Truck. Direct Sale from LED Truck Manufacturer in China.
Product Descriptions
- What is mobile advertising truck?
- Product Features:
1. Excellent container material, crafted with a composite steel frame. Aluminum-designed non-slip floor.
2. Operated by a diesel/gasoline generator or battery during movement. Can be connected to household power supply while stationary.
3. A large LED display integrated on three sides of the vehicle. Choice to have screens on one or two sides only.
4. Utilizes top-tier LED brand from China, with options for P3/P4/P5/P6 varying high resolutions. Offers greater stability, smoothness, and color vibrancy compared to regular brands.
5. Outdoor waterproof display screen and sound column, impervious to weather conditions, enabling advertising at any time.
6. Additional features include stage options, Midea/Gree air conditioning, screen protection panel, advertising lightbox, etc.
- Do we have any other LED truck?
1. We have FAW,HOWO,ISUZU,FOTON,DONGFENG,SHACMAN,JAC,JMC,KAMA,etc.
2. We can also supply the LED box only if you have your own truck chassis.
- For quick inquiry, please contact Ms.Juniper Gong:
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
Product Parameters
| General Technical Parameters | |||
| Overall Dimension | 5995x2075x2990(mm) | ||
| Gross Vehicle Weight | 4500(Kgs) | ||
| Curb Weight | 4350(Kgs) | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | ISUZU | |
| Cabin | Single row, Left Hand Driving, with A/C | ||
| Engine | Model | 4KH1CN6LB, 4 cylinders | |
| Power | 88KW/120HP | ||
| Emission Standard | EURO V/VI | ||
| Displacement | 2.99L | ||
| Fuel type | Diesel | ||
| Gearbox | Manual type, 5 forward and 1 reverse gear | ||
| Front and Rear Axle load | 2.5T/4.8T | ||
| Wheel base | 3360(mm) | ||
| Brake System | Air brake or Oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Fuel tanker capacity | 120L | ||
| Maximum speed | 98(km/h) | ||
| Superstructure | |||
| LED screen | Pixel | Outdoor full colour display screen | |
| Optional for P3/P4/P5/P6 full color screen or monochrome screen | |||
| LED Screen Dimension(LxW) | Left/Right side: 4160x1920mm | ||
| Rear:1760x1920mm | |||
| Description | Waterproof, High temperature resistance | ||
| General Configuration | 1. China famous OUMA brand 15kw silent diesel generator | ||
| 2. Industrial computer system | |||
| 3. 40W speaker x 4 units, public amplifier x 1 unit | |||
| 4. Internal and external electrical control switch | |||
| 5. Ventilation fan x 3 units and emergency exit x 1 unit | |||
| 6. 5CM composite steel frame body | |||
|
7. Aluminum checked floor |
|||

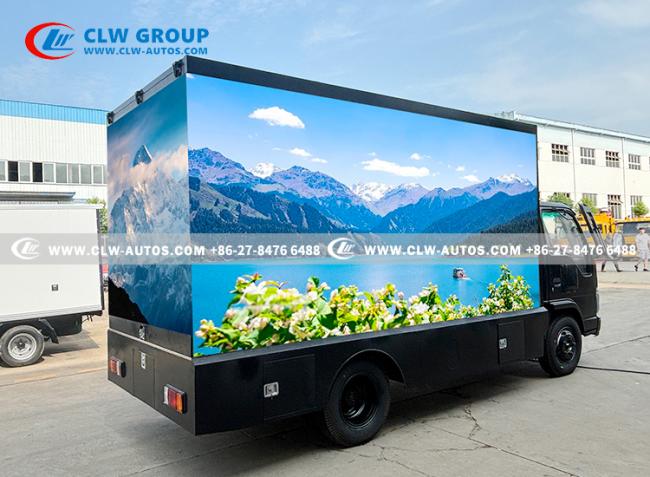

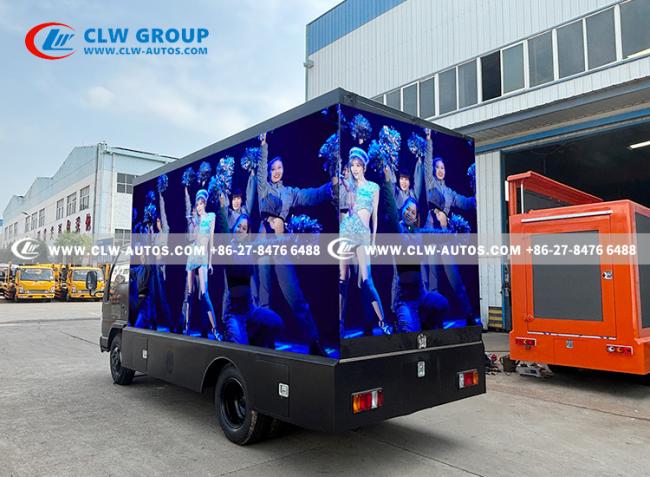

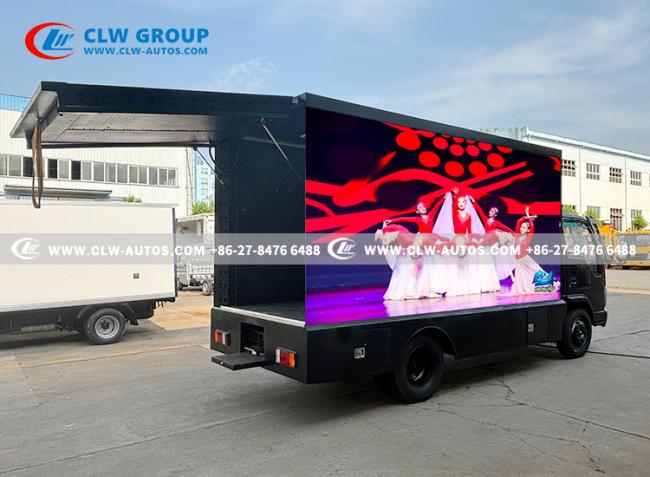

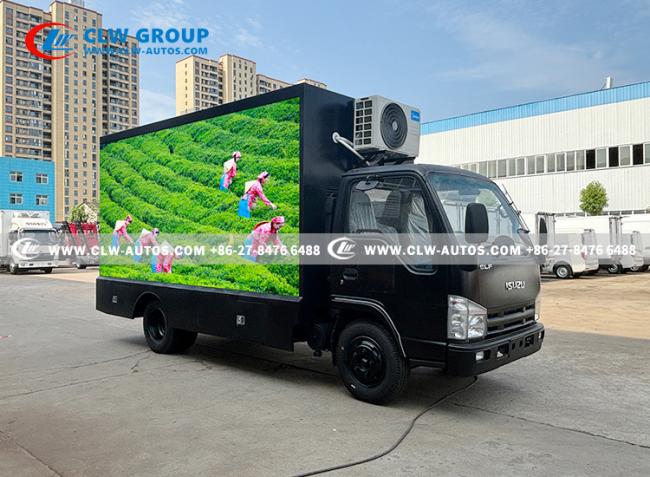

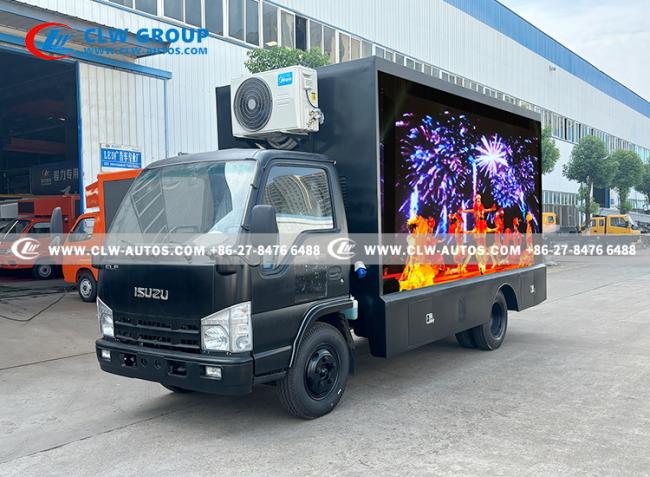

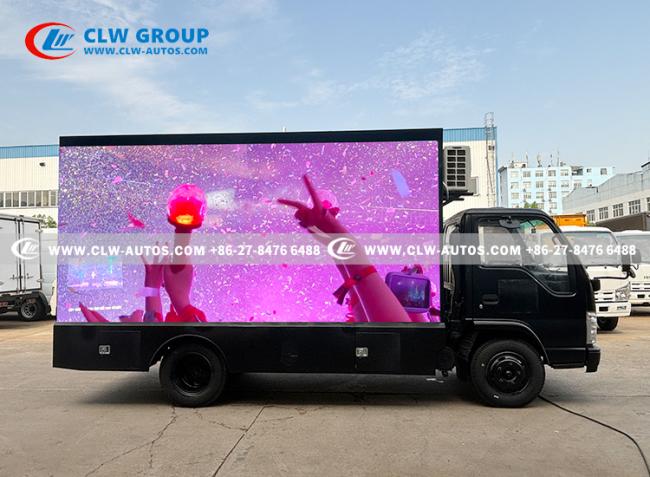

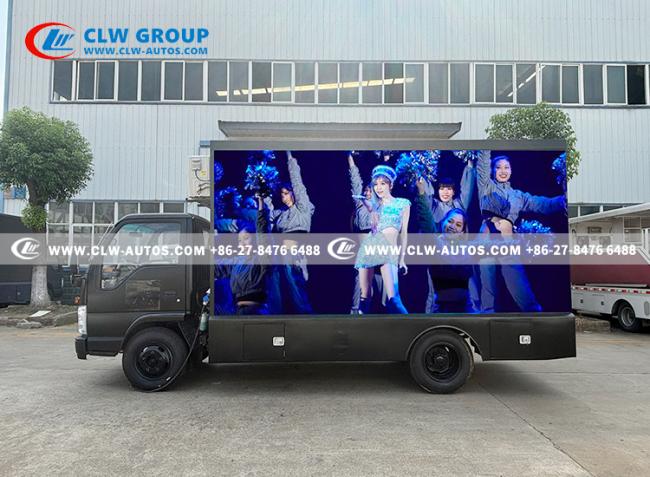

Product Pictures
