FAW J6P 8×4 Heavy-Duty Rotator Wrecker Tow Truck with 50-Ton Crane and 360° Rotation
Price:
Negotiable
MOQ:
1 UNIT
Delivery Time:
20-30 Days
Brand:
CLW
Product Description
FAW J6P 8*4 Heavy-Duty Rotator Wrecker Tow Truck with 50-Ton Crane and 360° Rotation
The FAW J6P 8*4 50-ton rotator wrecker tow truck is a top-tier heavy recovery solution engineered for the most demanding towing, lifting, and accident recovery operations. Built on the proven FAW J6P heavy-duty chassis, this vehicle integrates a 360-degree rotating rotator wrecker with a 3-stage telescopic boom crane, delivering exceptional performance, stability, and operational flexibility.
Designed for highway emergency rescue, heavy equipment recovery, and industrial lifting tasks, this unit serves as a multi-functional heavy recovery command vehicle for professional towing companies and government rescue departments.
Product Overview
This heavy-duty recovery truck combines towing, lifting, rotating, and winching into a single powerful platform. The 8*4 drivetrain ensures outstanding load-bearing capacity and stability, while the integrated rotator and crane system allows operators to handle complex recovery scenarios without repositioning the truck.
Whether recovering overturned semi-trailers, disabled buses, or heavy construction machinery, this FAW J6P wrecker delivers reliable and efficient performance.
Key Specifications and Functional Systems
FAW J6P 8*4 Heavy-Duty Chassis
- Equipped with XICHAI CA6DM series diesel engine, up to 390HP
- High torque output ensures strong traction and hydraulic power supply
- Reinforced frame structure designed for extreme recovery loads
- 8*4 axle configuration provides superior balance and stability during lifting and winching
- Suitable for legal heavy payload and long-distance operations
50-Ton 360-Degree Rotator Wrecker System
The rear-mounted 50-ton rotator wrecker is the core recovery system of this vehicle.
Key Features:
- Rated recovery capacity: 50 tons
- Continuous 360° hydraulic rotation, enabling pulling from front, rear, or sides
- Ideal for confined spaces such as tunnels, urban roads, and accident scenes
- Eliminates the need to reposition the truck during complex recoveries

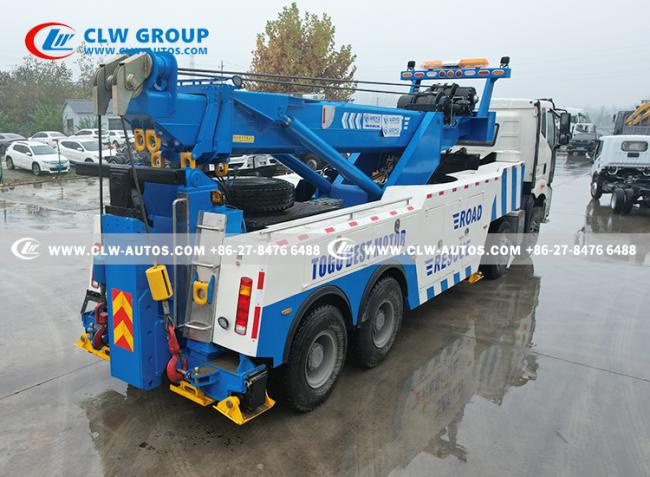

Main Components:
- Heavy-duty telescopic main boom with auxiliary jib
- Multiple hydraulic winches (main winch up to 50 tons, auxiliary winches optional)
- High-strength steel wire ropes with large capacity
- Front, rear, and side hydraulic outriggers for maximum operational safety
3-Stage Telescopic Boom Crane (360° Rotation)
Mounted behind the cab, the 3-stage boom crane adds powerful lifting capability.
- Three-section telescopic boom design for extended working radius
- Full 360-degree crane rotation for all-direction lifting
- Crane lifting capacity typically 10-20 tons, depending on boom extension
- Compact retracted length for easy transport
Crane Applications:
- Loading and unloading heavy equipment
- Lifting damaged vehicles during recovery
- Handling industrial machinery and infrastructure components
Integrated Multi-Point Recovery System
The true advantage of this vehicle lies in the combination of the rotator and crane:
- Crane lifts and stabilizes overturned vehicles
- Rotator applies controlled pulling force from optimal angles
- Enables precise, safe, and efficient multi-direction recovery
- Significantly reduces on-site operation time and risk
Typical Applications
- Highway accident recovery (semi-trucks, buses, multi-vehicle crashes)
- Emergency towing in tunnels and urban roads
- Heavy equipment recovery (excavators, bulldozers, loaders)
- Industrial and factory machinery relocation
- Utility and infrastructure lifting tasks
- Government and emergency rescue operations
Key Advantages
- All-in-One Heavy Recovery Solution - Combines crane and rotator wrecker in one vehicle
- 360° Operational Flexibility - Full rotation for complex recovery angles
- Extreme Recovery Power - Handles up to 50-ton recovery loads
- Outstanding Stability - 8*4 chassis with heavy-duty outriggers
- High Efficiency - Faster accident clearance and reduced manpower requirements
- Professional-Grade Safety - Designed for critical and high-risk operations
Conclusion
The FAW J6P 8*4 50-Ton Rotator Wrecker Tow Truck with 3-Stage Crane represents the highest level of heavy-duty recovery technology. More than just a tow truck, it functions as a mobile heavy rescue platform, capable of handling the toughest recovery challenges in highways, cities, tunnels, and industrial environments.
Technical Specifications
| Condition | New condition/Left hand drive/8x4 |
|---|---|
| Chassis Brand | FAW |
| Model | J6P |
| Curb weight (kg) | 31750 kg |
| Wheelbase (mm) | 1950+4850+1350 mm |
| Dimensions (mm) | 11760*2500*3450 mm |
| Overhang (front/rear) (mm) | 1370/2120 mm |
| Approach/Departure angle (°) | 17/27° |
| Axle Load (kg) | 7500/7500/16000/16000 kg |
| Max. driving speed (km/h) | 80 km/h |
| Clutch | Reinforced diaphragm clutch |
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Tire Number | 12 pcs with one spare tire |
| Tire Specifications | 12.00R20 |
| Transmission | CA10TAX190M, 10 Forwards and 2 Reverses |
| Cabin | It can accommodate three people, With Air conditioner, Central locking, electric windows, ABS |
| Engine Brand | XICHAI |
| Engine Model | CA6DM2-39E3F |
| Displacement (ml) | 11.040L |
| Power (kw)/Horsepower (HP) | 287 kw/390 HP |
| Emission standard | Euro II |
Upper Wrecker Equipment Specifications
| Max. Towing Weight (kg) | 150,000 |
|---|---|
| Max. Lifting Weight (kg) | 28000 |
| Max. Lifting Weight under all extension (kg) | 8300 |
| Effective Length of Corbeling Arm (mm) | 3650 |
| Extend-retract of Corbeling Arm (mm) | 1750 |
| Folding angle under no load (°) | -7~12 |
| Folding angle under load (°) | -7~16 |
| Max. Ground Distance under all extension (mm) | 1835 |
| Max. Hoisting Weight (kg) | 50,000 |
| Max. Hoisting Weight under all extension with 30° Hoisting Angle (kg) | 7800 |
| Max. Hoisting Weight under all retraction with 30° Hoisting Angle (kg) | 18000 |
| Extension Distance of Oil Cylinder (mm) | 6000 |
| Length of Crane Arm (mm) | 5880 |
| Section No. Of Crane Arm | 3 |
| Max. Hoisting Height (mm) | 12300 |
| Max. Working radius (mm) | 10710 |
| Rotate Angle (°) | 360 |
| Winch No. | 2 |
| Capacity | 25,000 |
| Curb Traction/Per (KN) | 250 |
| DN of Steel Rope (mm) | Φ26 |
| Length of Steel Rope (m) | 50*2 |
| Min. Line Speed (m/min) | 5 |
| Make of Winch | Shandong Taian Yiqun Machinery Co.,ltd |
| Front Outrigger Type | "H" type 6600mm |
| Rear Outrigger Type | "L" type 4080mm |
| Jump-start cables | 12~24 Volts |
| Rear working lamp (stop, tail, turning) | 3 |
| Revolving beacon | 1 |
| Lamps for license plate | 1 set |
| Pneumatic hoses | 1 set |
| Remarks | Color is optional |
