FAW J6P Aircraft Refueling Truck with High-Precision Fuel Delivery, Enhanced Safety Protection, and Mobile Refueling Flexibility
Price:
Negotiable
MOQ:
1 UNIT
Delivery Time:
20-30 Days
Brand:
CLW
Product Description

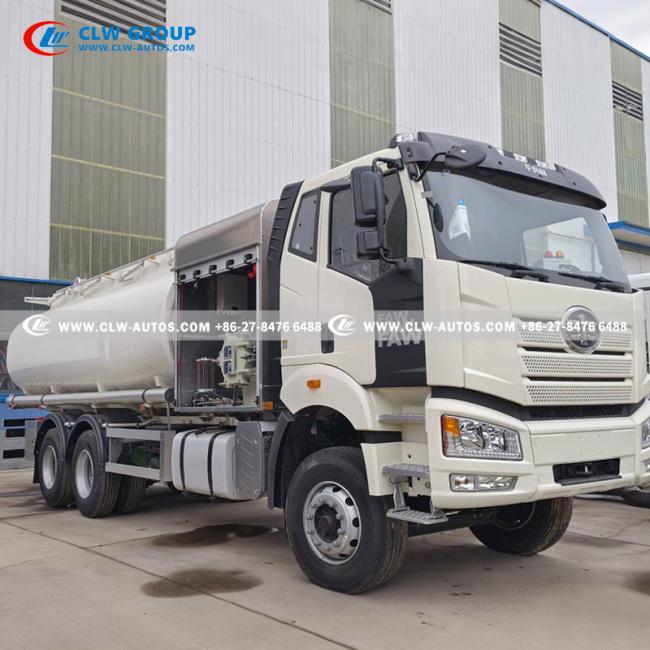

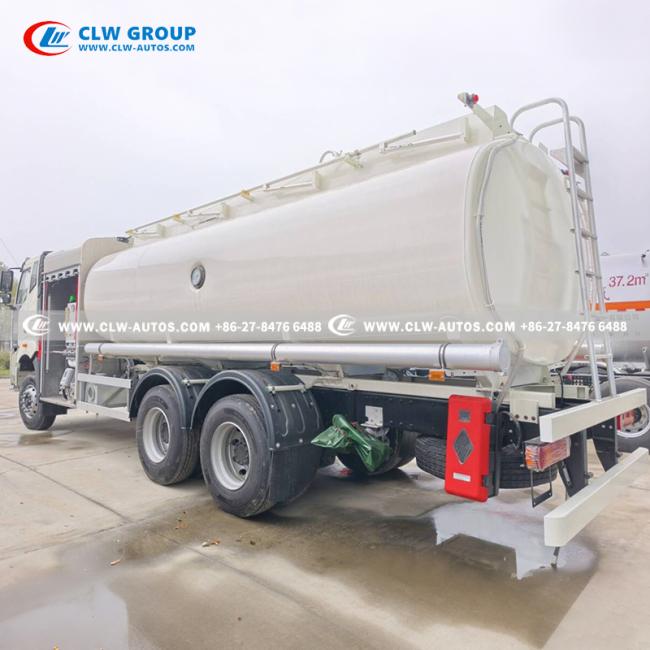

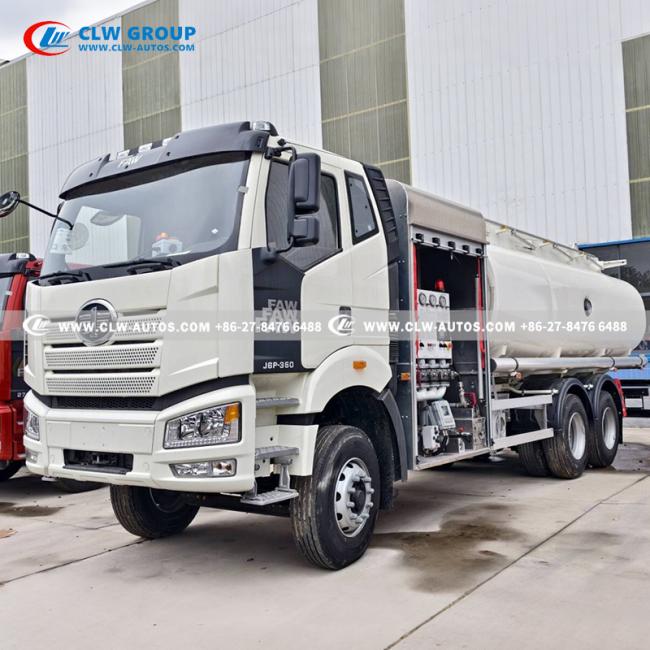

FAW J6P Aircraft Refueling Truck
The FAW J6P Aircraft Refueling Truck is a specialized aviation fuel supply vehicle designed for safe, precise, and efficient aircraft ground refueling. Built on the FAW J6P heavy-duty chassis, it is engineered to support demanding refueling operations across various aviation environments.
The vehicle integrates a high-accuracy fuel delivery system, advanced safety protection devices, and a stable control system to ensure secure handling of aviation kerosene. Its robust construction and intuitive operation make it well suited for modern airport ground support services.
Product Overview
This aircraft refueling truck is suitable for use at civil airports, military airbases, and general aviation facilities. Its mobile fueling capability makes it particularly valuable in locations without fixed hydrant infrastructure, providing flexible and reliable on-site refueling support.

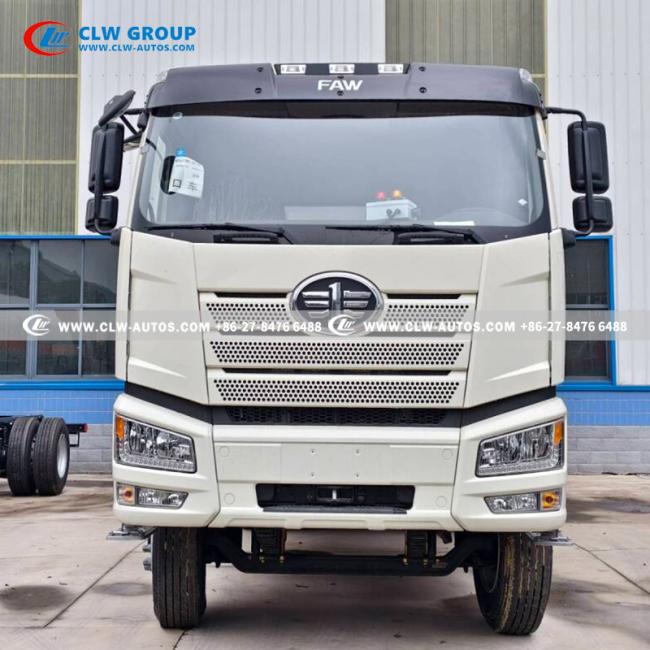

The FAW J6P chassis offers strong load capacity, stable handling, and long service life, ensuring consistent performance under intensive operating conditions.
Key Advantages
- Accurate and Stable Fuel Delivery: High-precision metering and controlled flow ensure compliance with aviation refueling requirements.

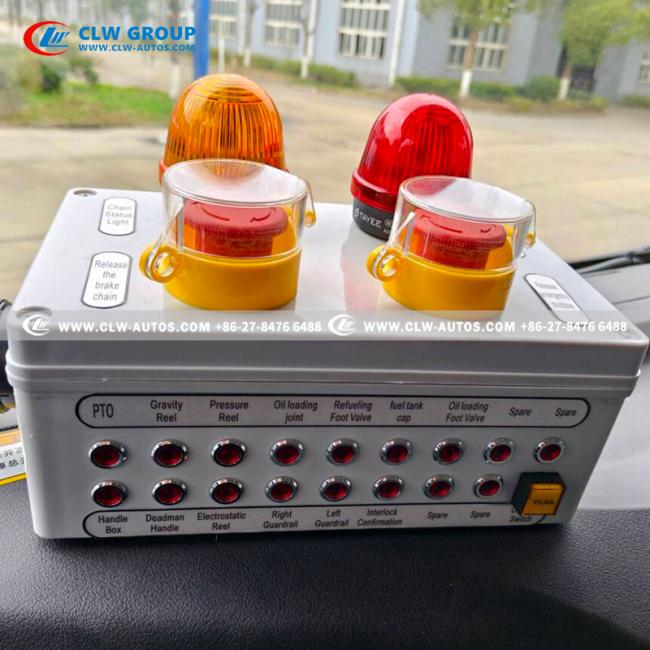

- Enhanced Operational Safety: Multiple safety protection systems reduce risks during fueling and transfer operations.
- Strong and Durable Chassis: Heavy-duty FAW J6P platform ensures stability and reliability in long-term service.
- Operator-Friendly Design: Simplified controls improve efficiency and reduce workload during continuous operations.
- Mobile Refueling Flexibility: Enables aircraft fueling in off-airport, remote, or temporary locations.
Applications
- Commercial Aviation Airports: Supporting efficient turnaround for passenger and regional aircraft.
- Business Aviation and Service Centers: Ideal for FBOs, MRO facilities, and charter operations.
- Defense and Government Use: Suitable for military logistics, transport aircraft, and special missions.
- Remote and Off-Airport Operations: Providing reliable refueling support where fixed hydrant systems are unavailable.
Technical Specifications
Technical Parameters
| Condition | New condition/Left hand drive/6x4 |
| Chassis Brand | FAW |
| Payload | 14650 kg |
| Wheelbase | 4800+1350mm |
| Front/Rear Axle Loading Weight | 7000/18000 kg |
| Dimensions (Whole Truck) | 8540*2500*3680 mm |
| Max. Driving Speed | 80 km/h |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Tire Quantity | 10pcs with one spare tire |
| Tire Specifications | 12R22.5 ou 12.00R20 |
| Fuel Tank Volume | 400 L |
| Transmission | Manual type, 12 Forwards and 2 reverses |
| Steering | Power steering, hydraulic steering with power assistance |
| Cabin | Flat-top extended cab, manual windows, manual rearview mirrors, driver's seat with mechanical shock absorption. It can accommodate three people, With Air conditioner |
| Engine Brand | FAW |
| Engine Model | CA6DL2-35E3F |
| Fuel Type | Diesel |
| Displacement | 8570 ml |
| Power | 261 kw |
| Horsepower | 350 HP |
| Cylinder Number | 6 pcs |
| Emission Standard | Euro 3 |
Upper & Equipment

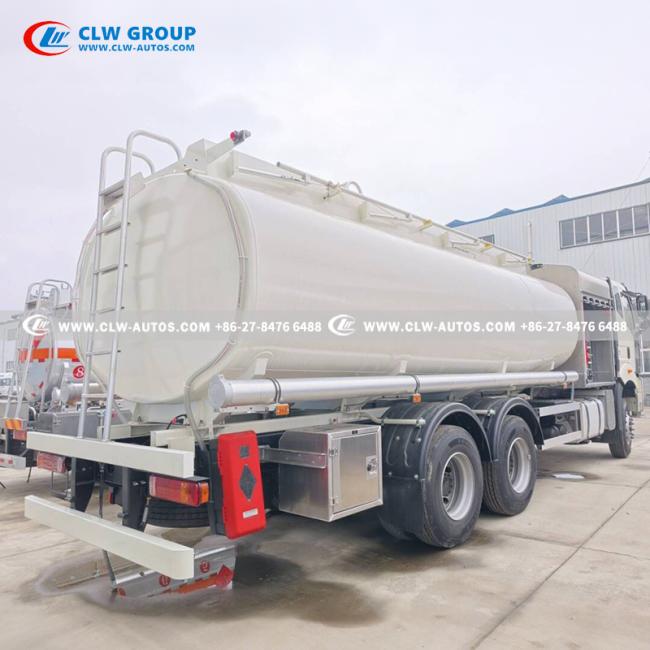

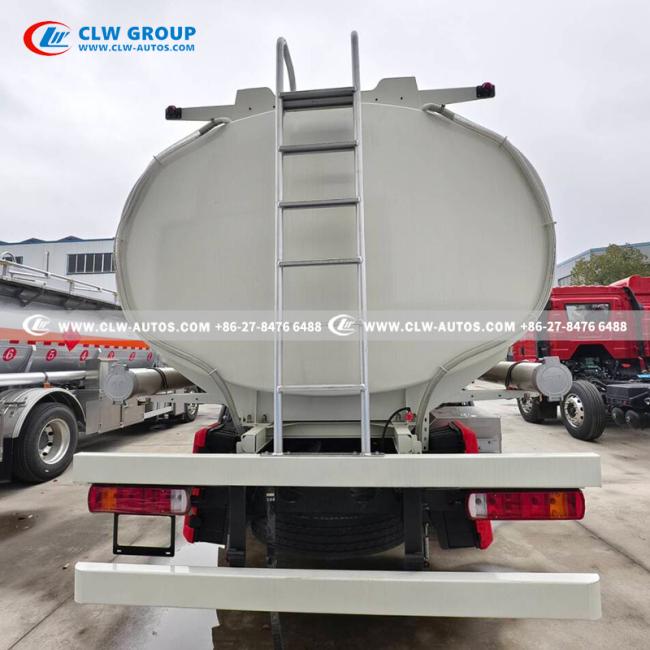

| Fuel Tank Capacity | 20 cbm |
| Tank Material | Aluminium alloy 5182 |
| Compartment Quantity | 1 pcs |
| Filling Medium | Aviation kerosene |
| Piping System | Aluminium alloy 5182 |
| Manhole Quantity | 2pcs |
| Manhole Size | 500 mm |
| Manhole Standard | API |
| Manhole Material | Aluminium alloy |
| Breather Valve Quantity | 4 pcs |
| Breather Valve Material | Aluminium alloy |
| Oil-gas Recovery System | With |
| Overflow Protection System | With |
| Bottom Valve | 1 unit 8inch |
| Tank Body Thickness | 5.6 mm |
| End Cap Thickness | 5.7 mm |
| Baffle Thickness | 5.7 mm |

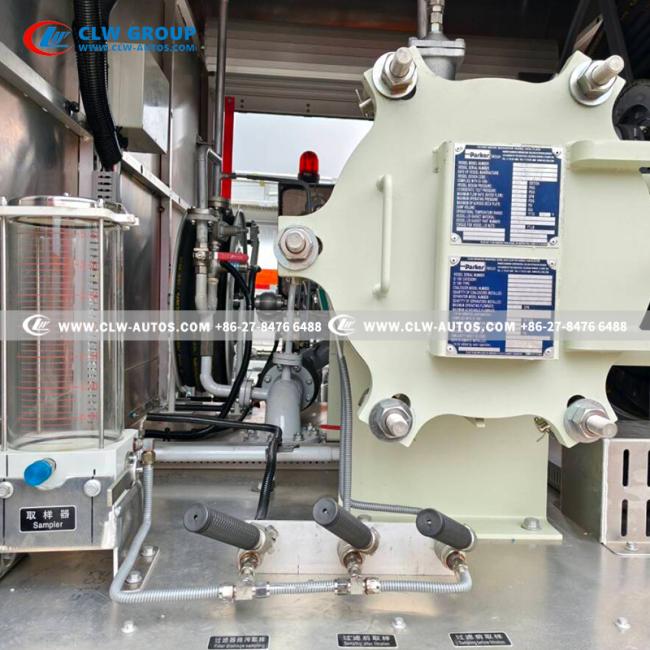

| Filter | China famous brand; Flow rate is 2500L/min |
| Flow Meter | The Precision level is 0.2 level. Flow rate is 2500L/min |
| Centrifugal Pump | Pumping in and pumping out. Flow rate is 2500L/min |

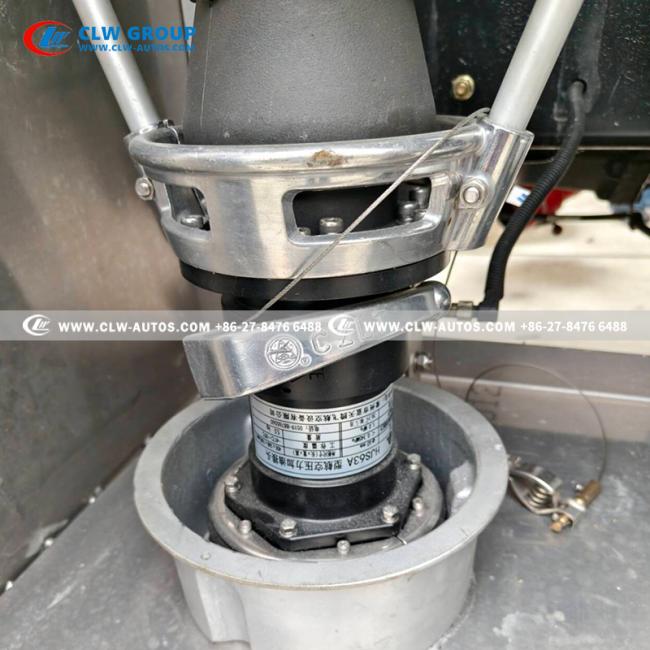

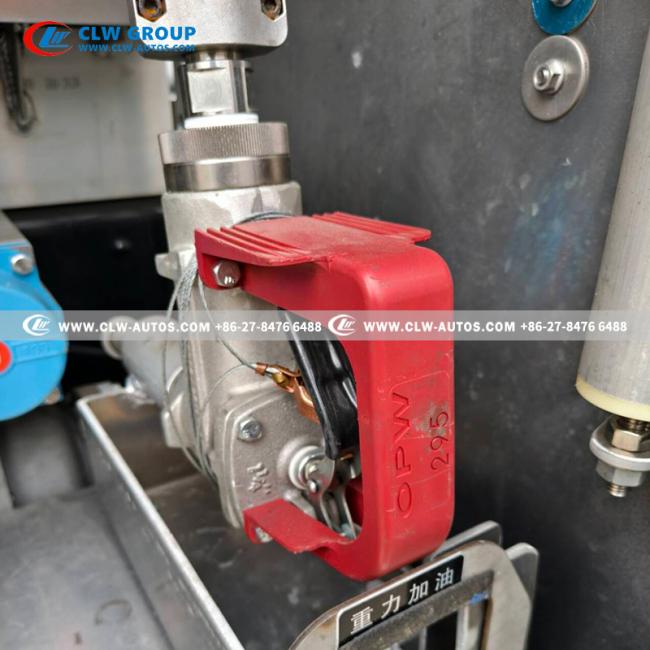

| Filling Nozzle | 1.5inch (DN38) 20m Gravity refueling hose with filling nozzle(≥350L/min) 2.5inch(DN65) 25m Pressure refueling hose with filling nozzle(≥1200L/min) |
| Hose Reel | It is driven by hydraulic motor. The winding/rewinding speed is adjustable |
| Level Gauge | 6 inch floating-ball type level gauge |
Additional Equipment

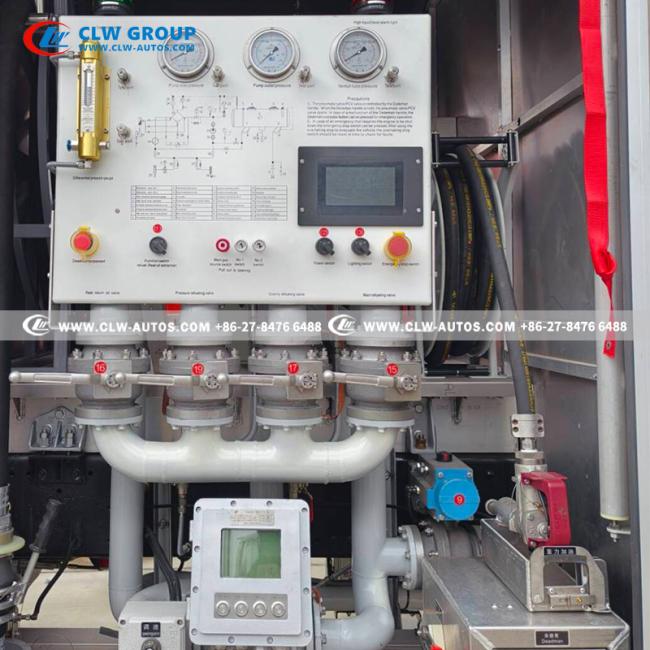

| Differential Pressure Gauge | Equipped |
| Air Eliminator | Equipped |
| Reel Expansion Joint | Equipped |
| In-line Pressure Control Valve | Equipped |

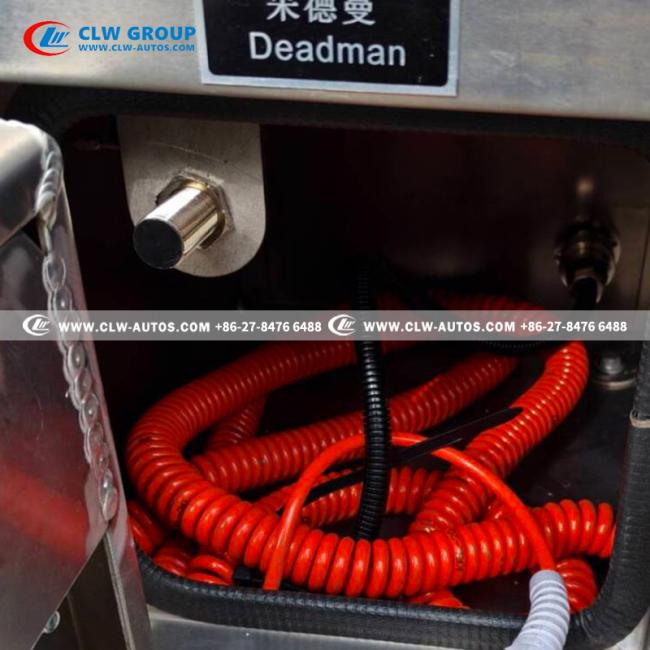

| DeadMan System | Equipped |
| Valve | Equipped |
| Bypass Valve (Overflow Pipe Pressure) | Equipped |

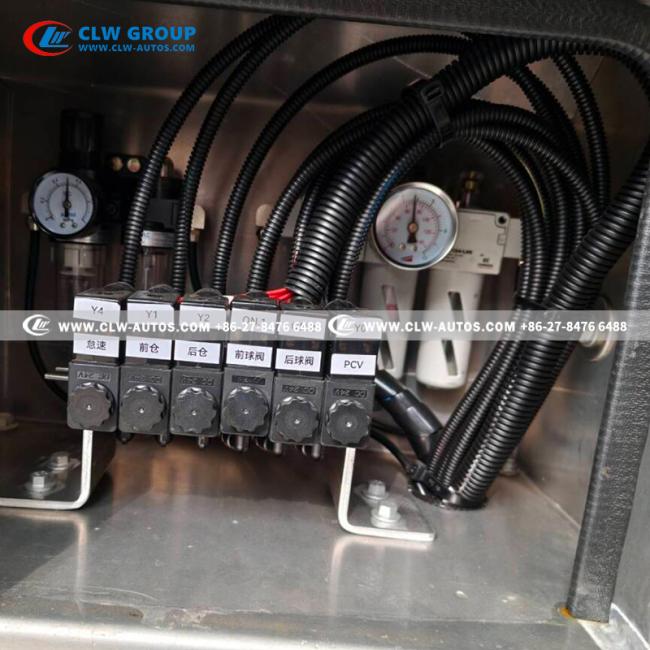

| Pneumatic System | Equipped |
| Dial Gauge | Equipped |
| Main Valve with Venturi Tube | Equipped |
| Swivel Joint Compensator | Equipped |
| Electrostatic Reels | Equipped |
| High Level Sensor | Equipped |
| Straight Through Valve | Equipped |
