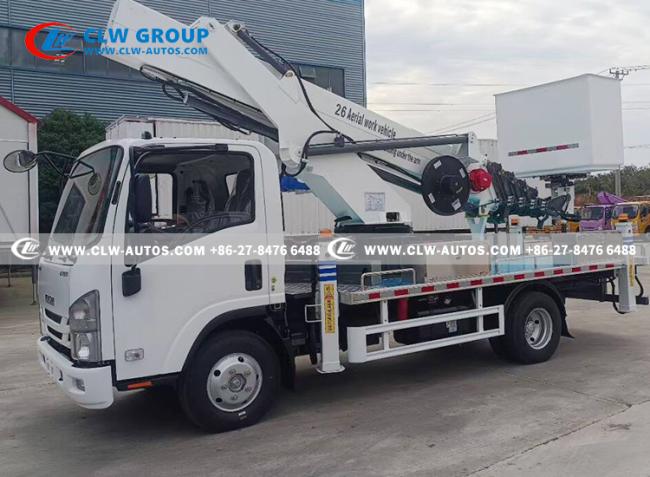

Isuzu KV100 4x2 26-Meter Insulated Aerial Work Platform with 120HP Engine for Live-Line High-Voltage Maintenance
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Isuzu KV100 4x2 26-Meter Insulated Aerial Work Platform – Live-Line Utility Truck with Insulated Basket for High-Voltage Maintenance
Product Overview
Perform safe, efficient live-line maintenance at extreme heights with the Isuzu KV100 Insulated Aerial Work Platform, featuring a 26-meter working height, high-strength insulated basket, and the legendary reliability of the Isuzu KV100 4x2 chassis.
Powered by a fuel-efficient 120HP Isuzu engine with a 3,360mm wheelbase for agile urban maneuverability, this 6-wheel truck eliminates the need for power outages during electrical repairs, significantly reducing economic losses for critical users like factories, hospitals, and data centers. Ideal for utility companies, electrical contractors, and industrial facilities.
Key Features
- Ensures Safety for Live-Line Workers: High-strength insulated basket provides complete ground isolation for safe work on high-voltage power lines without de-energizing
- Improves Work Efficiency and Economic Benefits: Eliminates power outages, reducing preparation time and preventing production interruptions for critical facilities
- Provides Dual Safety Protection: Insulated basket acts as physical barrier against ele-ctric sh-ock, boosting operator confidence and reducing errors
- Copes with Complex Environments and Emergencies: Maintains insulating performance in adverse conditions and prevents escalation of ele-ctric sh-ock incidents
- Isuzu KV100 Agile & Fuel-Efficient Chassis: 3,360mm wheelbase offers excellent maneuverability with 120 HP engine providing optimal power and fuel efficiency
Applications
- Live-line electrical maintenance on high-voltage distribution and transmission lines
- Building exterior construction and maintenance requiring obstacle-overcoming reach
- Municipal facility maintenance including street lighting and traffic signal servicing
- Industrial park and plant maintenance in congested layouts
- Power line inspection for preventive maintenance programs
- Fire rescue support for elevated access during emergency response
- Film production and large-scale events for elevated camera platforms and lighting
Technical Specifications
Chassis Specifications
| Chassis Model | QL104 |
|---|---|
| Driving Model | 4x2 |
| Dimension | 8000 x 2400 x 3500 mm |
| Cab | Original ISUZU KV100 cabin with Air Conditioner, Left Hand Drive |
| Wheelbase | 3360mm |
| Gross Vehicle Weight | 4000 kg |
| Front Axle Loading Capacity | 2500 kg |
| Rear Axle Loading Capacity | 4800 kg |
| Axle Number | 2 |
| Tire | 7.00R16 (6pcs with 1 spare tire) |
| Engine | ISUZU diesel engine, 4 cylinders, Model: 4KH1CN6LB, 120 HP, 2999ml displacement, Euro 6 emission standard |
| Transmission | Model: ISUZU, 5 Forward & 1 Reverse |
| Fuel Tank Capacity | 100L |
Upper Specifications
| Working Platform | Size: 1600 x 700 x 1000 mm, Material: Stainless Steel, Rated Load: 200 kg |
|---|---|
| Boom Form | Synchronization telescope |
| Max. Working Height | 26 meters |
| Outrigger Span | Landscape: 4200 mm, Portrait: 4000 mm (Front "V" type, Rear "H" type, Independently adjustable) |
| Partition Boards & Walkway Boards | Material: Stainless Steel & Anti-slip |
| Rotator | 360° continuous rotation |
| Operation | Electrically controlled operation with manual emergency operation |
| Control System | CAN control system with wireless remote control and stepless speed regulation |
