FAW 10CBM Fecal Vacuum Suction Truck with 260HP Engine and SK-12 Water Ring Pump for Heavy-Duty Waste Management
Price:
20600
MOQ:
1
Delivery Time:
30DAYS
Brand:
CLW GROUP
Product Description
FAW 10CBM Fecal Vacuum Suction Truck for Uganda
FAW 10CBM Vacuum Suction Truck
Special Edition for Uganda - High Performance & Durability
Designed for heavy-duty municipal sanitation and industrial waste management, this FAW-based vacuum truck is a robust solution for the toughest environments. Featuring a high-torque 260HP engine and an industrial-grade SK-12 vacuum system, it is built to deliver efficiency where others fail.
Technical Specifications
| Category | Items | Detailed Parameters |
|---|---|---|
| Vehicle | Model | CLW-FAW Vacuum Sewage Suction Truck |
| Driving Type | 4x2 (Left Hand Drive) | |
| Vehicle | Overall Dimensions | Approx. 7,500 × 2,500 × 3,300 mm |
| Chassis | Chassis Brand | FAW (First Automobile Works) |
| Engine Model | 260 HP (Turbocharged, Intercooled) | |
| Fuel Type | Diesel | |
| Transmission | Manual, 6-speed / 8-speed forward | |
| Tire Specification | 10.00R20 Steel Wire Tires | |
| Chassis | Braking System | Air Brake with ABS |
| Tank Body | Effective Volume | 10 Cubic Meters (10,000 Liters) |
| Tank Material | Q235 High-tensile Carbon Steel (6mm thickness) | |
| Function | Rear door opens hydraulically; Full-tank tipping function | |
| Suction System | Vacuum Pump Model | SK-12 (Water Ring Type) |
| Vacuum Rate | -0.093 MPa (High Vacuum) | |
| Pump Motor Power | 15 kW | |
| Suction Depth | ≥ 8 Meters | |
| Full Suction Time | < 5 Minutes | |

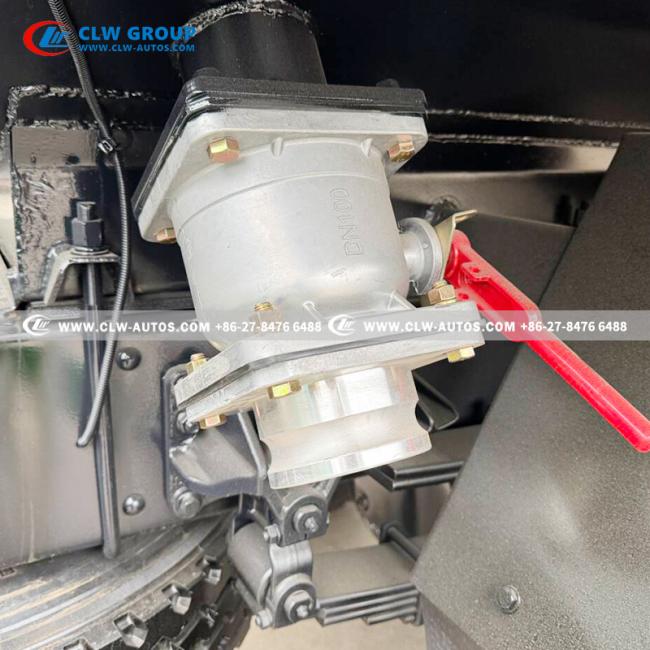

| Equipment | Suction Hose | 8-meter high-quality reinforced hose (DN100) |
| Control System | Manual or Hydraulic control valve (Side mounted) | |
| Safety Device | Anti-overflow valve (Secondary protection) | |
| Customization | Color & Logo | Black (Uganda customized decals) |
Product Gallery
Key Advantages
- Pump Durability: Compared to common oil-cooled pumps, the SK-12 Water Ring Pump is maintenance-free for the vacuum chamber and can operate 24/7 in hot climates.
- Chassis Power: The 260HP engine is oversized for a 10CBM truck, ensuring the vehicle has excellent gradeability (climbing ability) and a longer engine life.
- Heavy-Duty Build: The 6mm tank wall is thicker than the industry standard (usually 5mm), providing better resistance against internal pressure and corrosion.
