HOWO 4x4 Right-Hand Drive Refrigerated Truck with 5.4 Ton Electric Winch
Price:
35600
MOQ:
1
Delivery Time:
30DAYS
Brand:
CLW GROUP
Product Description
HOWO 4x4 Right-Hand Drive Refrigerated Truck with HanXue Refrigeration Unit
HOWO 4x4 off-road chassis, this right-hand drive refrigerated truck is designed for reliable cold chain transport in challenging terrains.
- 4x4 Off-Road Chassis: Built for tough terrains, delivers reliable traction and performance in remote or harsh environments.
- 5.4 Ton Electric Winch: 12,000 lbs heavy-duty winch provides strong recovery capability in off-road conditions.
- High-End Insulated Box: Advanced thermal insulation ensures stable temperature control for temperature-sensitive cargo.
- Aluminum Checker Plate Floor: Anti-slip, corrosion-resistant aluminum floor enhances durability and cargo safety during transport.
Technical Specifications
| Category | Item | Specification / Value | Notes |
|---|---|---|---|
| Truck Type | Vehicle Model | SINOTRUK HOWO 4X4 Refrigerated Truck | Heavy-duty off-road cold chain transport vehicle |
| Driving Type | Driving & Steering Type | 4X4 Full Wheel Drive, Right Hand Drive (RHD) | Full-time off-road chassis, suitable for rugged & remote areas |
| Dimensions & Weight | Overall Dimensions (L*W*H) | 8,995*2,600*3,980 mm | Varies by chassis and box configuration |
| Van Body Internal Dimensions (L*W*H) | 6,640*2,440*2,420 mm | Approx. 39.2 m³ (CBM) cargo volume | |
| Gross Vehicle Weight (GVW) | 18,000 kg | Heavy-duty load capacity | |
| Curb Weight / Rated Payload | ≈7,880 kg / 10,000 kg | Sufficient payload for cold chain cargo | |
| Chassis & Running Gear | Chassis Brand & Type | SINOTRUK HOWO Heavy-duty 4X4 Off-road Chassis | Reinforced off-road suspension, strong terrain adaptability |
| Wheelbase | 5,200 mm | Stable driving structure | |
| Engine Model | MAN MC07.21-50 (Licensed MAN Technology) | Reliable and fuel-efficient | |
| Horsepower & Emission Standard | 210 HP, EURO V / EURO VI | Comply with international environmental standards | |
| Transmission | 10-Speed Manual Transmission | Smooth shifting, suitable for off-road driving | |
| Front/Rear Axle Load | 4.5 Tons / 10 Tons | Reinforced load-bearing axles | |
| Tires | 275/80R22.5 Tubeless Radial Tires | Wear-resistant, anti-skid for off-road conditions | |
| Fuel Tank Capacity | 300L Aluminum Alloy Fuel Tank | Large capacity for long-distance transportation | |
| Off-road Auxiliary Configuration | 5.4 Ton Heavy-duty Electric Winch | Powerful self-rescue & traction capability for harsh terrains | |
| Reefer Box Body | Box Construction | High-end Integrated Sandwich Plate Structure | Hydraulic suction integrated molding, seamless & durable |
| Inner/Outer Skin Material | High-strength FRP (Fiberglass Reinforced Plastic) | Anti-oxidation, corrosion-resistant, easy to clean | |
| Insulation Core Material | High-density PU Foam Insulation | Ultra-low heat conduction, excellent constant temperature effect | |
| Insulation Thickness | 80 mm | Meet deep refrigeration & heat preservation requirements | |
| Cargo Floor | Full Aluminum Checker Plate Anti-slip Floor | Wear-resistant, anti-slip, corrosion-proof, easy to clean | |
| Standard Door Configuration | Rear Double Doors | Stainless steel hinges & lock fittings | |
| Optional Door | Right-side Single Door | Convenient for multi-point loading & unloading | |

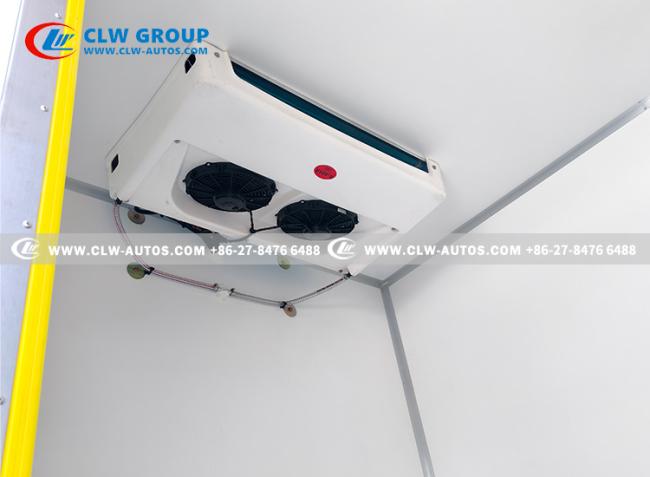

| Refrigeration System | Refrigeration Unit Brand & Model | HanXue Non-independent Refrigeration Unit | Stable performance, cost-effective & energy-saving |
| Unit Type | Engine-driven Non-independent Refrigeration Unit, 24V | Matches truck power system perfectly | |
| Refrigerant Type | R404A | Environmentally friendly & high-efficiency refrigerant | |
| Temperature Range | -18℃ to 0℃ | Suitable for frozen and fresh cargo transportation | |
| Temperature Monitoring System | Temperature Recording & Display Device | Meet global cold chain transportation compliance standards |
Product Gallery
Applications
1. Food Transportation (Chilled and Frozen)
- Frozen Foods: Ice cream, frozen meat (beef, pork, poultry), frozen fish, and seafood. These often require freezer temperatures, which the units are capable of maintaining (e.g., down to −18°C or lower).
- Fresh Produce: Fruits and vegetables that need refrigeration to maintain freshness and prevent spoilage.
- Dairy Products: Milk, cheese, yogurt, and butter.
- Baked Goods & Confectionery: Products like chocolates or other temperature-sensitive items.
- Prepared Meals/Catering Supplies: Ready-to-eat meals and catering equipment requiring temperature control.
2. Pharmaceutical and Medical Transport
- Vaccines and Medicines: Many pharmaceutical products, especially biologicals and vaccines, require strict temperature control, typically in a chilled range (e.g., 2°C to 8°C) to maintain efficacy.
- Biochemicals and Laboratory Samples: Sensitive biological materials requiring precise temperature management.
3. Other Temperature-Sensitive Cargo
- Chemicals and Cosmetics: Certain industrial chemicals or beauty products that must be kept from freezing or overheating.
- Flowers and Plants: Cut flowers and live plants require controlled temperature and humidity to ensure they arrive fresh.
