I-SUZU 13m³ Sewer Cleaning Truck with SK-30S Water-Ring Vacuum Pump
Price:
20000
MOQ:
1
Delivery Time:
30DAYS
Brand:
CLW GROUP
Product Description
I-SUZU 13m³ Combined Vacuum & High Pressure Jetting Sewer Cleaning Truck
This I-SUZU combined vacuum jetting truck integrates high-pressure pipe cleaning and sewage vacuum suction into one vehicle. It is specially built for municipal sewer maintenance, septic tank cleaning, flood drainage and industrial waste sludge transportation.
Key Features
Reliable I-SUZU Chassis
The truck adopts original I-SUZU 4x2 chassis with 4HK1 turbo diesel engine. It has stable power, low fuel consumption and long service life, suitable for long-distance municipal operation. The total mass reaches 18 tons to meet full-load transportation demands.
13 Cubic Meter Split Tank Structure
The tank is divided into two independent sealed compartments. The clean water tank holds 4m³ for high-pressure washing, and the sewage tank holds 9m³ for storing sludge, manure and sewage. The sewage tank can be hydraulically tipped for self-discharging; the rear cover opens fully with mechanical locking wedges to avoid leakage. The tank is made of thickened pressure-resistant carbon steel with reinforcing rings for anti-deformation.
High-Efficiency Vacuum Suction System
Equipped with Yifeng SK-30S water-ring vacuum pump, the pumping capacity reaches 30 m³/min with 8000Pa vacuum degree. A 3-stage anti-overflow protection system (float ball valve + cyclone separator + cooling water tank) effectively prevents liquid backflow and protects the vacuum pump.
High-Pressure Jetting System
Fitted with TONGJIE triplex plunger high-pressure water pump. Working pressure is 220 bar and flow rate reaches 215 L/min. The hydraulic hose reel with rotating boom holds 60 meters of high-pressure hose, which can go deep into underground pipelines to break down grease, sediment and blockages.
Convenient Operation & Safe Control
- 4 groups of PTO pneumatic control switches inside the cab
- Industrial wireless remote control for boom lifting, retraction and rotation
- Manual throttle valve to adjust engine speed freely
- DN65 large-diameter quick-coupling suction ports for fast loading and unloading
- Multiple safety warning devices to control continuous working time and avoid low-temperature operation
Wide Application
Sewer dredging, rainwater drain flood control, septic tank cleaning, portable toilet waste removal, industrial oily sludge and hazardous sewage sealed transportation.
Technical Specifications
| Item | Technical Data |
|---|---|
| Chassis Information | |
| Chassis Model | QL1180JQFR I-SUZU 4x2 |
| Engine Model | 4HK1-TCG60 Diesel Engine |
| Max Power / RPM | 150kW / 2600 RPM |
| Gross Vehicle Weight | 18,000 kg |
| Curb Weight | 5,600 kg |
| Seating Capacity | 3 persons |
| Tank Body | |
| Total Tank Volume | 13 Cubic Meters (13,000 L) |
| Clean Water Tank | 4,000 L, 4mm high-strength carbon steel |
| Sewage Tank | 9,000 L, 6mm pressure carbon steel with reinforcing rings |
| Discharge Mode | Hydraulic tipping + full-open rear door with mechanical locking |
| Suction Port | DN65 quick coupling ball valve |
| Vacuum System | |
| Vacuum Pump Brand & Model | Yifeng SK-30S Water-Ring Vacuum Pump |
| Pump Airflow | 30 m³/min |
| Rated Rotating Speed | 730 r/min |
| Max Vacuum Degree | 8000 Pa |
| Anti-overflow Protection | 3-stage: float valve + cyclone separator + cooling water tank |
| High Pressure Jetting System | |
| High Pressure Pump | TONGJIE Triplex Ceramic Plunger Pump |
| Working Pressure | 22 MPa (220 Bar) |
| Flow Rate | 215 L/min |
| Main Hose Reel | Hydraulic drive with rotary boom, holds 60m × 19mm high-pressure hose |
| Auxiliary Reel | Manual hose reel with washing gun |
| Control System | |
| PTO Control | 4-position pneumatic control panel in cab |
| Remote Control | Industrial wireless remote controller for boom movement |
| Speed Control | Manual adjustable throttle valve |
| Safety Warning | Continuous working time ≤ 50 minutes; no operation below 0℃ |
| Application Scenarios | Septic tank cleaning, sewer maintenance, storm drain cleaning, portable toilet servicing, industrial sludge removal |

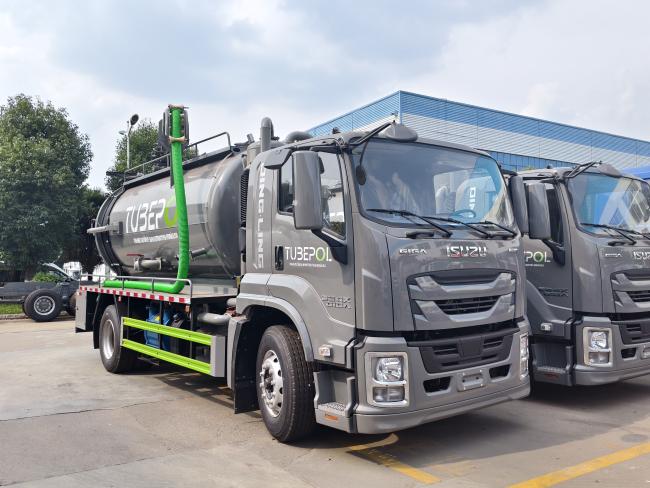

Product Images
Why Choose Our I-SUZU 13m³ Combined Vacuum & High Pressure Jetting Sewer Cleaning Truck?
Superior Tank Manufacturing Quality
The whole tank is made of heavy-duty carbon steel plate by fully automatic welding. The sewage tank is reinforced with external stiffening rings to resist deformation under vacuum pressure. The split double-tank design completely separates clean water and sewage, avoiding cross-contamination. The rear hatch is fitted with multiple wedge-shaped mechanical locks; even under full vacuum, the cover stays tightly sealed without leakage or odour escape. The whole tank can be hydraulically tilted backward, so thick sludge can be dumped completely without manual shovelling.
Three-Stage Anti-Backflow Safety System
- Top-mounted transparent float overflow valve to stop liquid from entering the pipeline in time
- Cyclone water-gas separator to remove water vapour and solid particles
- Vertical circulation cooling water tank with visual level gauge to protect the vacuum pump
This triple protection effectively prevents sewage from flowing backward into the vacuum pump and greatly extends pump service life.
Powerful & Stable Power Matching
The I-SUZU 4HK1 engine provides steady power for both vacuum suction and high-pressure washing. The independent PTO control system allows you to run the suction pump and high-pressure water pump separately or at the same time. The manually adjustable throttle lets you freely control the engine speed to match different working conditions, saving fuel while avoiding overload.
Upgraded High-Pressure Cleaning Assembly
The hydraulic hose reel is equipped with a rotating mechanical arm, so the high-pressure tube can swing left and right without sharp bending. It stores 60m of 19mm high-pressure pipe, reaching deep into underground sewer lines. The three-ceramic-plunger pump delivers strong jet power to break up oil blockages, tree roots and hardened sediment, realizing one-pass dredging without repeated digging.
Humanized Operation Design
- Four groups of pneumatic PTO switches in the cab, easy to switch between driving mode and working mode
- Industrial wireless remote controller to operate boom lifting, stretching and rotating from the ground
- Large DN65 quick-connect suction port, fast pipe connection without complicated tools
- Independent water return pipeline to protect the high-pressure pump from dry running
Strict Operation Safety Rules
Important Safety Guidelines:
- Do not start the high-pressure pump when the clean water tank is empty
- Stop working when the ambient temperature is below 0℃; drain all residual water to prevent pipe cracking
- Continuous operation of the high-pressure pump shall not exceed 50 minutes to avoid overheating
- Always check the air pressure above 8 bar before engaging the PTO
Versatile Business Value
One truck completes two jobs: high-pressure pipeline flushing + vacuum sludge suction. It can handle municipal sewer maintenance, flood drainage, septic tank cleaning, construction waste pumping, and industrial oily sewage collection. One vehicle replaces two separate machines, cutting equipment investment and labour cost. The I-SUZU chassis has low failure rates, so you can take more jobs and earn higher profits.
