I-SUZU 10Ton Refrigerated Truck with 2000KG Hydraulic Tailgate
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
CLW Group
Product Description
I-SUZU 10Ton Refrigerated Truck with 2000KG Hydraulic Tailgate
Our medium-duty refrigerated truck built on reliable I-SUZU chassis is a premium cold chain transportation solution developed for fresh produce, chilled meat, frozen food, dairy and vaccines, fully compliant with national cold transport standard.
Core Matching Configuration
Powerful I-SUZU Chassis
Equipped with 205 high-horsepower engine, stable power output, low fuel consumption and durable mechanical performance. The chassis adopts dual-compressor bracket design, which can simultaneously support the original cab air conditioner and KLH-990D refrigeration unit compressor without disassembling factory parts, avoiding extra modification costs and improving long-term driving stability. It belongs to medium-sized refrigerated truck with cargo box length ranging from 5.1m to 7.7m, available for yellow plate registration, suitable for medium and long-distance cold chain distribution.
KLH-990D Non-Independent Refrigeration Unit
The matching KLH-990D non-independent cooling unit is driven by the vehicle engine compressor, adopting R134A/R404A refrigerant as standard. It realizes precise temperature control inside the cargo compartment, covering multiple temperature zones:
Fresh-keeping zone 2℃~8℃
Fruits, vegetables, beverages, eggs and dairy products
Chilled zone 0℃~2℃
Fresh pork, beef, seafood and poultry
Micro-freeze zone -2℃~-14℃
Cream, cheese and chilled aquatic goods
Deep freeze zone -18℃~-21℃
Ice cream, frozen meat, quick-frozen food
The unit includes complete components: condenser, evaporator, temperature controller, copper cooling pipeline and heat preservation hoses, with automatic temperature adjustment and defrost functions to lock stable internal temperature even under 30℃ ambient temperature.

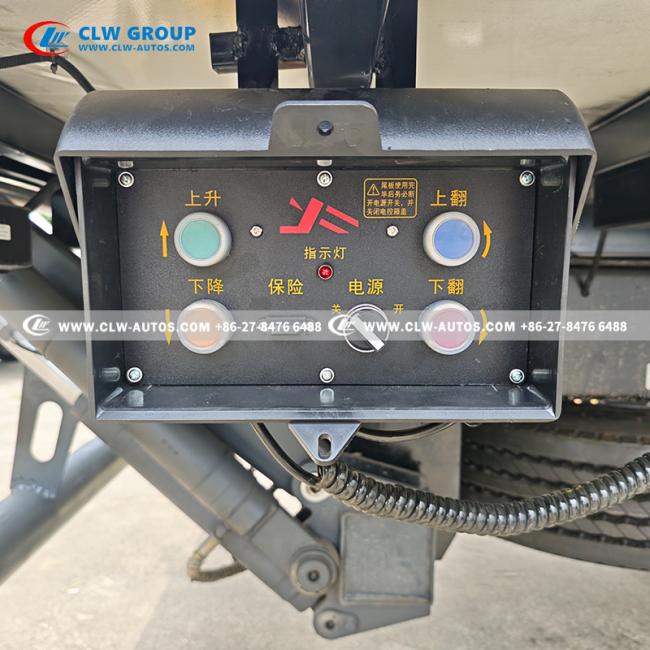

2000KG Heavy-Duty Hydraulic Tailgate
Rear-mounted electric hydraulic tailboard with rated load capacity of 2000KG. It realizes automatic lifting, flipping and leveling without forklift assistance, greatly improving loading & unloading efficiency for heavy cartons of frozen goods and palletized produce. 24V vehicle power supply, anti-rust aluminum alloy panel, stable load-bearing structure to avoid cargo collision damage during handling.
Technical Specifications
| Item | Detailed Specification |
|---|---|
| Vehicle Model | I-SUZU Medium-Duty Refrigerated Truck |
| Chassis Power | 205HP |
| Chassis Type | Medium-sized truck, dual compressor bracket design, 4×2 rear wheel drive, 24V circuit system |
| Applicable Cargo Box Length | 5.1m - 7.7m (Medium cold truck standard size) |
| Refrigeration Unit Model | KLH-990D |
| Refrigeration Unit Type | Non-independent engine-driven refrigeration unit |
| Standard Refrigerant | R134A (0~-5℃); Optional R404A (-15~-21℃) |
| Controllable Temperature Range | 2℃ ~ 8℃ (Fresh fruit & vegetable); 0℃ ~ 2℃ (Chilled meat); -2℃ ~ -21℃ (Frozen food & ice cream); 2~8℃ (Vaccine & medicine) |
| Main Unit Components | Condenser, evaporator, digital temperature controller, copper cooling pipeline, thermal insulation hoses |
| Hydraulic Tailgate Rated Load | 2000KG (2 tons) |
| Tailgate Power Supply | 24V electric hydraulic system, automatic lift & flip function |
| Tailgate Panel Material | Anti-slip aluminum alloy, anti-collision edge protection |
| Insulated Cargo Box Structure | Integrated one-piece molding, 5-panel seamless bolt assembly |
| Box Inner & Outer Material | 3mm matte FRP fiberglass, anti-corrosion & easy maintenance |
| Thermal Insulation Core Material | Special XPS extruded polystyrene board for cold chain transport |
| Box Reinforcement Frame | Wood-wrapped galvanized steel tube, rust-proof & high structural strength |
| Standard Box Floor | Flat FRP anti-slip floor |
| Optional Box Upgrades | Stainless steel checkered floor, bottom air ducts, side ventilation rails, full stainless steel inner wall, temperature separation compartment |
| Optional Auxiliary Equipment | 220V external standby power supply, fuel heating device, dual-temperature refrigeration system |
| Main Application | Fresh fruit & vegetable, chilled meat, seafood, frozen food, ice cream, dairy, vaccine & biological products cold transportation |
| Compliance Standard | GB 29753-2013 Safety Requirements and Test Methods for Road Transport Refrigerated Vehicles for Food and Biological Products |
Premium Insulated Cargo Box
The closed heat-insulating carriage is manufactured with integrated one-time molding process:
- Inner & outer surface: 3mm matte FRP fiberglass, anti-corrosion, easy to clean
- Core insulation layer: High-density XPS extruded board for cold chain, ultra-low thermal conductivity to reduce cold loss
- Reinforcement frame: Wood-wrapped galvanized steel tube skeleton, no rust, integral seamless bolt assembly for excellent air tightness
Optional upgrades: Aluminum alloy ventilation rails, stainless steel anti-slip checkered floor, full stainless steel inner wall, bottom air ducts for uniform cold circulation, dual-temperature partition cabin, 220V external standby power device for refrigeration when parking.
Wide Application Scenarios
- Fresh agricultural products: Apple, grape, leafy vegetables, melons
- Chilled & frozen food: Fresh meat, seafood, ice cream, quick-frozen dumplings
- Medical cold chain: Vaccines, injections, biological reagents (2~8℃ constant temperature)
- Dairy & beverage: Milk, yogurt, fruit juice requiring constant low temperature delivery
I-SUZU Medium Reefer Truck Ready for Cold Chain Delivery
✅ I-SUZU Medium Chassis, 205HP Strong Power, Dual Compressor Bracket
✅ KLH-990D Non-Independent Refrigeration Unit, Multi-Temperature Zone Control
✅ 2000KG Hydraulic Tail Lift, Easy Loading & Unloading of Pallet Goods
✅ Integrated FRP Insulated Box with XPS High-Density Insulation Board
✅ Precise Temp Range: 2℃~8℃ / 0℃~-21℃ for Fruit, Meat, Seafood, Medicine
Perfect for supermarket distribution, farm wholesale, pharmaceutical logistics, frozen food factories!
Custom box size, stainless steel floor, air duct and standby power available on request.
