Oil Dispenser Fuel Delivery Truck Q235 Carbon Steel Material Left Hand Driving
10Ton Fuel Delivery Tank Truck in Dongfeng Kingrun 14m3 Oil Dispenser Tanker Truck
Product Description
- Famous Dongfeng Kingrun Chassis with Cummins Engine & Fast Gearbox
- Good Quality Tank with different capacity for choice: 10,000 liter to 16,000Liters
- API Manhole, Emergency cut-off Valve,
- Optional Bottom Discharge, Vapor Recovery system.
Oil Dispenser Truck:
- Mobile Oil Station Supplying to Trucks & Cars
- Pump, Dispenser, Filling Guns All in Only Unit
- PTO Drive High Efficiency Oil Pump
- Good Quality Oil Dispenser Powered by Truck Electricity
Tanker Capacity:
- 3,000 liters to 40,000 liters Per Customer Request.
Specifications of 10Ton Fuel Delivery Tank Truck in Dongfeng Kingrun 14m3 Oil Dispenser Tanker Truck
| 15 CBM FUEL TANKER DIMENSIONS | |
| Overall Dimension | 8000x2500x3200 mm |
| Gross Vehicle Weight | 18000 kg |
| Curb weight | 7970 kg |
| Loading Weight | 10030 kg |
| Wheel Base | 4700 mm |
| Front/Rear Tread | 1995 / 11820 mm |
| Front Axle | 5,000 kg Elliot type, I beam section |
| Rear Axle | 10,000 kg Single reduction , ratio 5.286 |
| Approach/Departure Angle | 18 / 15 degree |
| Engine | Dongfeng Cummins B190 33, 6-cylinder in line, 4-stroke, Water-cooled, Turbo-charged & inter-cooled, Direct Injection |
| Engine horsepower | 190 HP Euro II |
| Displacement | 5.9 L(Diesel) |
|
Full loading Fuel Consumption Rate |
Maximum 193 g/kW.h |
| Gear Box | FAST 8Forward Gear & 2 Reverse Gear, High and Low Shifting |
| Max Driving Speed | 90 km/h |
| Cabin |
2 Passenger Allowed with 1 sleeper, Left Hand Driving, With Air Conditioner, White color |
| Tire | 11.00-20, 6 pieces with one spare tire |
| Tank Capacity | 14,000 Liters |
| Tank Material | Q235 high tension steel, 5mm thick carbon Steel, With 2 separated compartment, Customized tank color, can also paint customer's logo or advertisement. |
| Main Parts |

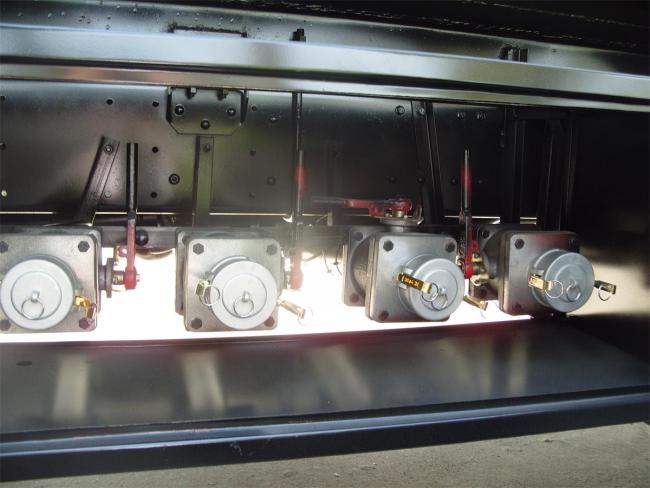

2 Ball Valves in each compartment for gravity discharging. Separated pump system driven by power take office. Oil or water can be sucked into the tank and out of the tank. |
| Specification of Oil Dispenser | |||
| Flow Rate: | 5L/min - 60L/min | Maxmium Allowed Tolerance | +/-0.3% |
| Power: | DC10V-DC30V | Working Temperature: | -20 to 50 ℃ |
| Working Humidity: | 30%-90% | Working Pressure: | 1.8-2.0 Bar |
| Hose Material: | Black Rubber | ||
| Hose Length: | 6 Meter (Length can be longer as per request) | ||
| Digit Display ( Single Filling) |
Unit Price: | 0.00-9.99 L/USD | Volume Unit & Currency can be changed as request, |
| Filling Volume: | 0.00-9999.99 Liters | ||
| Price Amount: | 0.00-9999.99 USD | ||
| Digit Display ( Total Filling) |
Filling Volume: | 0.00-999999.99 Liters | |
| Price Amount: | 0.00-999999.99 USD | ||
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
