30 Ton Propane Fueling Stations , Bulk Propane Storage Tanks 1mm Corrosion Allowance
Price:
negotiable
MOQ:
1 Unit
Delivery Time:
20~30 days after receiving deposit
Brand:
CLW
Product Description

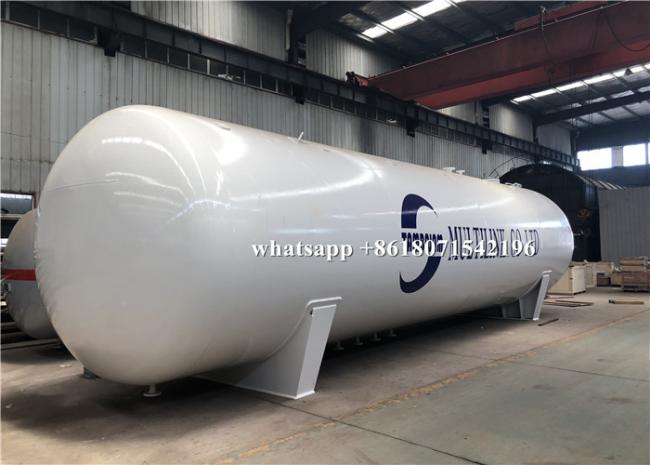

30ton 30tons Propane Gas Tanker 60000 Liters 60, 000L Pressure Vessel 60m3 LPG Storage Tank for Nigeria Market
Product Description
1. Storage medium of filling station gas tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of filling station gas tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of filling station gas tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Specification of 30mt filling station gas tank
| Parameter of 60000liters 30tons filling station gas tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 60cbm | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 10962*2728*3318mm | Tank Net Weight | 12750kg | |||
| Tank Diameter | 2700mm | Loading Capacity | 23940kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN100 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||
Our Service
Quick feedback to solve your questions
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
